October 2012
4-57
ColorQube 8570/8870 Service Manual
REP 3.4, REP 3.5
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision
REP 3.4 Outer Duplex Guide
Parts List on PL 3.1 Item 4
Removal
1. Open the Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove the Left Side Cover (REP 1.10).
4. Remove the Right Side Cover (REP 1.11).
5. Lift and let the Control Panel hang on the right side of the printer.
6. Disconnect the wiring harness connector P/J101 from the I/O Board.
7. Remove the 4 screws (plastic, T-20) that secure the Outer Duplex Guide to the chassis.
8. Lift and remove the Outer Duplex Guide.

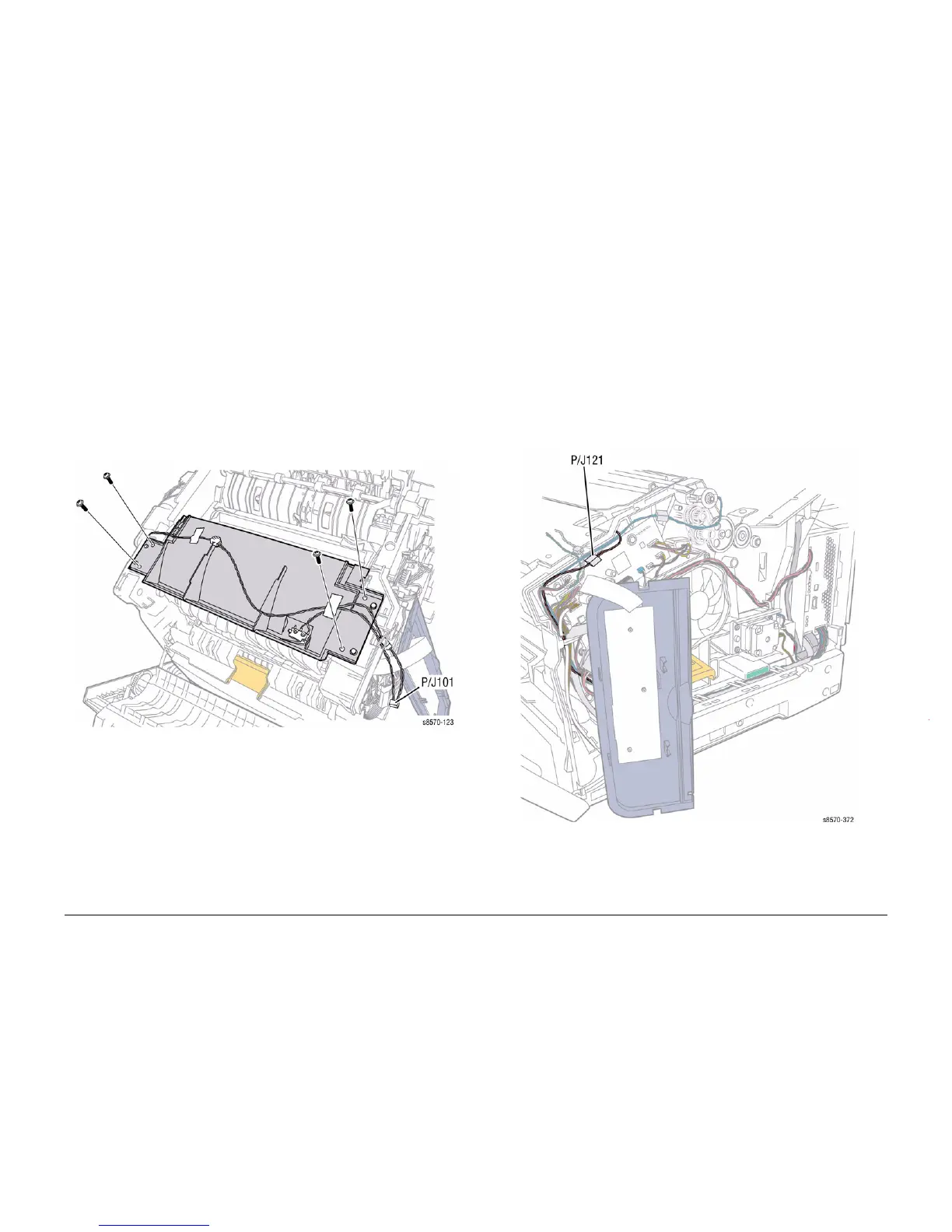

Figure 1 Removing the Outer Duplex Guide
REP 3.5 Upper Duplex Guide and Solenoid
Parts List on PL 3.1 Item 5
Removal
1. Open the Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove the Left Side Cover (REP 1.10).
4. Remove the Right Side Cover (REP 1.11).
5. Lift and let the Control Panel hang on the right side of the printer.
6. Remove the Outer Duplex Guide (REP 3.4).
7. Disconnect the Solenoid wiring harness connector P/J121 from the Right Side Harness.
Figure 1 Disconnecting Wiring Harness Connector from Right Side Harness
