Xerox COLORQUBE 8570 Service Manual

October 2012
4-102
ColorQube 8570/8870 Service Manual
REP 6.7
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
14. Disconnect the Waste Tray Detect Sensor wiring harness connector P/J102 from the I/O
Board.
15. Unlace the Sensor wiring harness from the retainers and guides.
16. Release the hooks that secure the Sensor to the cover and remove the Sensor.

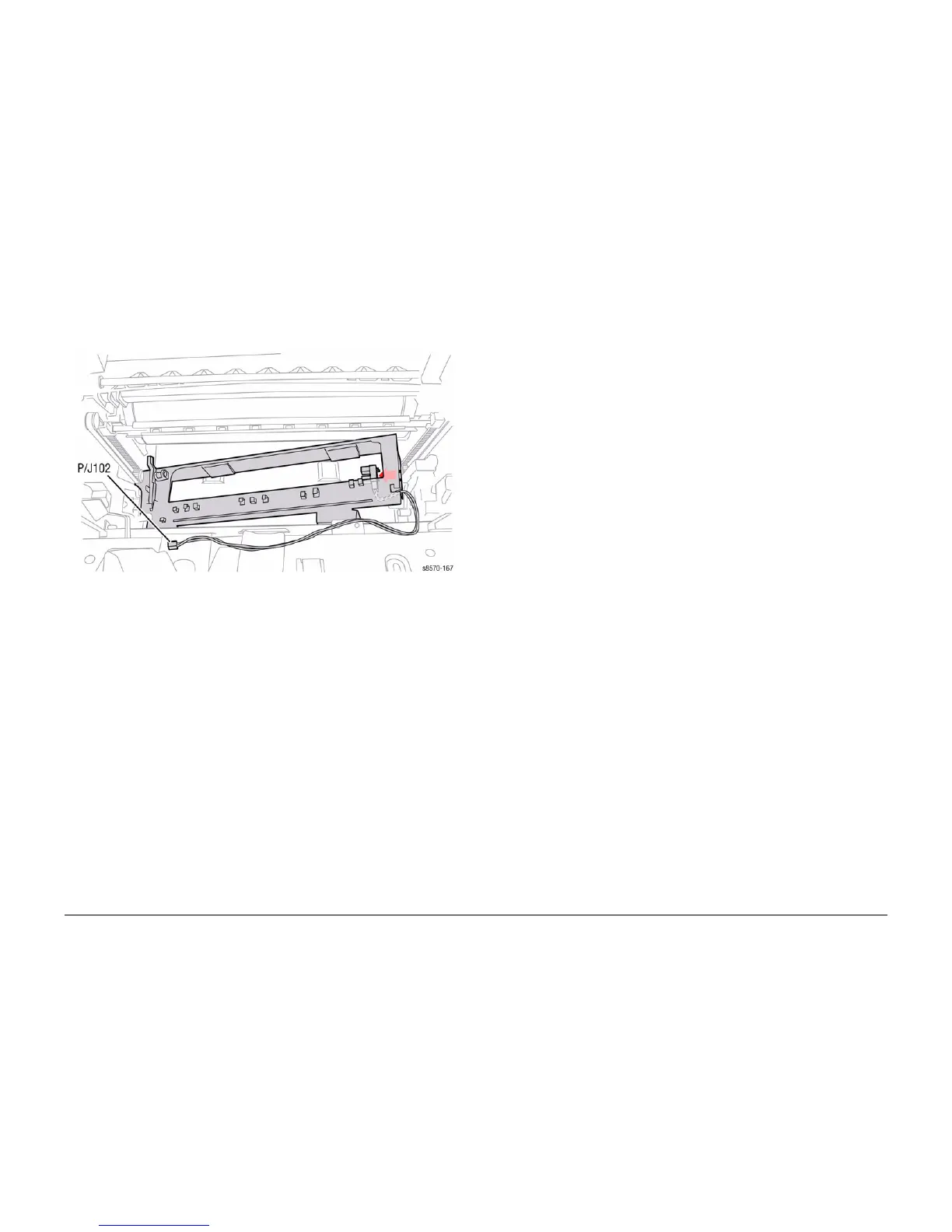

Figure 4 Removing the Waste Tray Detect Sensor
Replacement
Perform the Homing the Printhead Forward to Print Position procedure (ADJ 1.2) and Process
Drive Alignment procedure (ADJ 1.3) before restoring printer power.

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
