Xerox COLORQUBE 8570 Service Manual

October 2012
4-76
ColorQube 8570/8870 Service Manual
REP 4.8
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments

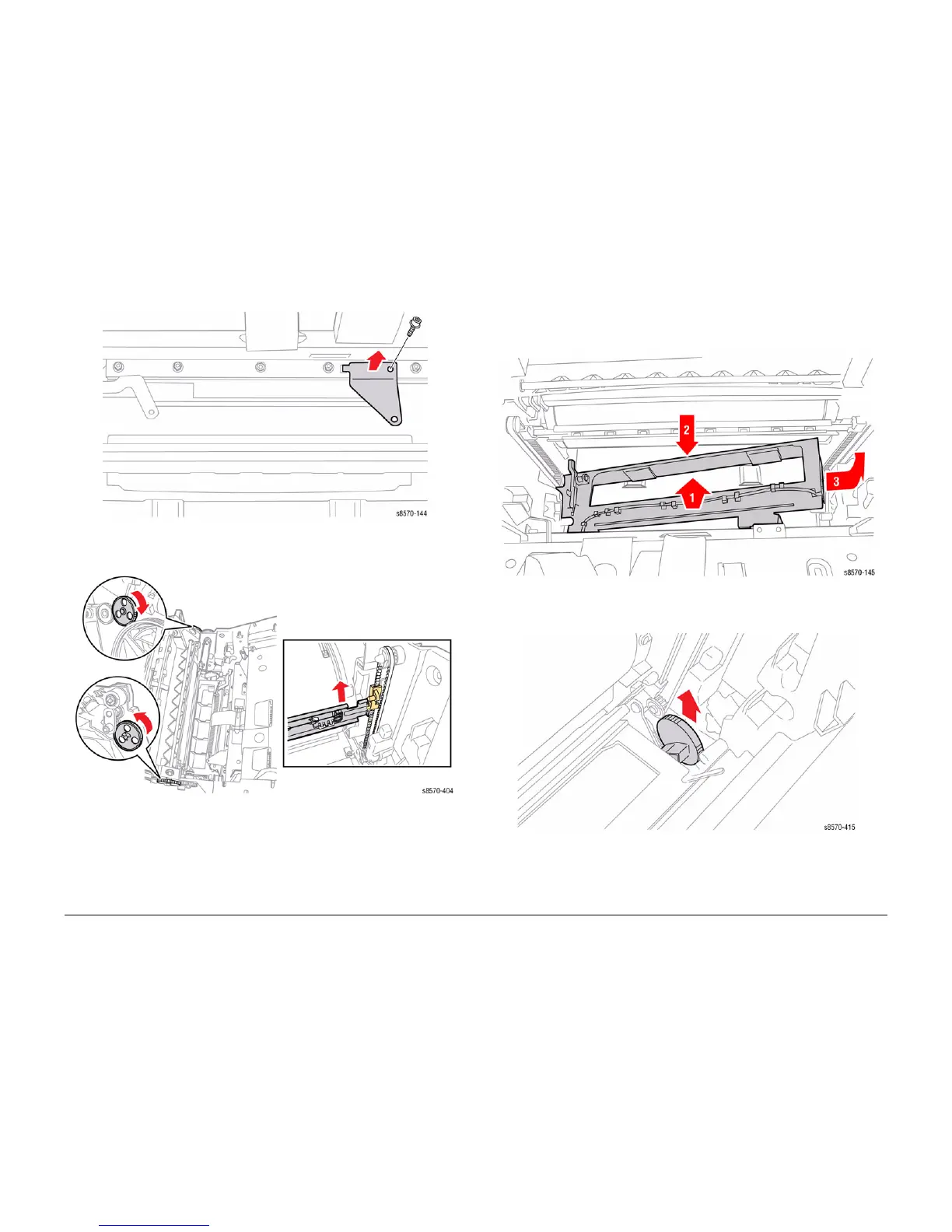

12. Remove 1 screw (metal, T-20) that secures the X-Axis Spring Retainer to the chassis.
Figure 2 Removing the X-Axis Spring Retainer
13. Unlock the Wiper Blade and raise the Wiper Blade to the top of its travel.
Figure 3 Raising the Wiper Blade
14. Remove the Waste Tray Cover without disconnecting the Waste Tray Sensor harness.
a. Lift the center of the cover to release the right side hook.
b. Move the cover towards the back to release the 2 tabs from the chassis.
c. Pull the cover right to release the left hook and position the cover out of the way.
Figure 4 Removing the Waste Tray Cover
15. Reach into the Waste Tray cavity and pull the gear and shaft from the chassis.
Figure 5 Removing the Head Tilt Gear

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
