General Procedures and Information
Phaser 3100 MFP 04/08 6-75

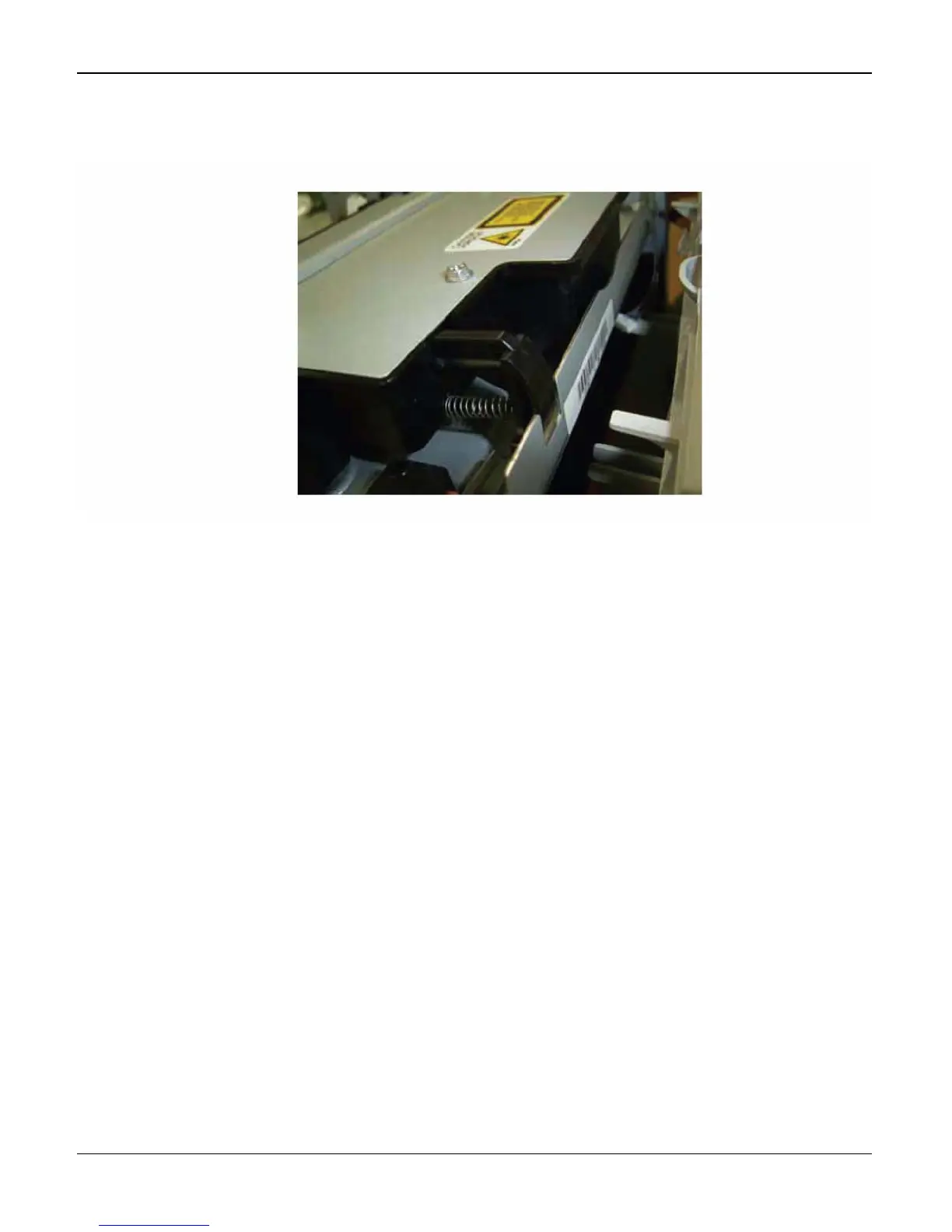

Cover Interlock Switch
Figure3
When the front door is opened, the interlock switch will be opened and power supply to the follow-
ing parts will be cut.
• Power pack
• Laser diode driver
• Fan motor
•Main motor
• Polygon mirror motor
•Fusing lamp
