Repairs and Adjustments
4-12 04/08 Phaser 3100 MFP

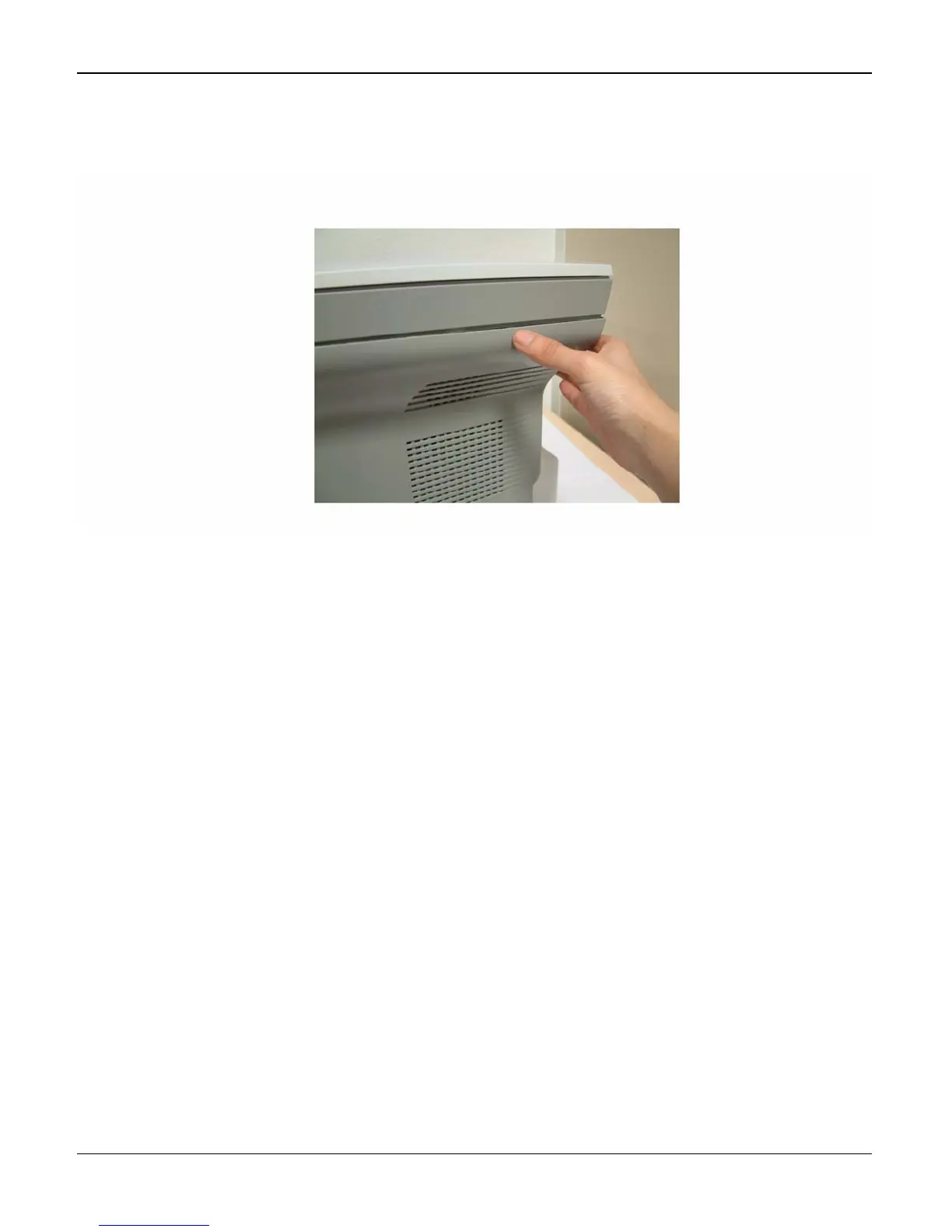

4. Unclip the side covers from the top slots located at the back of the machine and pivot them
towards yourself to remove them, Figure 4.
Figure 4
5. Remove the side covers.
Replacement
1. Replacement is the reverse of the removal procedure.
