Repairs and Adjustments
4-56 04/08 Phaser 3100 MFP
3. Unhook and lift the bottom plate, Figure 3.

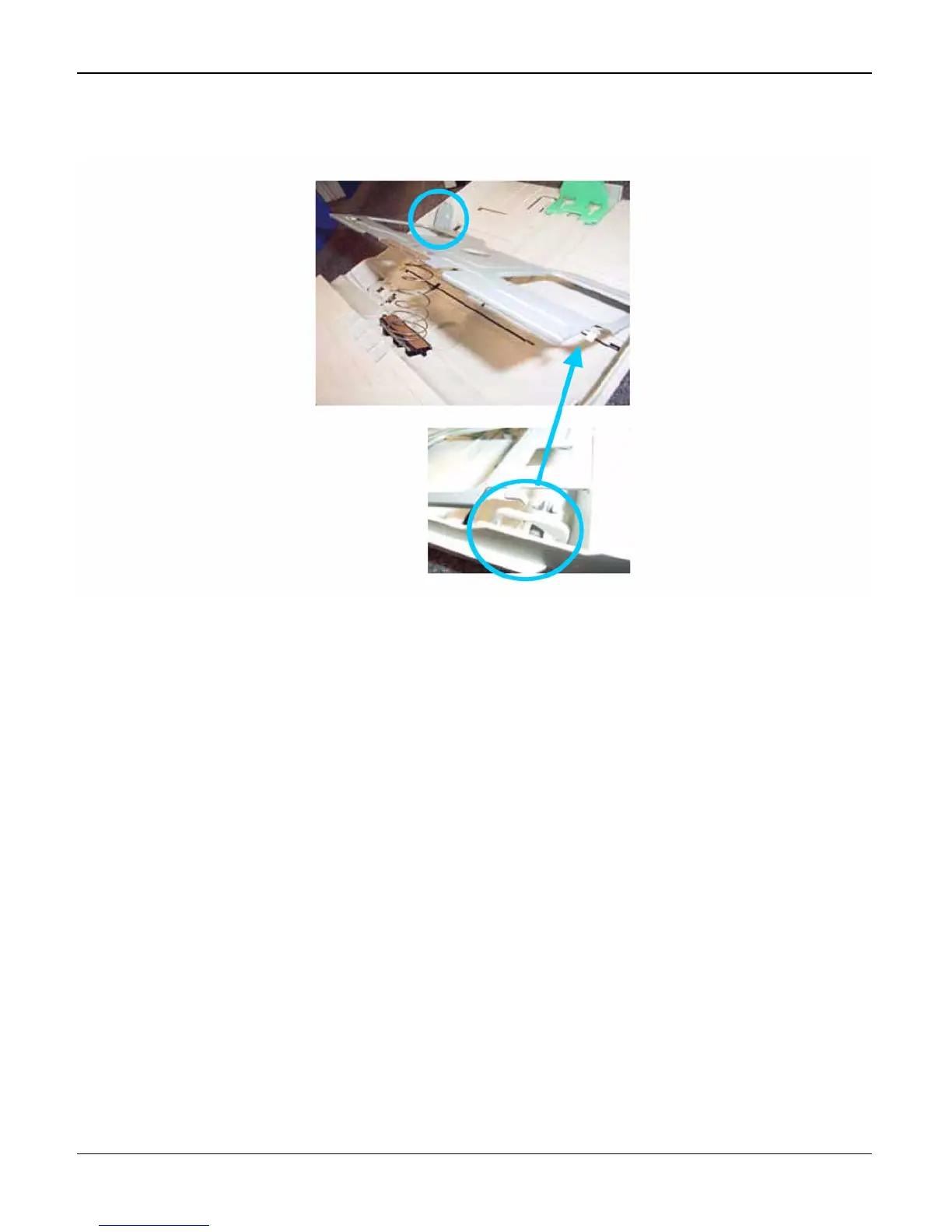

Figure 3
4. Unhook the left pinion gear. Repeat with the right pinion gear.
Bottom Plate
5. Unhook the bottom plate from the pivots pins at both sides of the cassette, Figure 3.
