Repairs and Adjustments
Phaser 3100 MFP 04/08 4-59
Removal

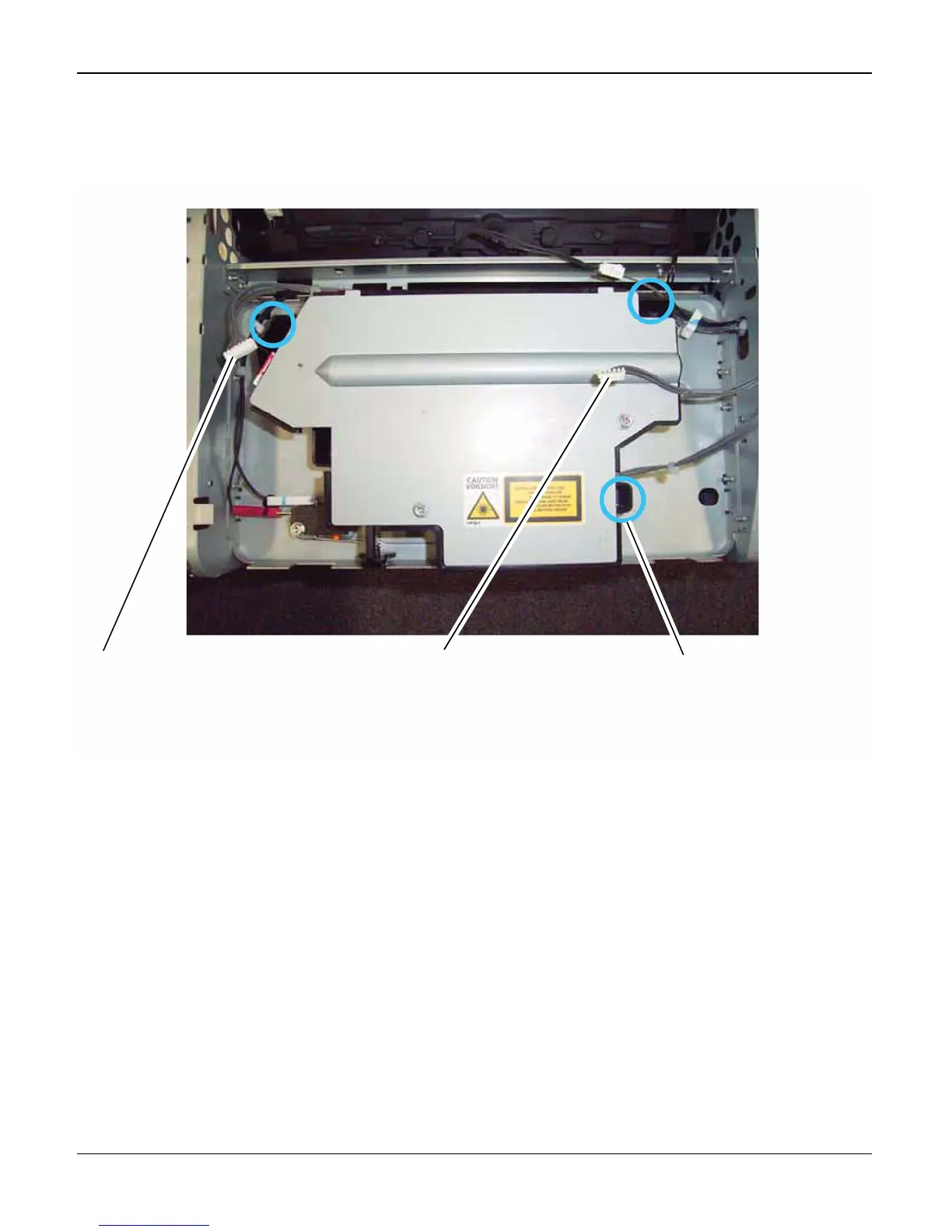

2. Remove the laser unit, Figure 1.
Figure 1
1
Disconnect the laser
diode harness
2
Disconnect the polygon
mirror motor harness
3
Remove 3 screws (circled)
to remove the laser unit
