Xerox WorkCentre 4150 Service Manual

January 2016
4-191
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 14.4
Repairs and Adjustments
9. Remove the CCD module (Figure 6).

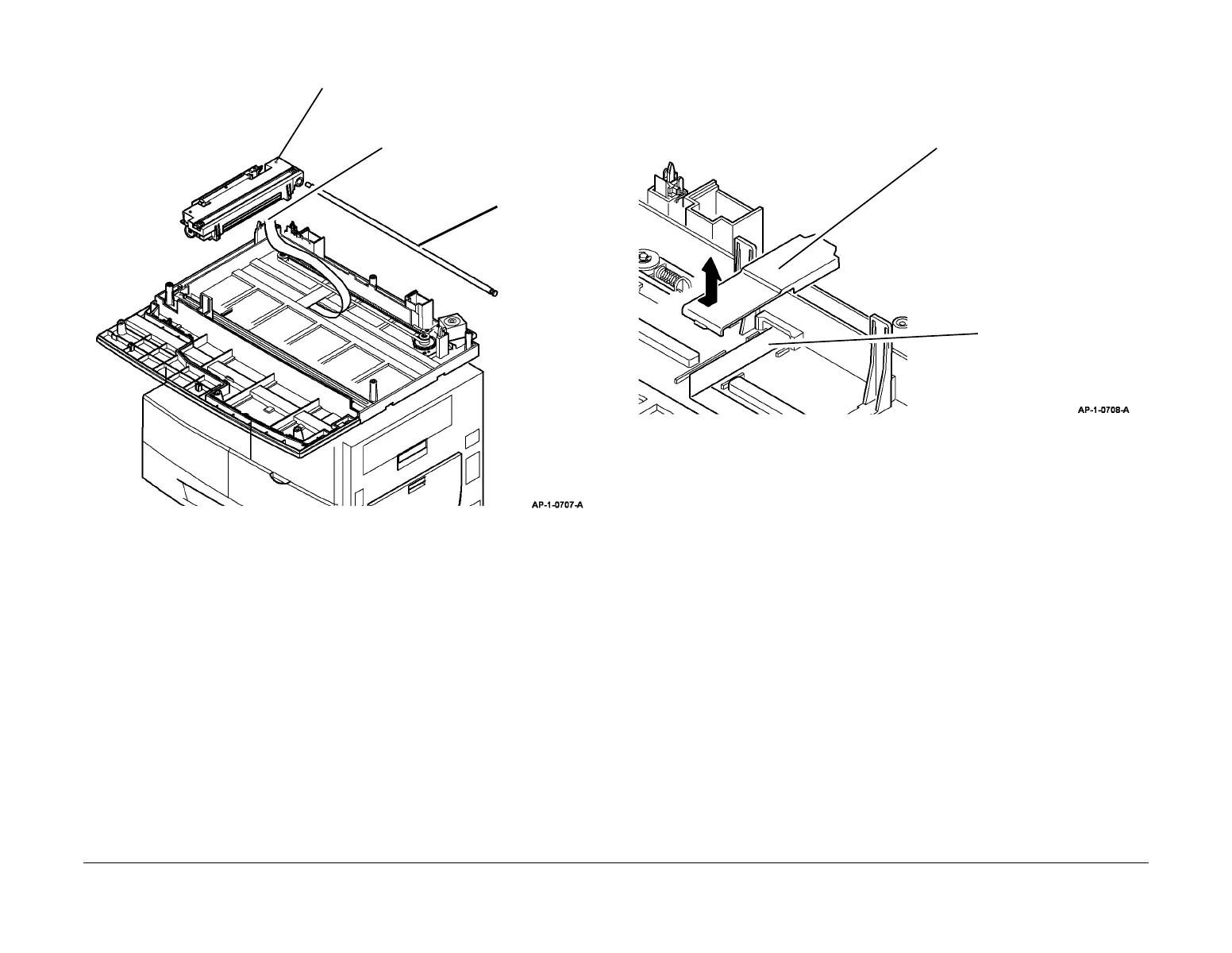

Figure 6 Removing the CCD Module
10. Remove the CCD module ribbon cable:
• For the 4150/4250/4260 (Figure 7)
• For the 4265 (Figure 8)
Figure 7 Ribbon cable removal (4150/4250/4260)
1
Disengage the
right and left
ends of the shaft
from the molded
brackets in the
frame.
3
Release the belt clamp, then remove the
CCD module.
2
Disconnect the CCD ribbon cable.
2
Remove the CCD module
ribbon cable.
1
Remove the ribbon
cable cover.
