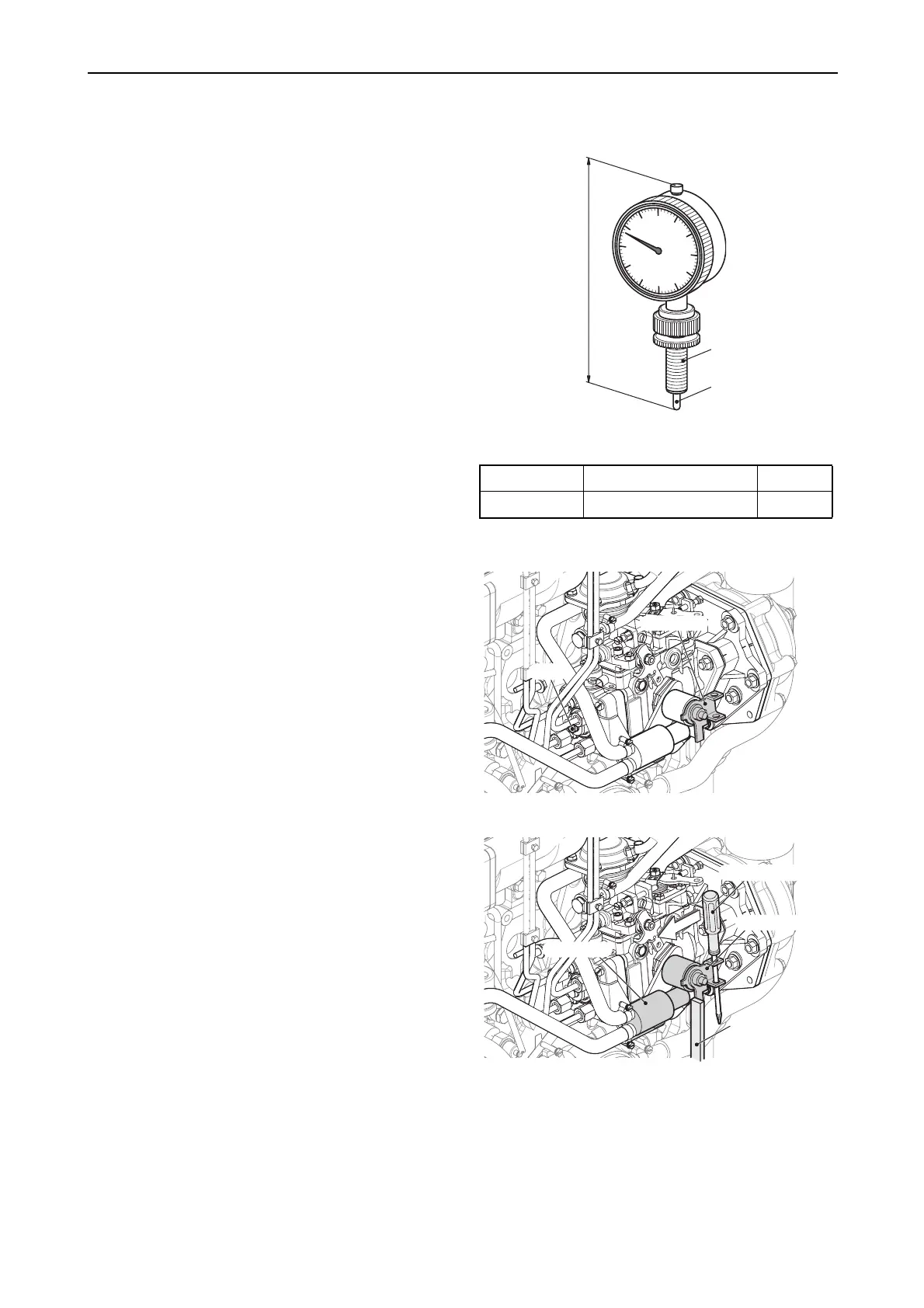

2. Inspection and adjustment
86
1) For the measurement of plunger lift , remove
the plug and gasket of a VE pump and install
a dial gage.
2) Insert a screw driver or a steel bar in the
C.S.D. lever to turn the lever for canceling W-
C.S.D. While turning the C.S.D. lever to the
left, insert the spacer at the top of wax pellet.
Thickness of the spacer is 7.5 ± 0.1mm at the
room temperature of 0-30 degrees C (when
engine is cold).
A
B
C
010426-00X
(mm)
ABC
95.5 M8 x 1.0 ø4
Dial gage
CSD lever
Plug
010424-00E
Wax pellet
Spacer
C.S.D. lever
Screw driver
010423-00E
