5. Inspection and servicing of basic engine parts
184

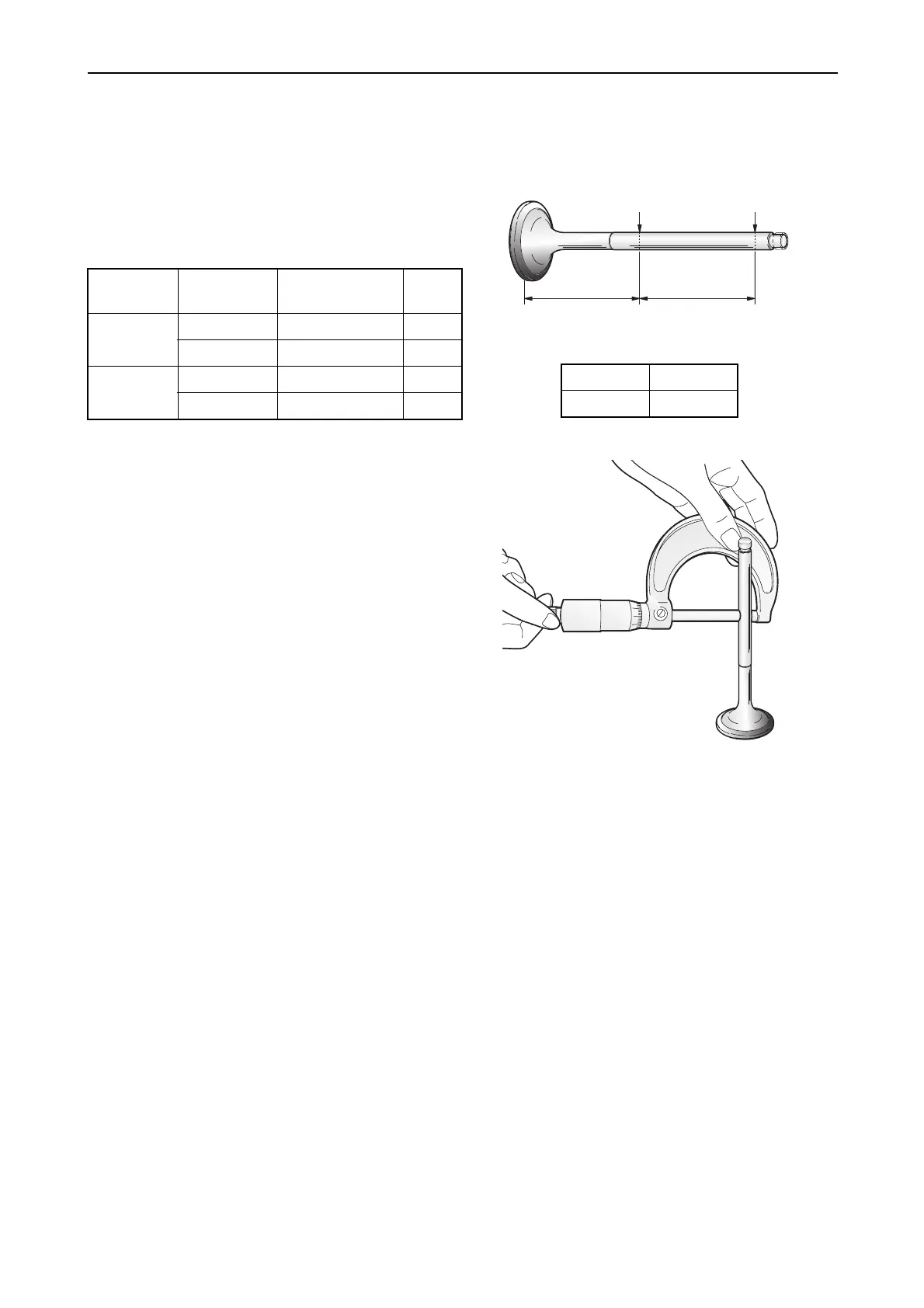

5.2.3 Intake/exhaust valves, valve
guides
(1) Wearing and corrosion of valve stem
Replace the valve stem is excessively worn or
corroded.
(2) Inspection of valve seat wear and
contact surface
Inspect for valve seat scratches and excessive
wear. Check to make sure the contact surface
is normal. The seat angle must be checked
and adjusted if the valve seat contact surface
is much smaller than the width of the valve
seat.
Note:
Keep in mind the fact that the intake and
discharge valve have different diameters.
mm
Valve stem
outside dia.
Standard Limit
3JH4E
4JH4E
Intake Ø7.955-Ø7.975 Ø7.90
Exhaust Ø7.955-Ø7.970 Ø7.90
4JH4-TE
4JH4-HTE
Intake Ø5.960-Ø5.975 Ø5.90
Exhaust Ø5.945-Ø5.960 Ø5.90
AB
010548-00X
007359-00X
mm
AB
40 50
