Yanmar 4JH4E - Lube Oil Pump Inspection

8. Lubrication system
255

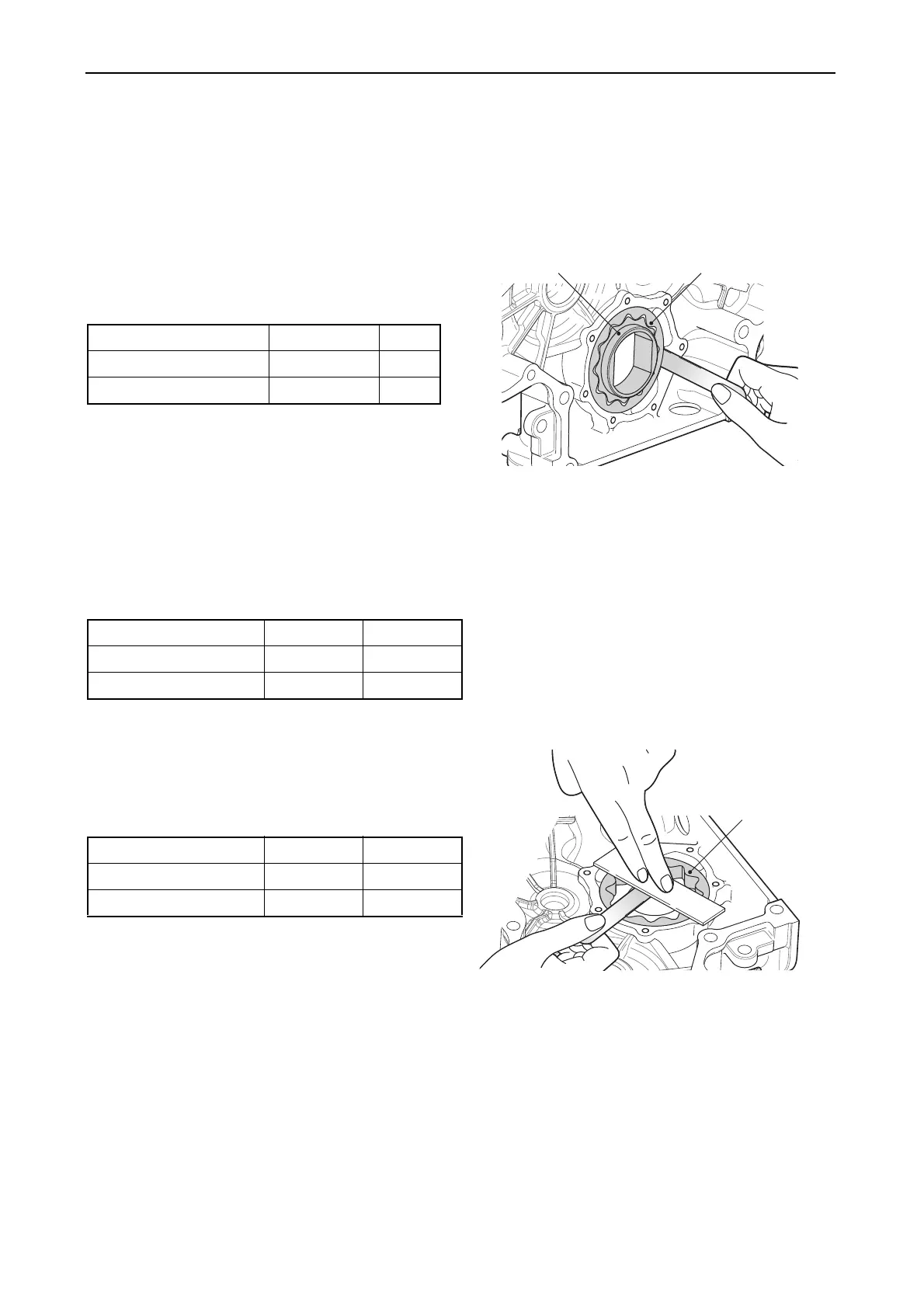

8.2.4 Lube oil pump inspection
The right figures show the examples of lube oil
pump of 3JH4E and 4JH4E.
It is the same procedure for the 4JH4-TE and
4JH4-HTE lube oil pump as well.
(1) Outside clearance of outer rotor
Insert a gap gage between an outer rotor and a
pump body, and measure the clearance.
(2) Clearance between outer rotor and inner
rotor
Insert a gap gage between an outer rotor and
an inner rotor, and measure the clearance.
(3) Side clearance of outer rotor
When measuring a side clearance, put a right-angle
gage to the pump body, insert a gap gage and mea-
sure the clearance.
Outside clearance mm
Standard Limit
3JH4E/4JH4E 0.12-0.21 0.30
4JH4-TE/4JH4-HTE 0.09-0.16 -
mm
Standard Limit
3JH4E/4JH4E - 0.16
4JH4-TE/4JH4-HTE - 0.16
Side clearance mm
Standard Limit
3JH4E/4JH4E 0.02-0.07 0.12
4JH4-TE/4JH4-HTE 0.05-0.1 0.15
Inner rotor Outer rotor
010671-00E
Outer rotor
010670-00E
