5. Inspection and servicing of basic engine parts
196

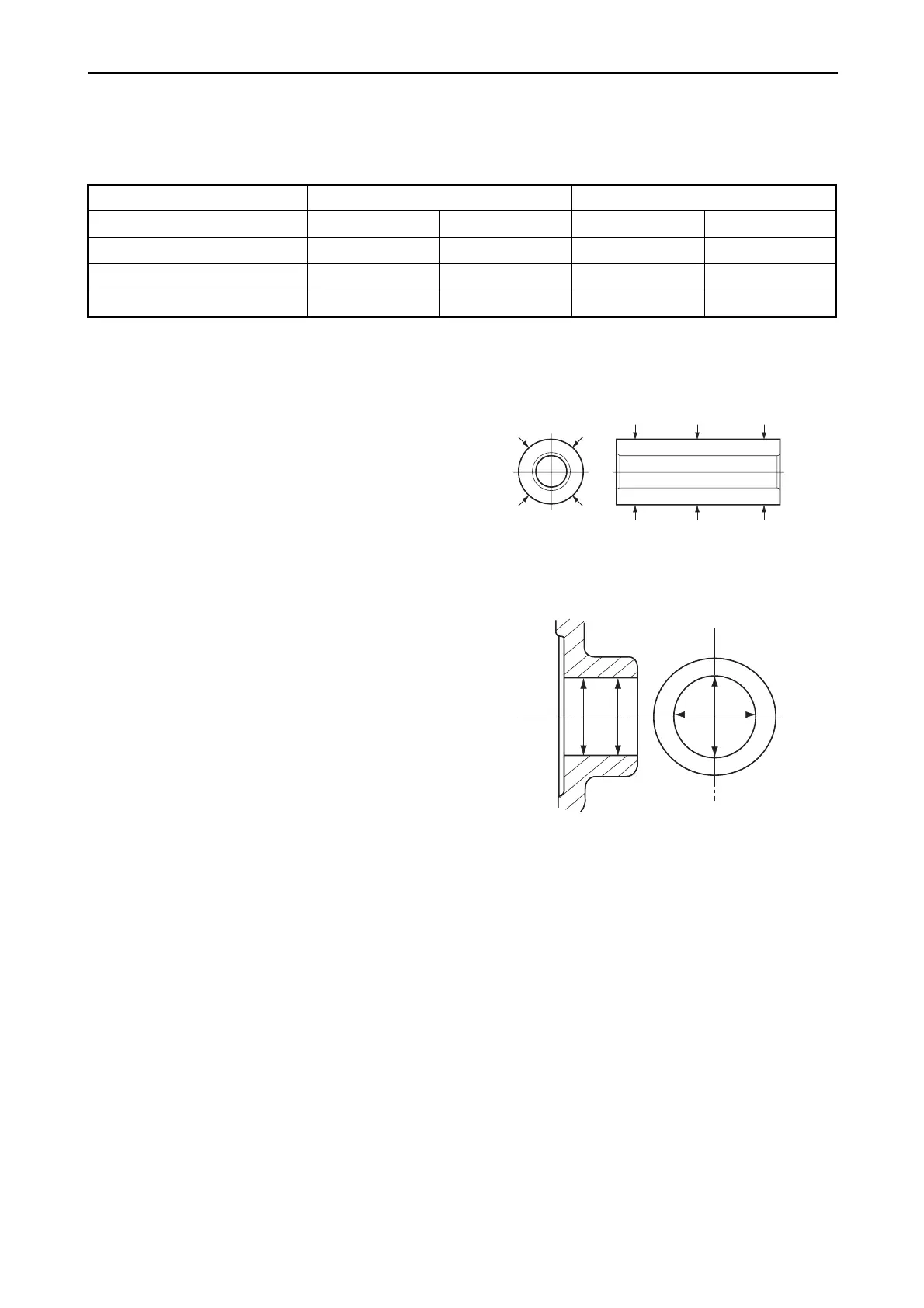

5.3.2 Piston pin
Measure the outer diameter and replace the pin if it
is excessively worn.
3JH4E/4JH4E 4JH4-TE/4JH4-HTE
Standard Limit Standard Limit
Piston pin hole inside dia. 26.000-26.009 26.020 28.000-28.009 28.020
Piston pin outside dia. 25.995-26.000 25.965 27.995-28.000 27.965
Clearance 0-0.014 0.074 0-0.014 0.074
A
B
ab c
011087-00E
A
ab
B
011088-00E
Measure at positions a, b and c in directions A
and B.
Measure at positions a and b in directions A and
B.
