6.3.4 Removing a fuel injection pump
The procedure to remove only a fuel injection
pump is shown.
1) Remove fuel injection pipes, fuel pipes and a
remote control wire. After removing pipes,
block the pipe inlet with tape so that trash
may not enter the fuel injection pipes and the
fuel injection pump.
2) Check the position of the timing marks of a
VE pump and a VE pump bracket. If
necessary, put a mark on the bracket at the
position to agree the timing mark of the VE
pump.
3) Remove a pump cover from the gear case.
4) Give the marks on a pump drive gear and a
idle gear with paint or the like.
5) Loosen the fuel injection pump installation
nuts (three nuts).
6) Loosen a installation nut of the pump drive
gear.
7) Pull the pump drive gear to your side by gear
puller.
8) Remove the pump drive gear nut and a
washer.
9) Remove the VE pump and O-ring from the
VE pump bracket. Leave the pump drive gear
in the gear case.

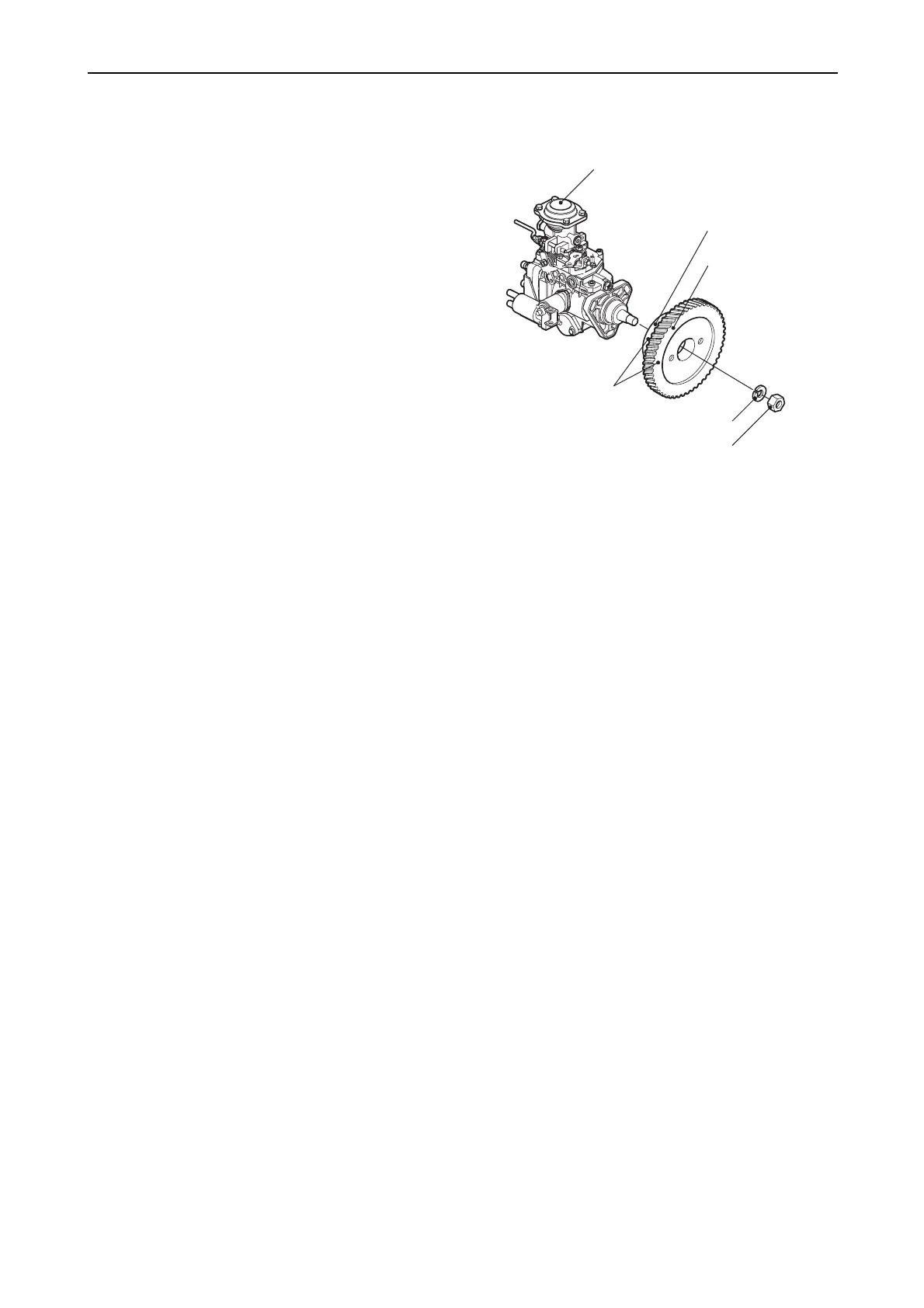

Fuel injection pump
Spring washer
Fuel injection
pump drive gea
Pump drive gear nut
Flange
Don't disassemble
010338-00E
