Yanmar 4JH4E - Fuel Feed Pump; Construction of Fuel Feed Pump; Fuel Feed Pump Specifications

6. Fuel Injection equipment
224
6.2 Fuel feed pump
The fuel feed pump pumps fuel from the fuel tank,
passes it through the fuel filter element, and
supplies it to the fuel injection pump.
The fuel feed pump is mounted on the side of this
engine and is driven by the (eccentric) cam of the
fuel pump camshaft. It is provided with a manual
priming lever so that fuel can be supplied when the
engine is stopped.

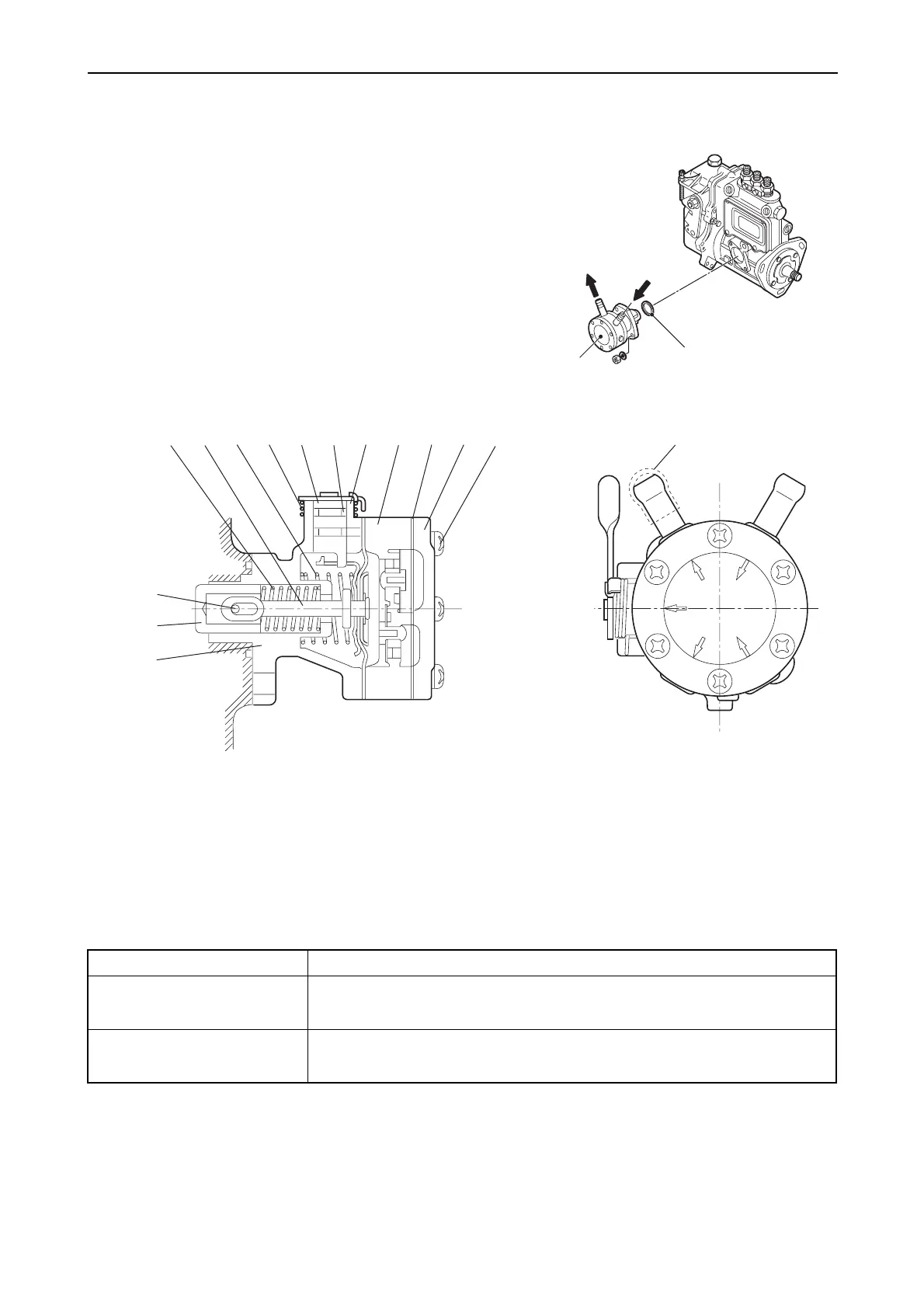

6.2.1 Construction of fuel feed pump
6.2.2 Fuel feed pump specifications
Head 1m
Discharge volume
230 cm
3
/min at 1500 min
-1
(cam),
discharge pressure of 0.020 MPa (0.2 kgf/cm
2)
Closed off pressure
0.029 MPa (0.3 kgf/cm
2)
or more
at 400 min
-1
(cam)
To fuel filter
From fuel tank
(water separator)
Packing
Fuel feed pump
010339-00E
(12)
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (15)
(13)
(14)
011494-00E
(1) Piston spring (5) Lever assembly (9) Packing (13) Piston
(2) Diaphragm assembly (6) O-ring (10) Cover (14) Pin
(3) Diaphragm spring (7) Stop pin (11) Small screw (15) Cap
(4) Lever return spring (8) Top body assembly (12) Bottom body
