5. Inspection and servicing of basic engine parts
211

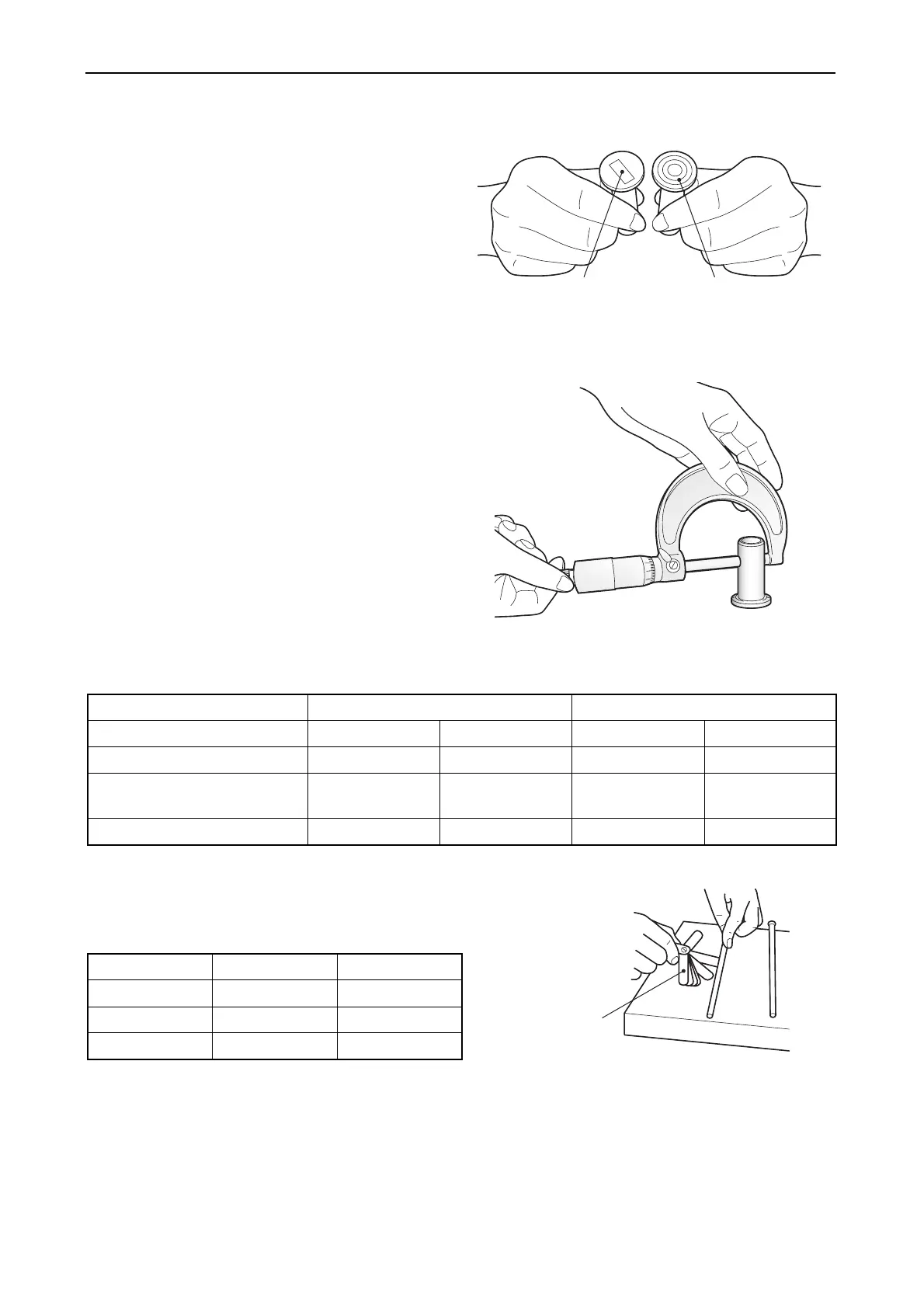

5.6.2 Tappets
(1) The tappets are offset to rotate during
operation and thereby prevent uneven
wearing. Check the contact of each
tappet and replace if excessively or
unevenly worn.
Note:
When removing tappets, be sure to keep
them separate for each cylinder and intake/
exhaust valve.
(2) Measure the outer diameter of the
tappet, and replace if worn beyond the
limit.
(3) Measuring push rods.
Measure the length and bending of the push
rods.
mm
3JH4E/4JH4E 4JH4-TE/4JH4-HTE
Standard Limit Standard Limit
Tappet stem outside dia. 11.975~11.990 11.930 11.975-11.990 11.930
Tappet guide hole inside dia.
(cylinder block)
12.000~12.018 12.045 12.000-12.025 12.052
Oil clearance 0.010~0.043 0.090 0.010-0.050 0.097
mm
Standard Limit
Push rod length 178.25-178.75 -
Push rod bend Less than 0.03 0.03
Push rod dia. 8.0 -
Abnormal contact
surface
Normal contact
surface
008290-01E
006462-00X
Thickness gage
010644-00E
