Yanmar 4JH4E - Fuel Injection Pump; Governor for 4 JH4-TE and 4 JH4-HTE; Fuel System Diagram

6. Fuel Injection equipment
227
6.3 Fuel injection pump/ governor for 4JH4-TE and 4JH4-HTE

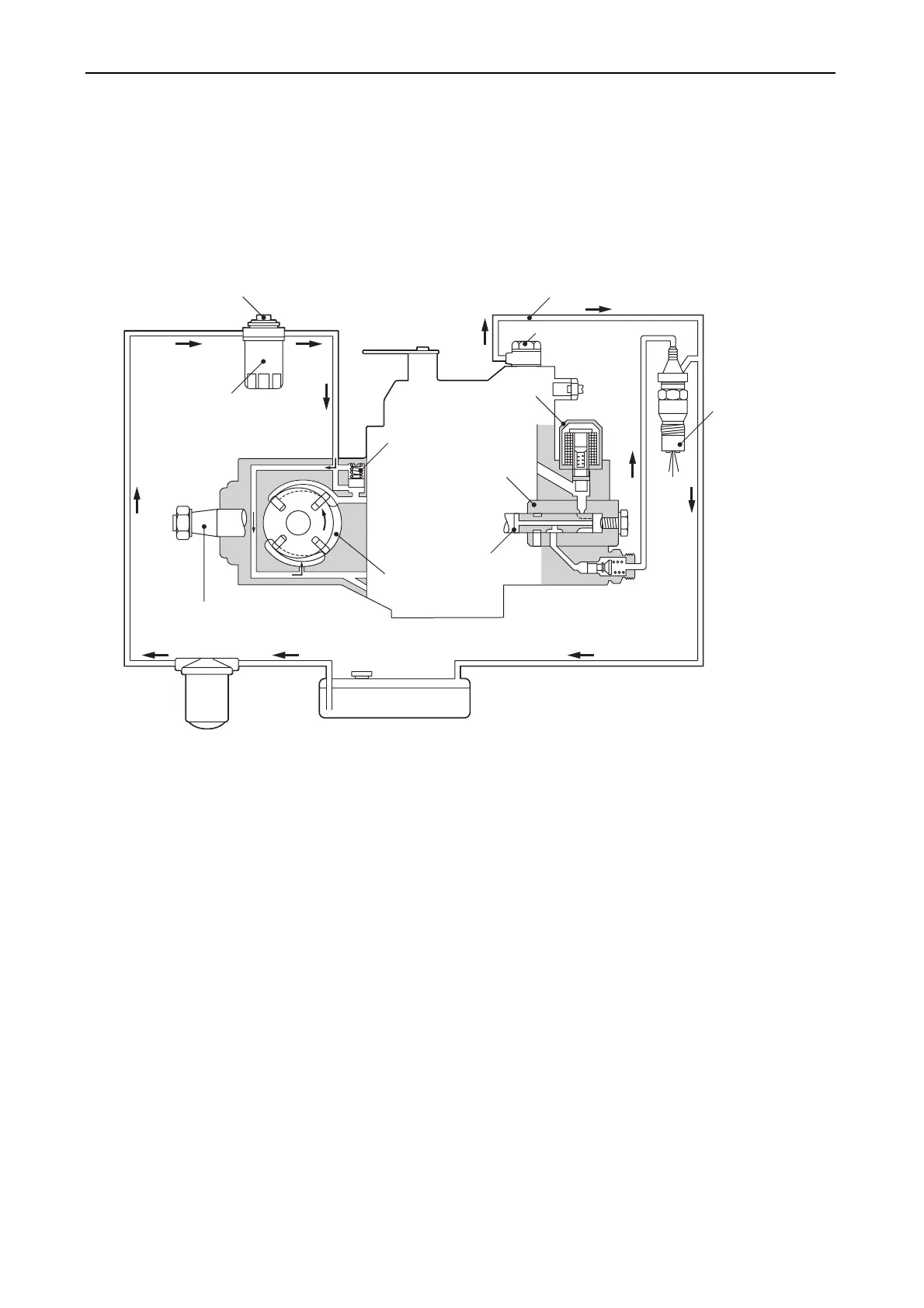

6.3.1 Fuel system diagram
Priming pump
Fuel filter
Drive shaft
Feed pump
Plunger
Plunger barrel
Magnetic valve
Regulating valve
Overflow pipe
Overflow valve
Injection nozzle
Fuel tank
010344-00E
