Yanmar 4JH4E - Inspecting the Connection Rod

5. Inspection and servicing of basic engine parts
201

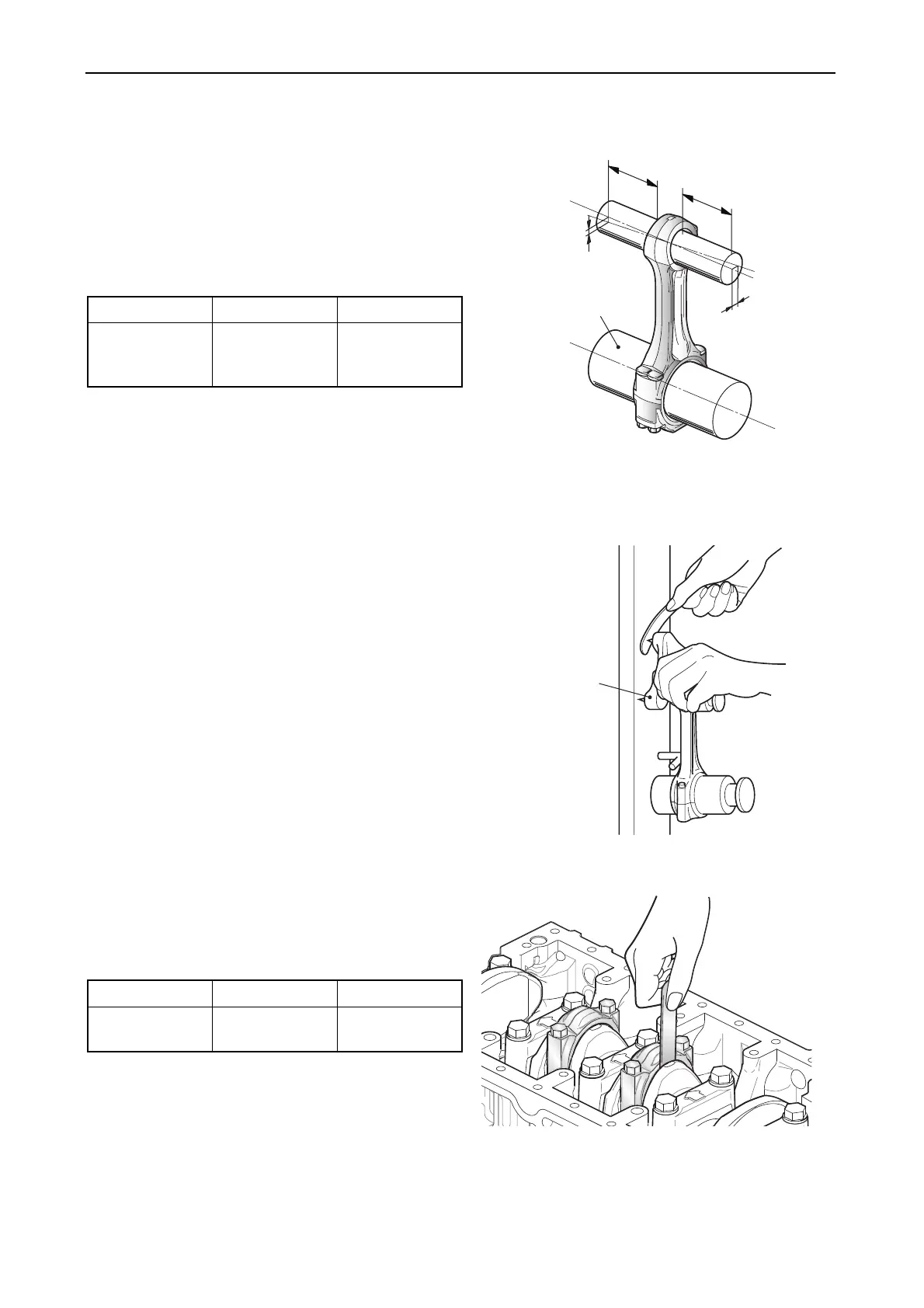

5.4.1 Inspecting the connection rod
(1) Twist and parallelism of the large and
small ends
Insert the measuring tool into the large and
small ends of the connecting rod. Measure the
extent of twist and parallelism and replace if
they exceed the tolerance.
(2) Checking the side clearance of a connecting
rod
Fit the respective crank pins to the connecting
rod and check to make sure that the side
clearance in the crankshaft direction is correct.
mm
Standard Limit
Connecting rod
twist and
parallelism
Less than 0.03
(at 100 mm)
0.08
Standard Limit
Connecting rod
side clearance
0.20-0.40 0.55
100mm
100mm
Twist
Mandrel
Parallelism
008229-01E
Connecting rod
aligner
011233-00
E
Twist measurement using a connecting rod
aligner
010551-00X
