Yanmar 4JH4E - Measuring Instruments

4. Disassembly and reassembly
131

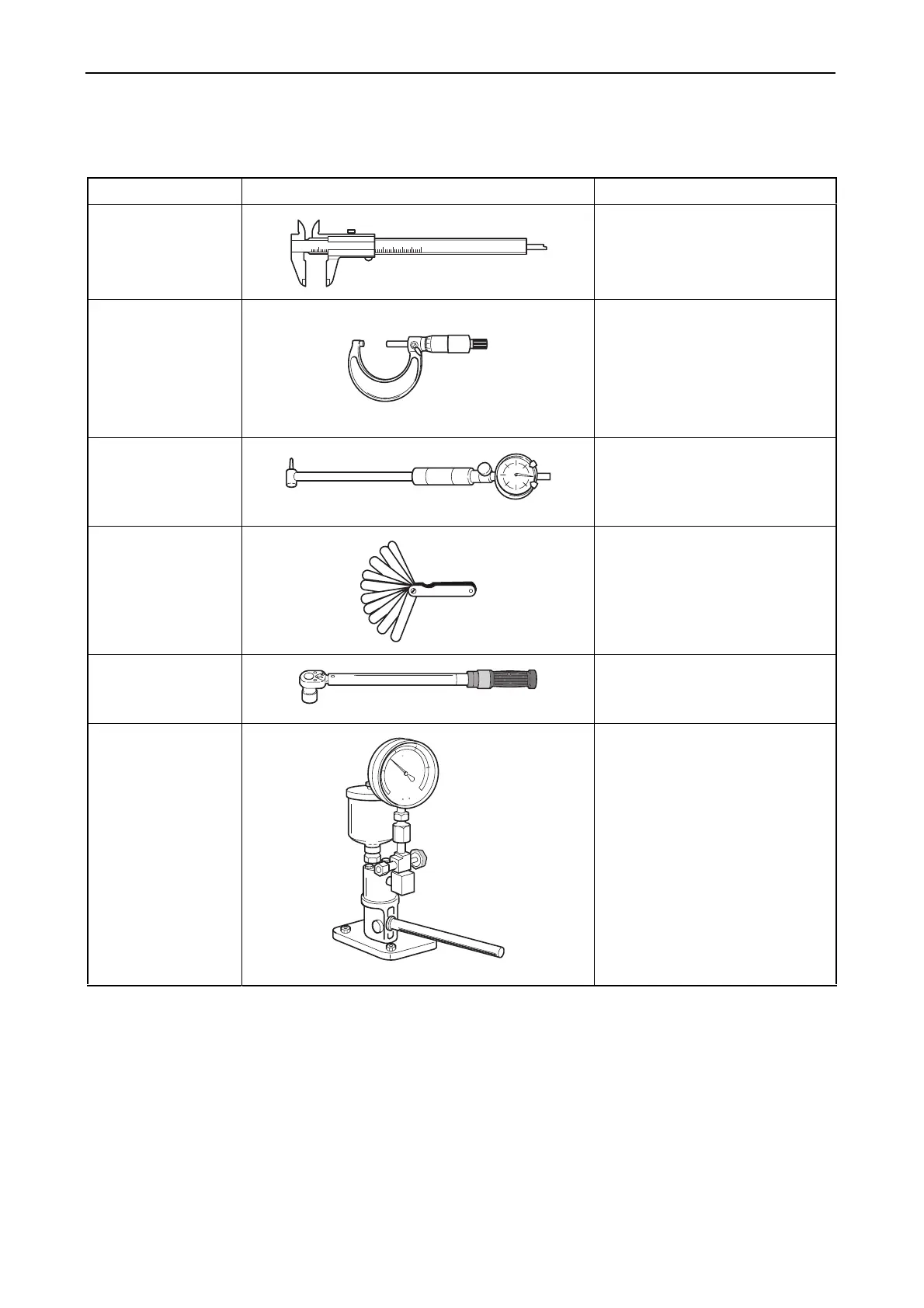

4.2.3 Measuring instruments
(1) Application of tools
Name of tool Illustration Application
Vernier calipers 0.05 mm
0-150 mm
Micrometer 0.01 mm
0-25 mm
25-50 mm
50-75 mm
75-100 mm
100-125 mm
125-150 mm
Cylinder gauge 0.01 mm
18-35 mm
35-60 mm
50-100 mm
Thickness gauge 0.05-2 mm
Torque wrench 128 Nm
(0-13 kgf•m)
Nozzle tester 0-49 Mpa
(0-500 kgf/cm
2
)
001423-00X
001432-00X
001425-00X
001426-00X
007235-00X
010640-00X
