Yanmar 4JH4E - 1 General; Exterior Views

1. General
1
1. General
1.1 Exterior views

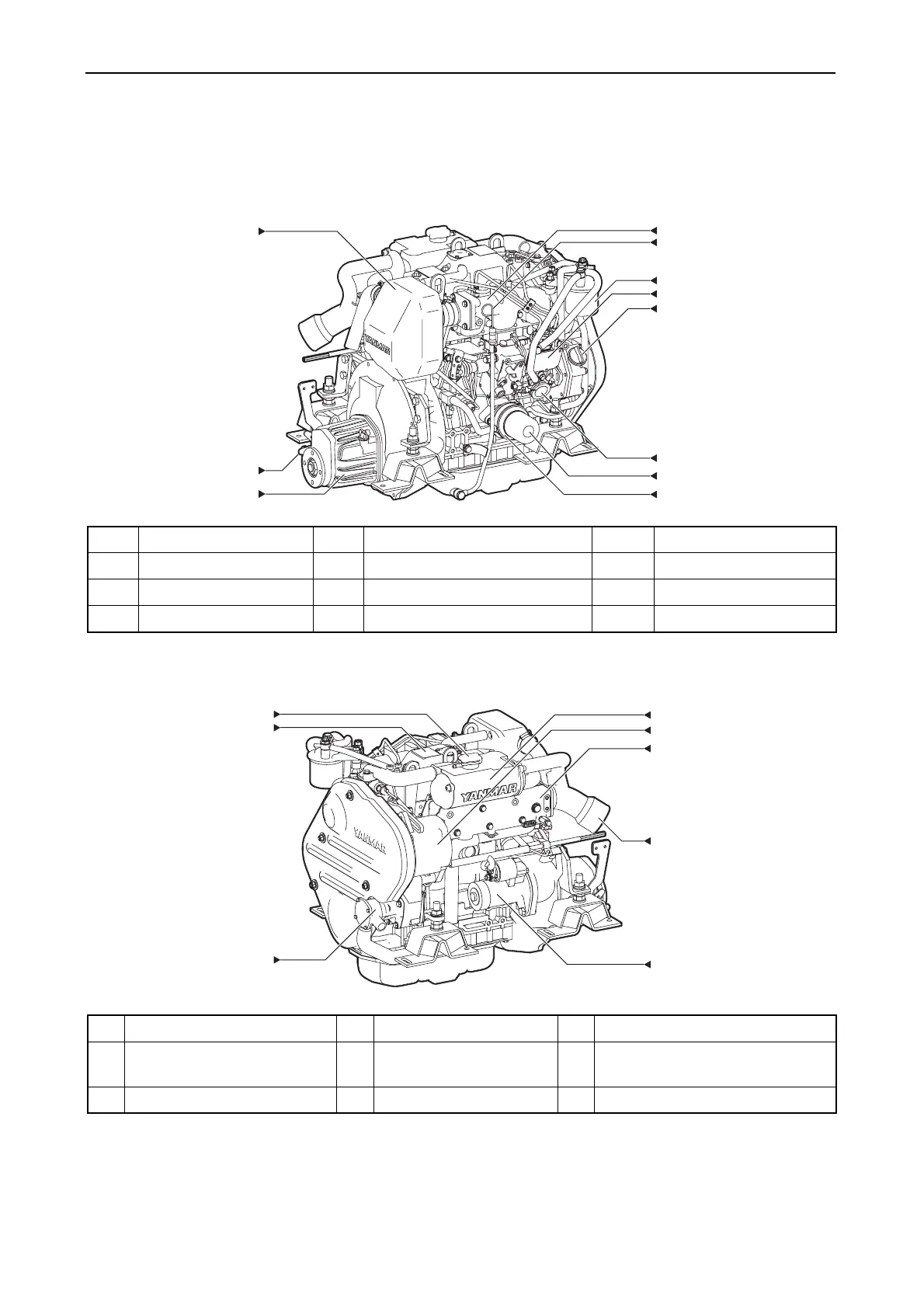

(1) 3JH4E
• Operation side
• Non operation side
<Note> This illustration shows the 3JH4E with Yanmar marine gear (Model:KM35P).
(1) Intake silencer (5) Lube oil filter (9) Fuel filter
(2) Shift lever (6) Fuel feed pump (10) Dipstick
(3) Marine gear (7) Oil filter cap (11) Intake manifold
(4) Oil cooler (8) Fuel injection pump
(1) Coolant filler cap (4) Starter motor (7) Alternator
(2) Engine name plate
(on the rocker arm cover)
(5) Exhaust mixing elbow (8) Coolant tank/Heat exchanger
(3) Seawater pump (6) Exhaust manifold
(1)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(2)
(3)
010297-01X
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
010298-01X
