1. General
2

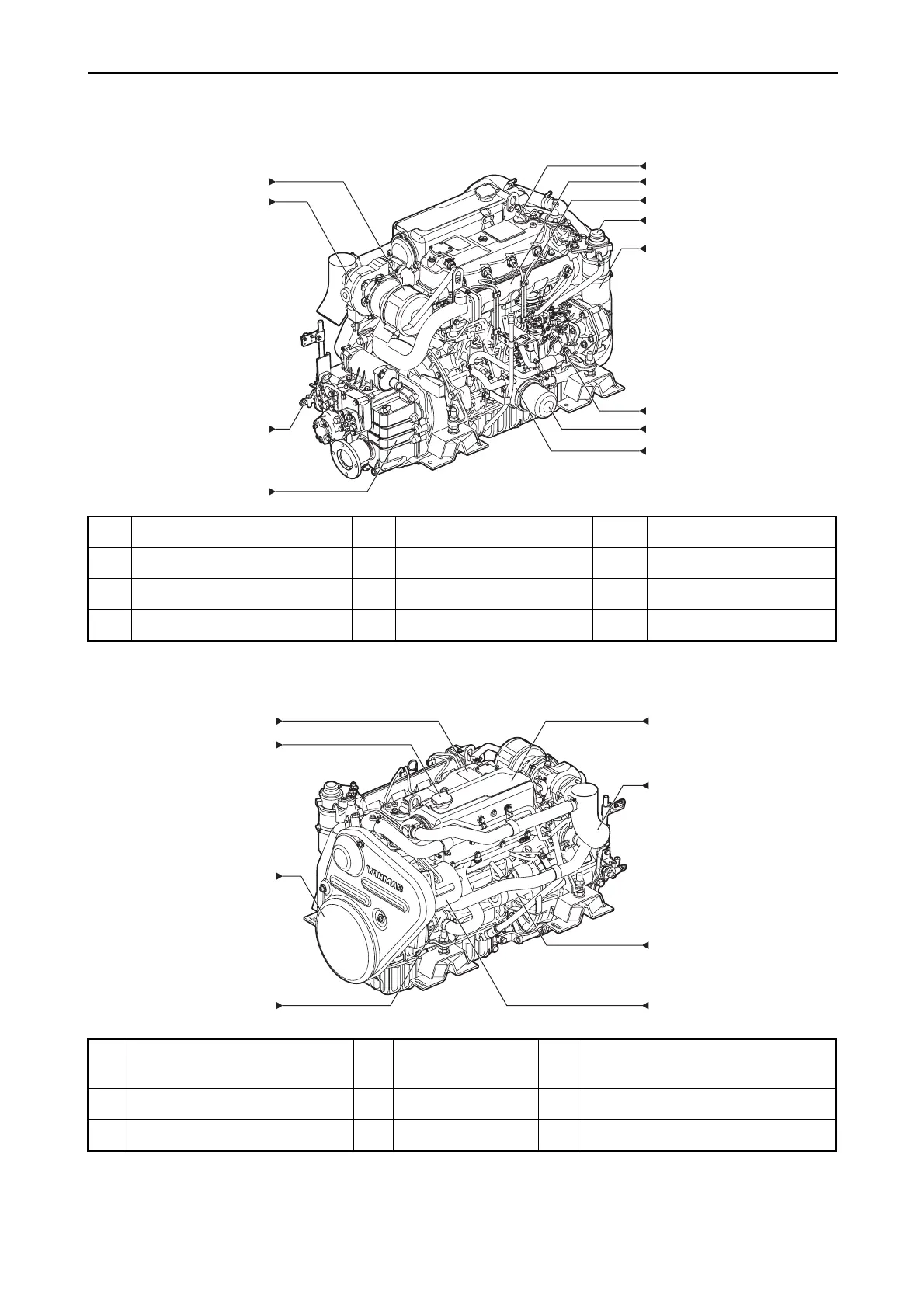

(2) 4JH4-TE
• Operation side
• Non operation side
<Note> This illustration shows the 4JH4-TE with Yanmar marine gear (Model: KMH4A).
(1) Intake silencer (5) Lube oil cooler (9) Fuel priming pump
(2) Turbocharger (6) Lube oil filter (10) Dipstick
(3) Shift lever (7) Fuel injection pump (11) Intake manifold
(4) Marine gear (KMH4A) (8) Fuel filter (12) Oil filler cap
(1) Engine name plate
(on the rocker arm cover)
(4) Seawater pump (7) Exhaust mixing elbow
(2) Coolant filler cap (5) Alternator (8) Coolant tank/Heat exchanger
(3) Belt cover (6) Starter motor
(12)
(11)
(9)
(10)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
008831-01X
(1)
(2)
(8)
(5)
(7)
(6)
(4)
(3)
008832-01X
