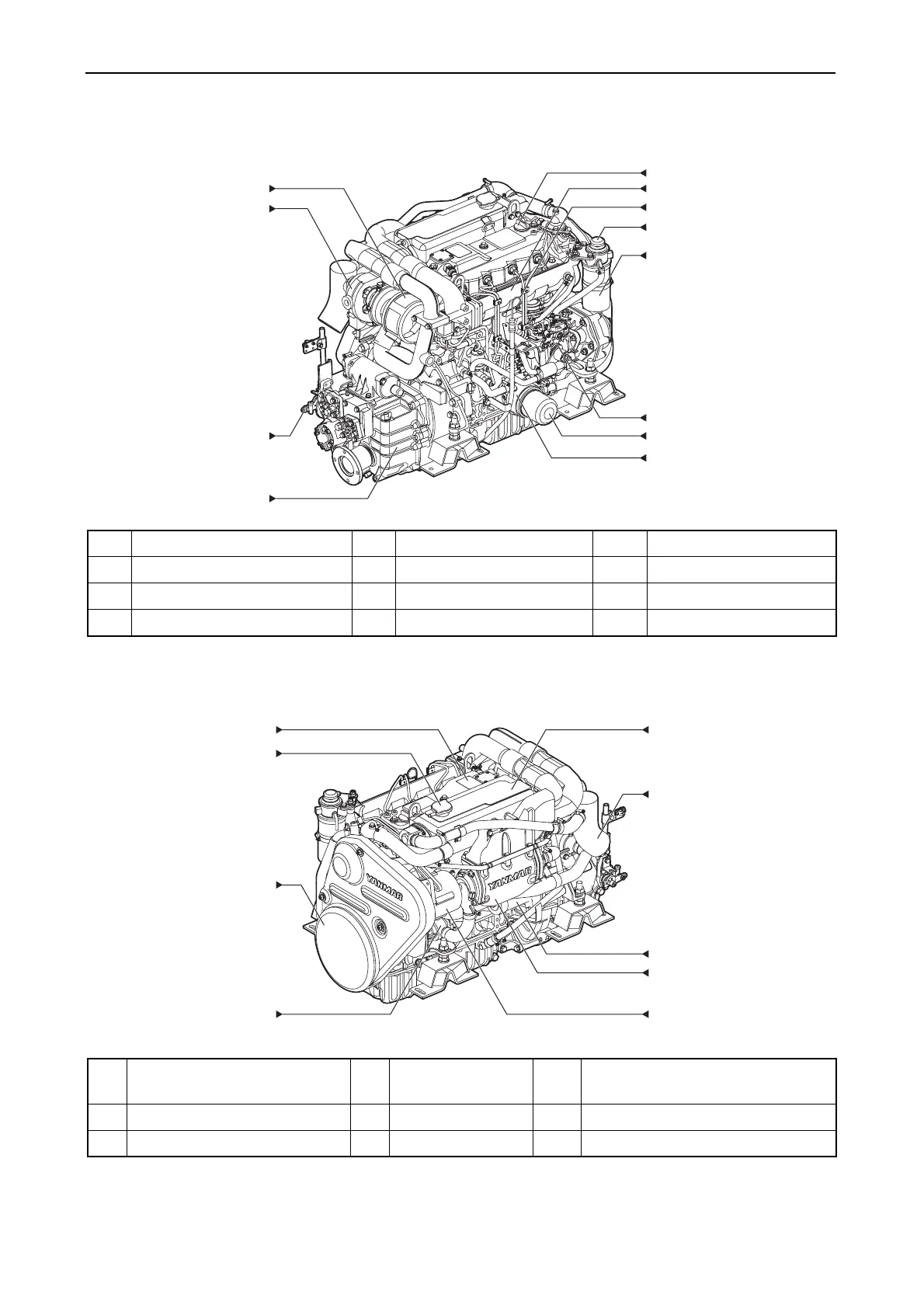

1. General
3
(3) 4JH4-HTE
• Operation side
• Non operation side
<Note> This illustration shows the 4JH4-HTE with Yanmar marine gear (Model: KMH4A).
(1) Intake silencer (5) Lube oil cooler (9) Fuel priming pump
(2) Turbocharger (6) Lube oil filter (10) Dipstick
(3) Shift lever (7) Fuel injection pump (11) Intake manifold
(4) Marine gear (KMH4A) (8) Fuel filter (12) Oil filler cap
(1) Engine name plate
(on the rocker arm cover)
(4) Seawater pump (7) Starter motor
(2) Coolant filler cap (5) Alternator (8) Exhaust mixing elbow
(3) Belt cover (6) Intercooler (9) Coolant tank/Heat exchanger
