4. Disassembly and reassembly
129
Press tool 1 for filler
neck
Too l 1
-
Press tool 2 for filler
neck copper tube
Too l 2
-

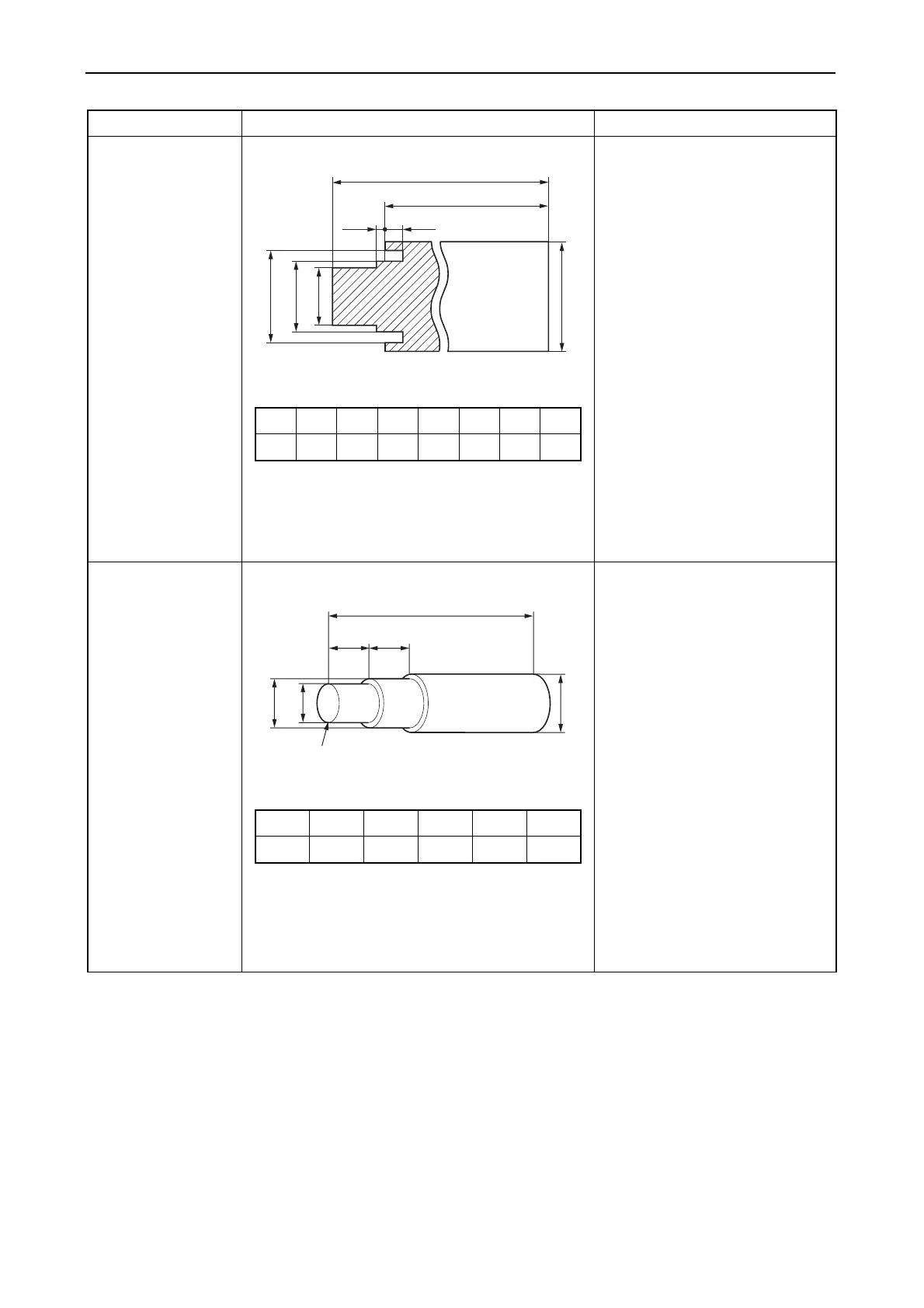

Name of tool Illustration Remarks
D
E
FG
A B C
H
010331-00X
mm
ABCDEFGH
ø35.5 ø27.5 ø25 105 89 1 2 ø40
Chamfer
A
B
F
C
D
E
010332-00E
mm
ABCDEF
ø28 ø24.2 170 30 30 ø30
