4. Disassembly and reassembly
143

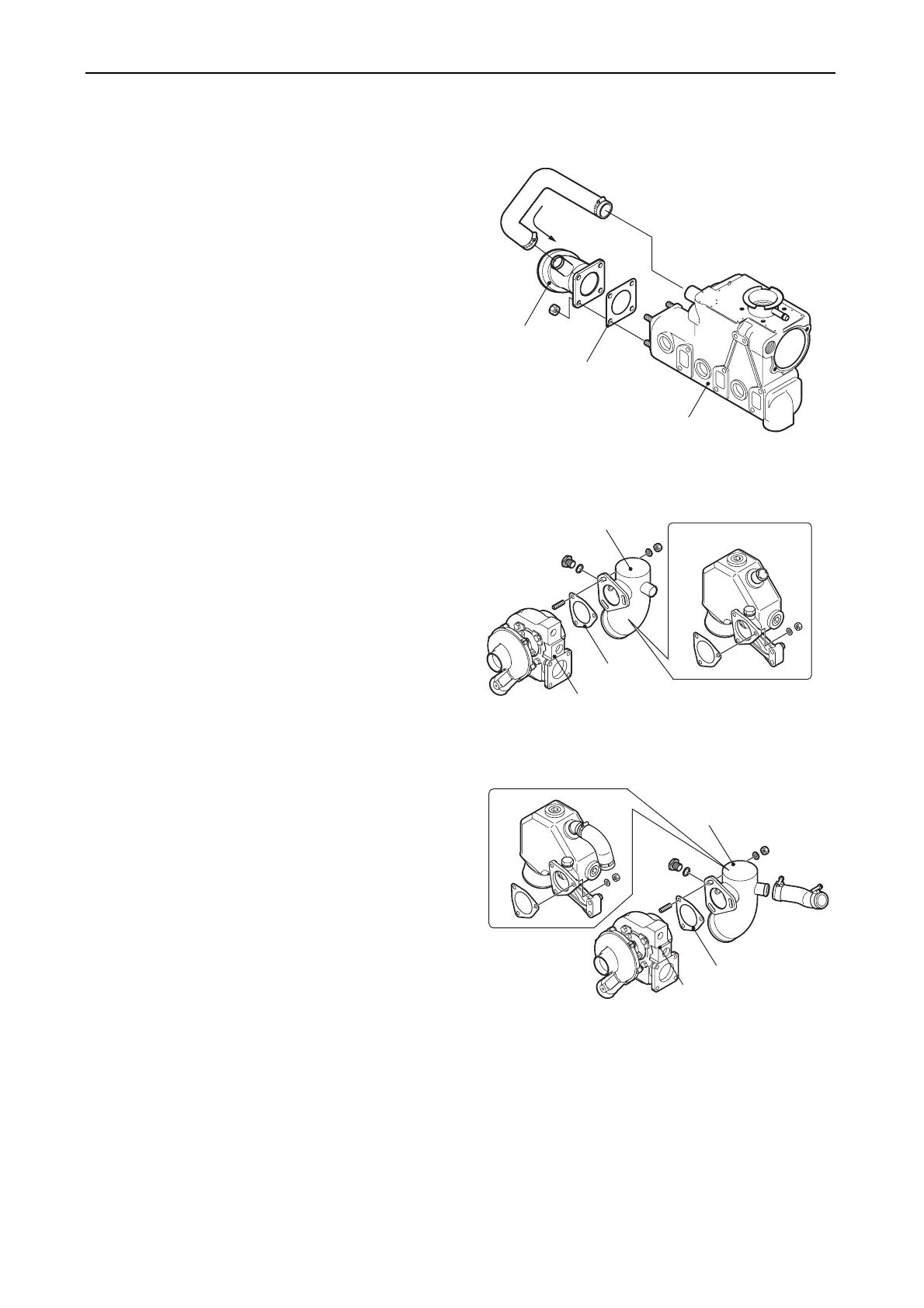

(6) Removing the mixing elbow
1) Remove the seawater rubber hose
connecting a heat exchanger and a mixing
elbow.
2) Remove the mixing elbow from the exhaust
manifold for 3JH4E and 4JH4E or from the
turbocharger for 4JH4-TE and 4JH4-HTE.
L-type mixing
elbow
Gasket
Seawater
Exhaust manifold
010624-00E
Gasket
Turbocharger
L-type mixing elbow
Option
014216-00E
Gasket
Turbocharger
L-type mixing elbow
Option
014217-00E
3JH4E/ 4JH4E
4JH4-TE
4JH4-HTE
To Next Page
