4. Disassembly and reassembly
159

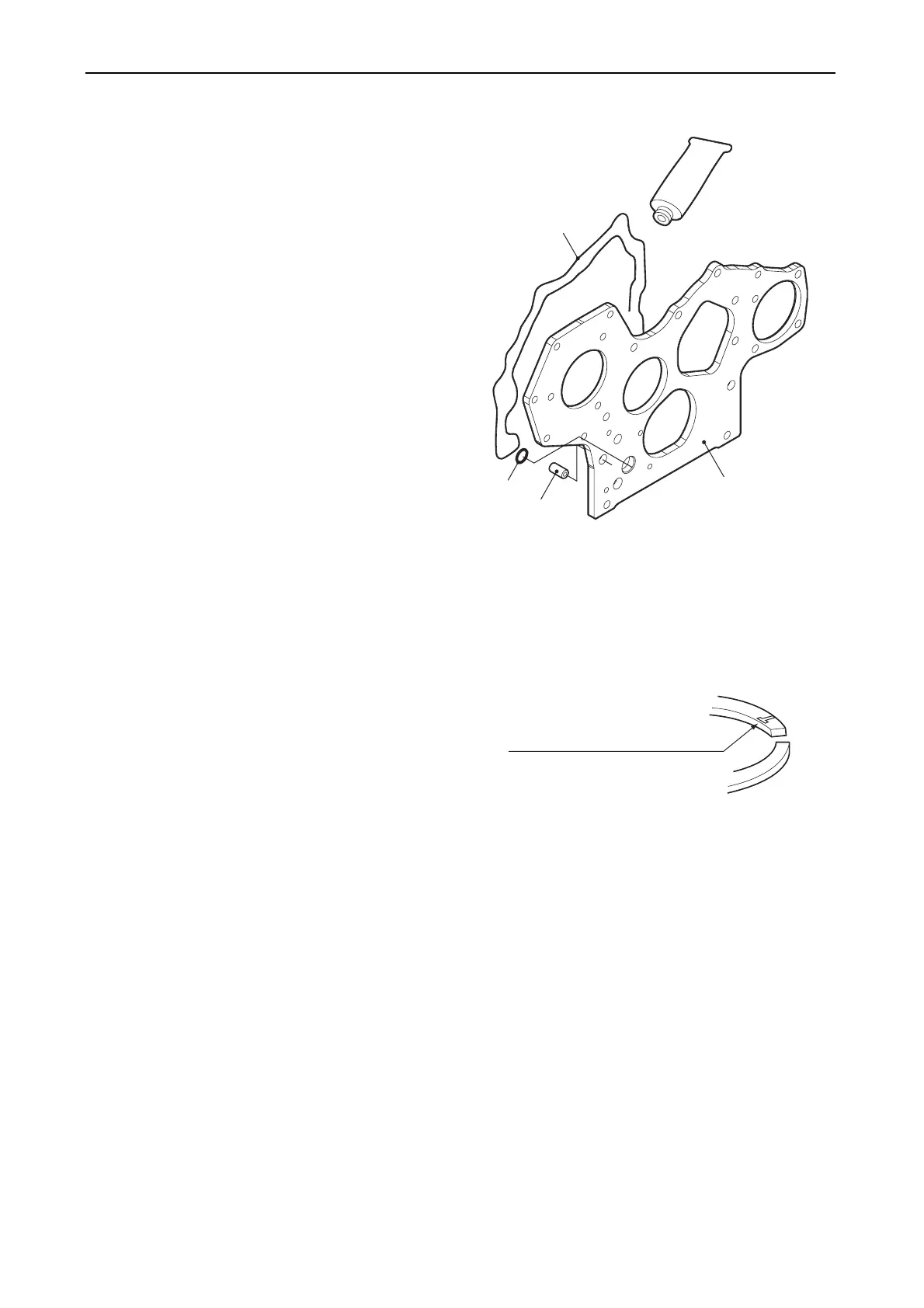

(8) Mounting the gear case flange
Apply the liquid gasket to the gear case flange
and mount the gear case flange and lube oil
line O-ring onto the cylinder block.
Note:
1) When mounting the gear case flange,
match up the two knock pins of the
cylinder block.
2) Be sure to coat the O-ring for the cylinder
block lube oil line with grease when
assembling, so that it does not get out of
place.
(9) Mounting the piston and connecting rod
1) Reassemble the piston and connecting rod.
Note:
1) When reassembling the piston and
connecting rod, make sure that the parts are
assembled with the correct orientation.
2) Install each piston ring on the piston, with
the punched manufacturer’s mark facing
upward.
O-ring
Knock pin
Gear case flange
Liquid gasket
977770
-01212
010378-00E
Make the punched manufacturer's
mark face upward.
011078-00E
To Next Page
