4. Disassembly and reassembly
164

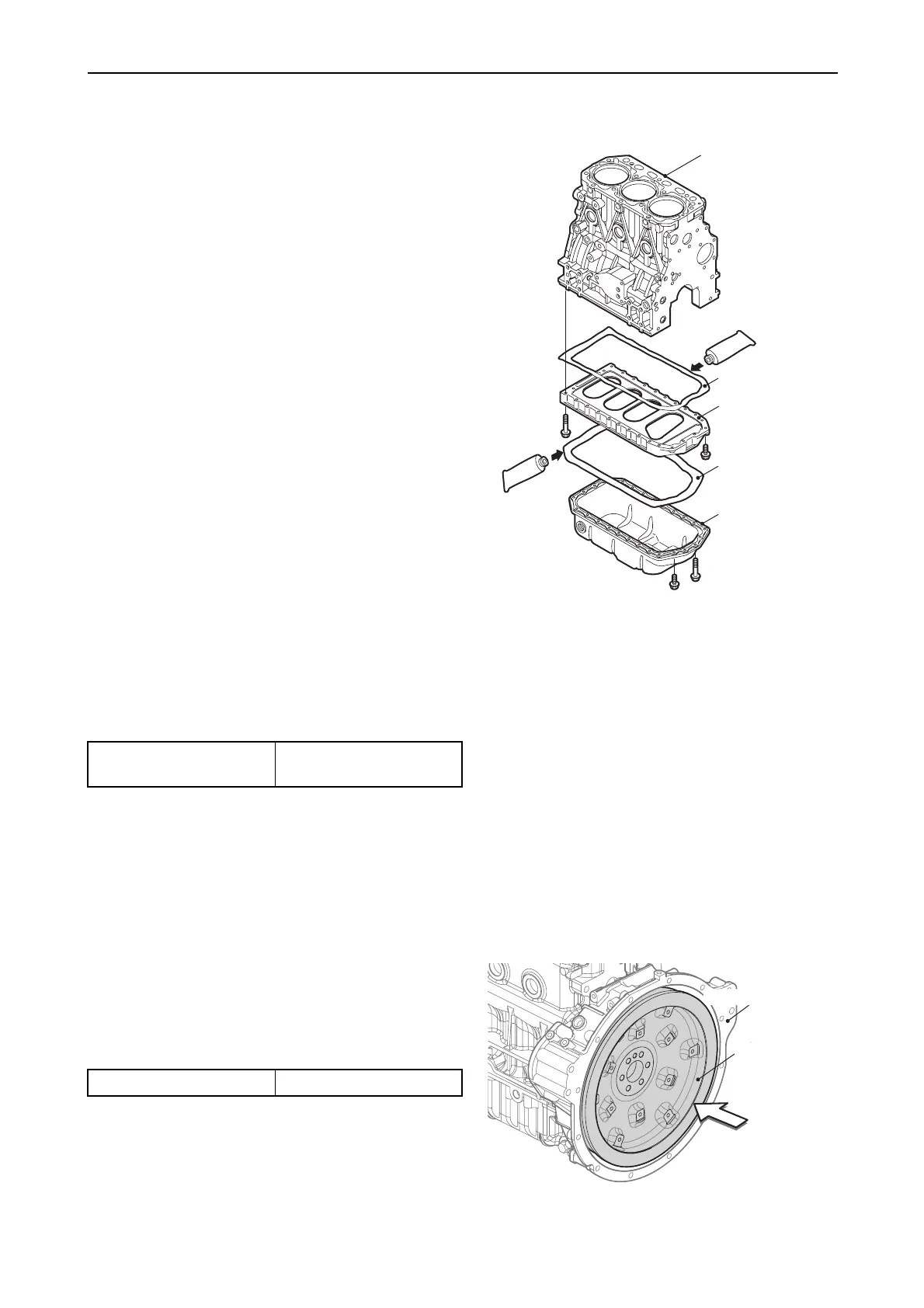

(15) Mounting the spacer and the oil pan
1) Apply the liquid gasket to the surfaces of the
gear case cover, gear case flange and oil seal
case on the flywheel housing side, that
contact with the cylinder block.
2) Apply the liquid gasket to the spacer. Mount
the spacer to the cylinder block and tighten
the bolts.
3) Apply the liquid gasket to the oil pan. Mount
the oil pan to the spacer and tighten the bolts.
4) Mount the dipstick and dipstick guide.
(16) Mounting the crankshaft V-pulley
1) Coat the oil seal with oil.
2) Make sure to wipe off oil on the taper surface.
3) Tighten to the specified torque.
(17) Mounting the engine mounting feet and
turning the engine upright.
1) Mount the engine mounting feet.
2) Turn the engine upright (Oil pan is the bottom
side).
(18) Mounting the flywheel
1) Coat the flywheel bolts threads with engine
oil.
2) Align the positioning pins, and tighten the
flywheel bolts to the specified torque.
Tightening torque Nm (kgf•m)
V-pulley bolt
(Material : casting iron)
83.2-93.2 (8.48-9.50)
Tightening torque Nm (kgf•m)
Flywheel bolt 83.3-88.3 (8.49-9.00)
977770
-01212
977770
-01212
Cylinder block
Spacer
Oil pan
Liquid gasket
Liquid gasket
010373-00E
Flywheel
Flywheel housing
010372-00E
