4. Disassembly and reassembly
169

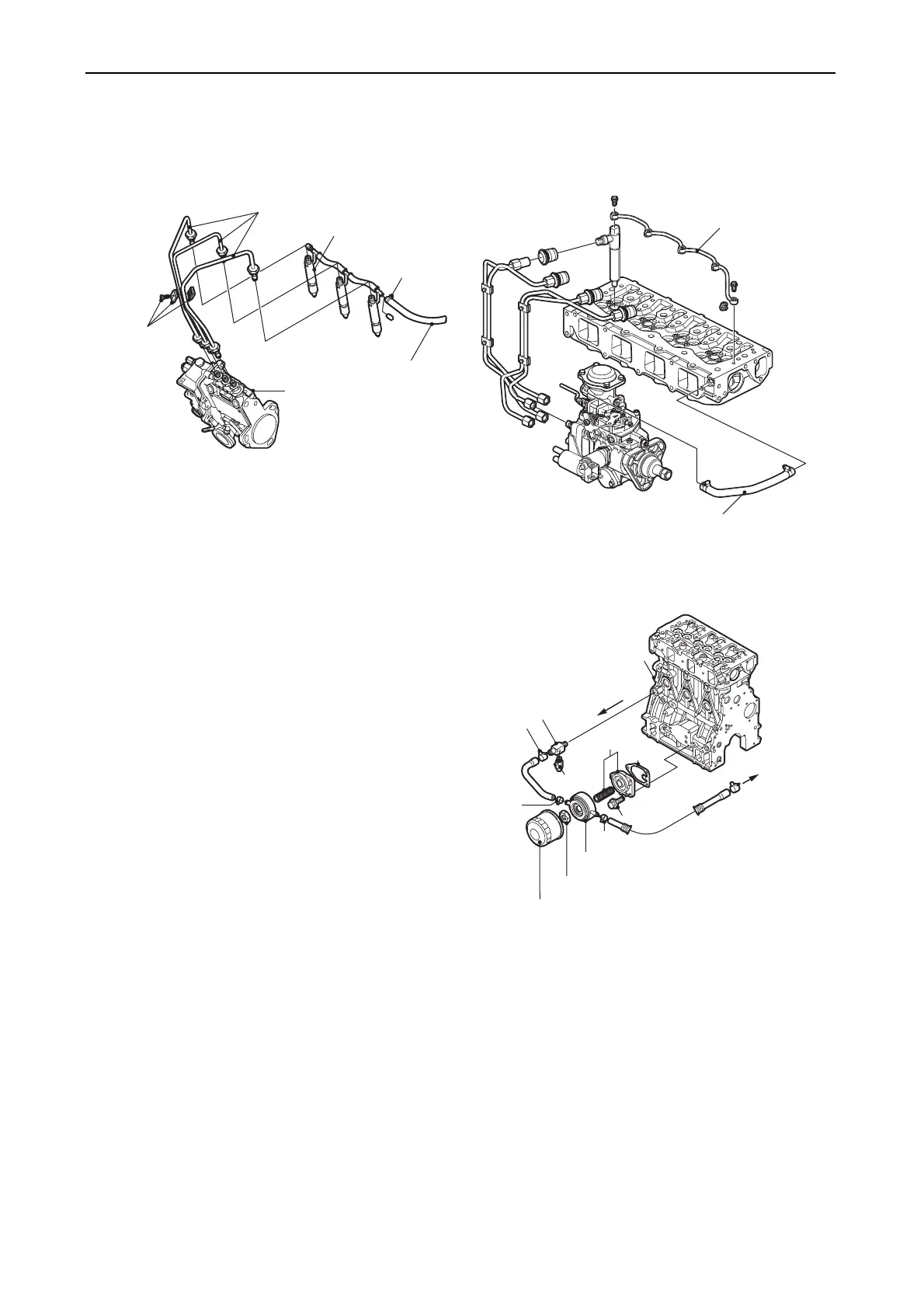

2) Mount the fuel return pipe with the clamp (fuel
injection nozzle - fuel filter).
(27) Mounting the lube oil cooler and the
lube oil filter.
1) Mount the filter bracket and gasket on the
cylinder block.
2) Mount the lube oil cooler to the filter bracket
and tighten the lube oil cooler nut.
3) Mount the fresh water pipes (cylinder block-
lube oil cooler, lube oil cooler-fresh water
pump)
4) Mount the lube oil filter with the tool of the
filter case remover.
Fuel injection
pipe retainer
Fuel injection nozzle
Fuel injection pump
Fuel return pipe
Clamp
Fuel injection pipe
010386-00E
Fuel return pipe
Fuel return pipe
010521-00E
3JH4E and 4JH4E
4JH4-TE and 4JH4-HTE
Cylinder block
Fresh water
To fresh
water pump
Clamp
Lube oil cooler
Lube oil cooler nut
Lube oil filter
Joint
Clamp
Filter bracket
Gasket
Drain cock
Bolt
Clamp
010388-00E
