4. Disassembly and reassembly
171
1) Mount the seawater pipes with the hose clips
(seawater pump-heat exchanger).
2) Mount the fresh water pipes with the hose
clips (exhaust manifold - fresh water pump,
fresh water pump - heat exchanger).
3) Mount the fresh water pipes (cylinder block -
lube oil cooler, lube oil cooler - fresh water
pump).

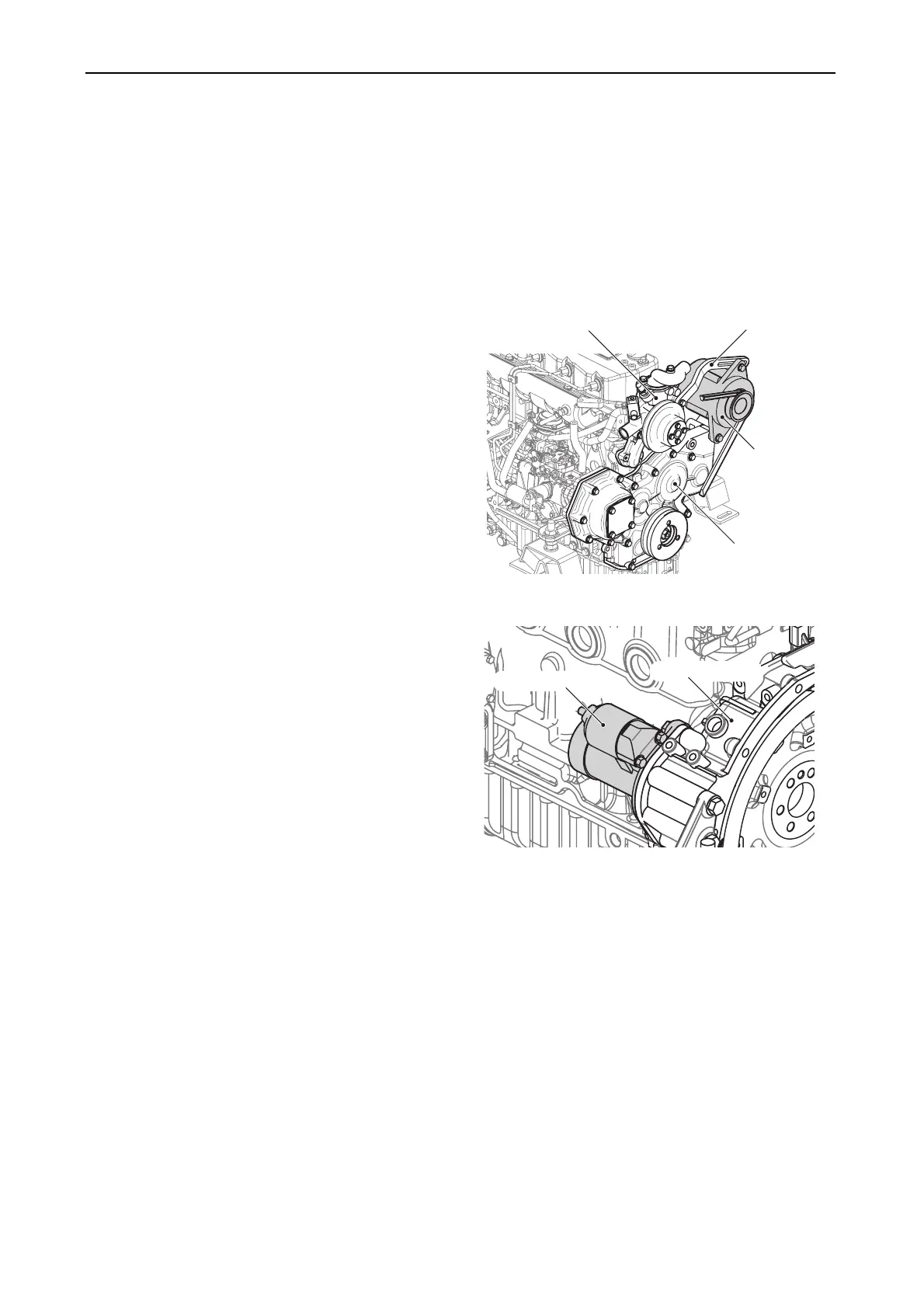

(31) Mounting the alternator
1) Mount the adjuster on the fresh water pump,
the distance piece on the gear case, and then
the alternator.
2) Adjust V-belt tension with the adjuster, and
tighten the mounting bolts.
(32) Mounting the starting motor
Fit the starting motor in the flywheel housing.
Fresh water pump
Adjuster
Alternato
Gear case
010435-00E
010436-00E
Flywheel housing
Starting motor
