7. Intake and exhaust system
250

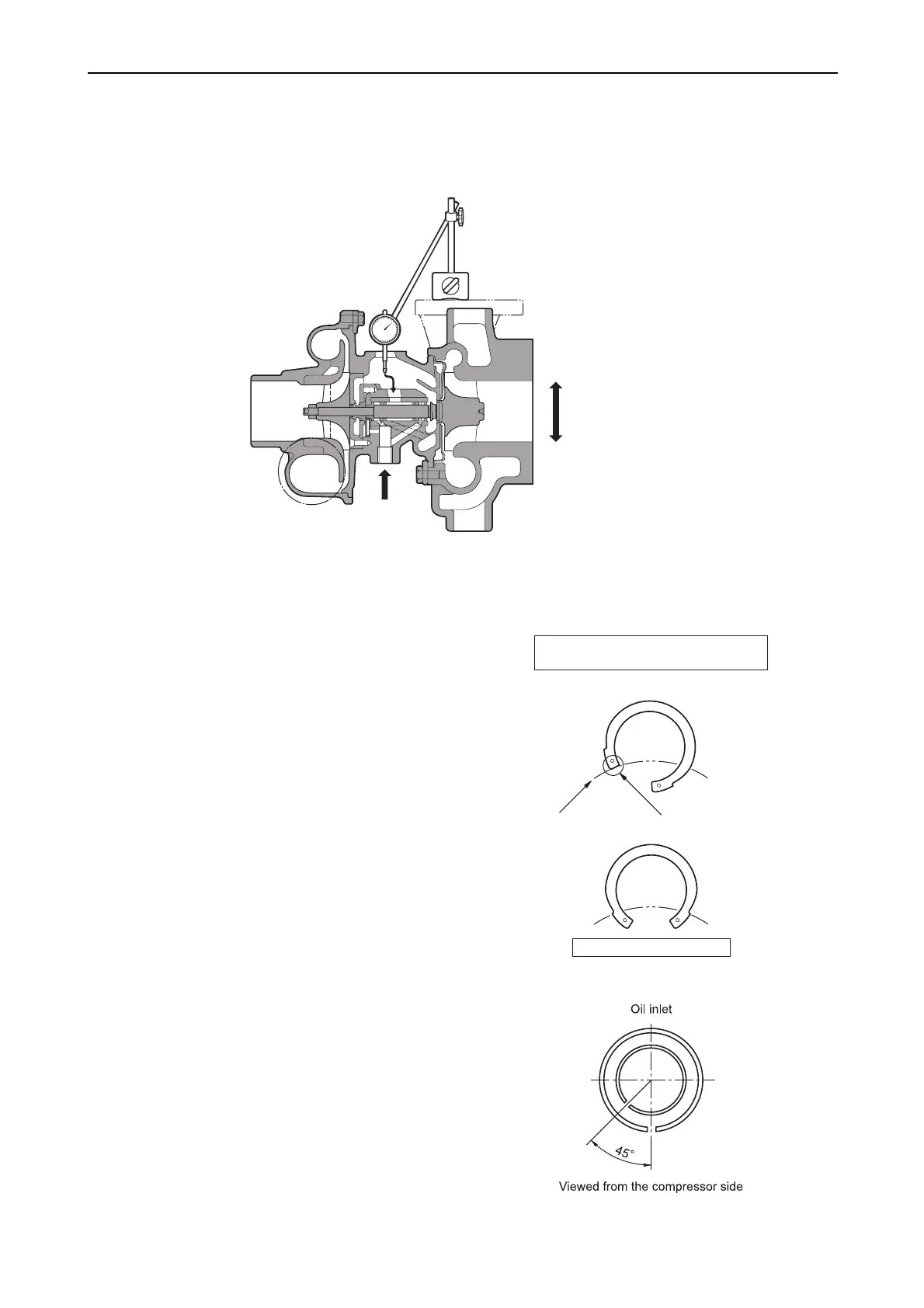

• Radial play in the turbine shaft
Service standard: 0.08 to 0.06 mm
Wear limit : 0.17 mm
3) Cautions about assembly
a) Retaining ring
• Install the abutment as shown in the
figure.
• Put the round ring surface on the metal
side.
b) Seal ring on the turbine side
• Put the abutment on the oil inlet side.
c) Seal ring on the compressor side
• Insert the abutment as shown in the
figure.
Magnet base
Turbine
housing
Move the turbine
shaft on the left
and right sides
simultaneously in
the radial direction
Dial gauge
Oil inlet
010675-00E
011209-00E
Align hereCutter groove
Oil inlet
All except the above one.
This is applied to one abutment only
that is located nearest the turbine side.
Viewed from turbine side.
011210-00E
