9. Coolant system
270

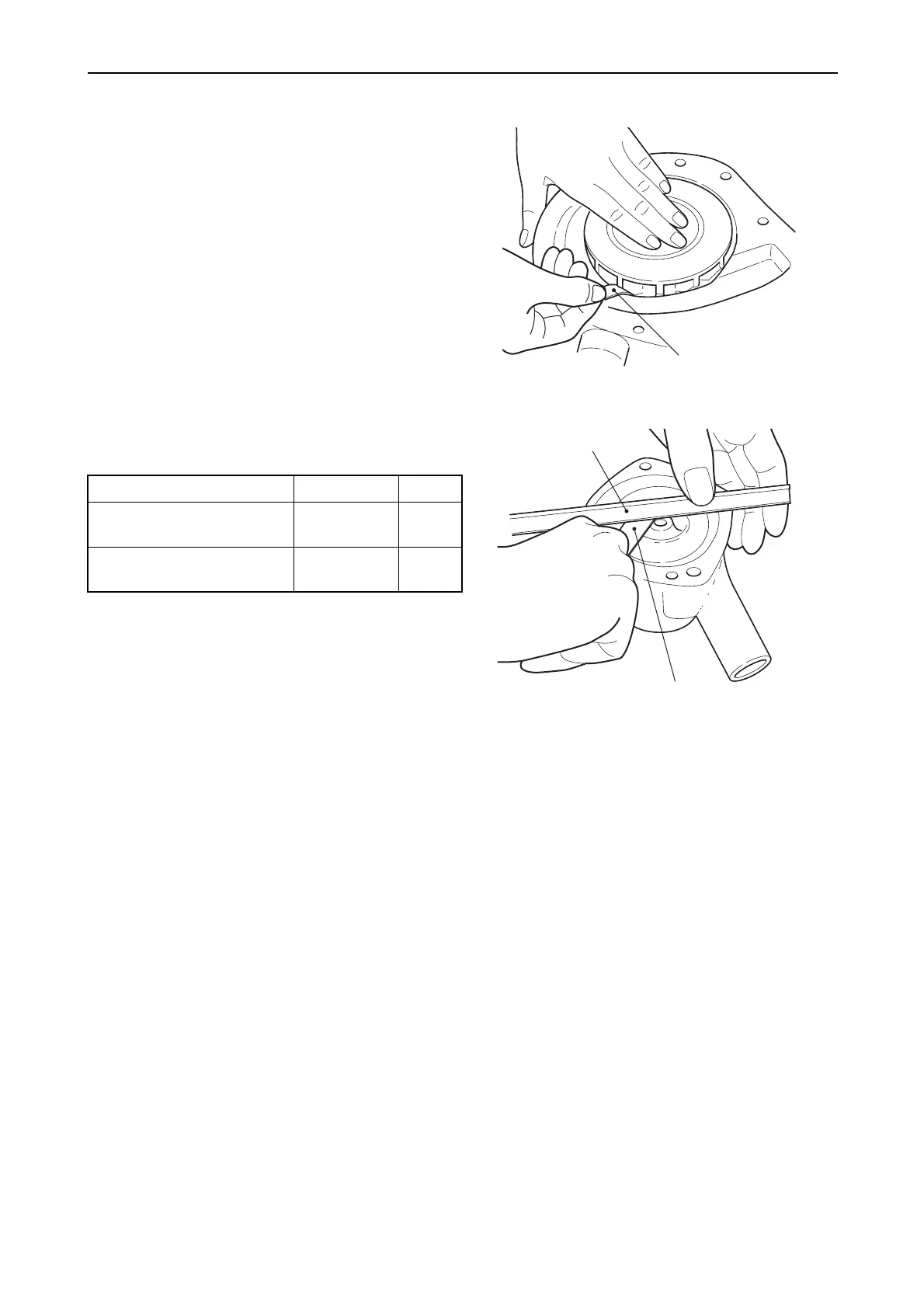

Measuring clearance between impeller and pump
body.
Measuring clearance between impeller and pump
body bracket.
mm
Standard Limit
Clearance between
impeller and body
0.3-1.1 1.5
Clearance between
impeller and plate
15 -
001582-01E
Thickness gauge
Straightedge
Thickness gauge
001583-01E
