8.4 Replace Drive Cooling Fans and Circulation Fans
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 569
Remove the drive cover before you start this procedure.
CAUTION! Crush Hazard. Loosen the cover screws. Do not fully remove them. If you fully remove the cover screws, the terminal
cover can fall and cause moderate injury.
1. Remove the cable from the hooks.
A - Circulation fan
B - Hooks
C - Fan cable

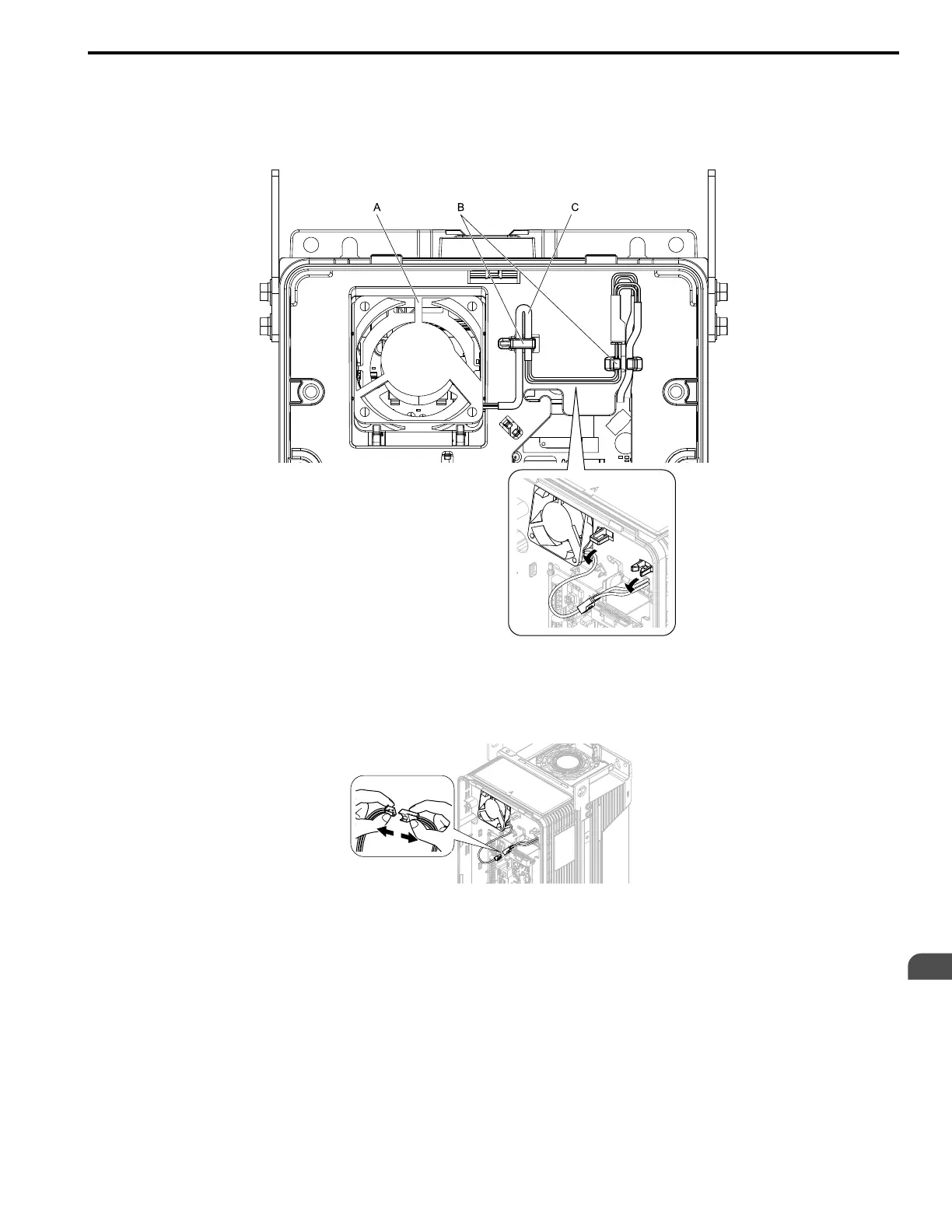

Figure 8.20 Remove the Cable
2. Disconnect the power supply connector.
Figure 8.21 Disconnect the Power Supply Connector

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
