8.4 Replace Drive Cooling Fans and Circulation Fans
570 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

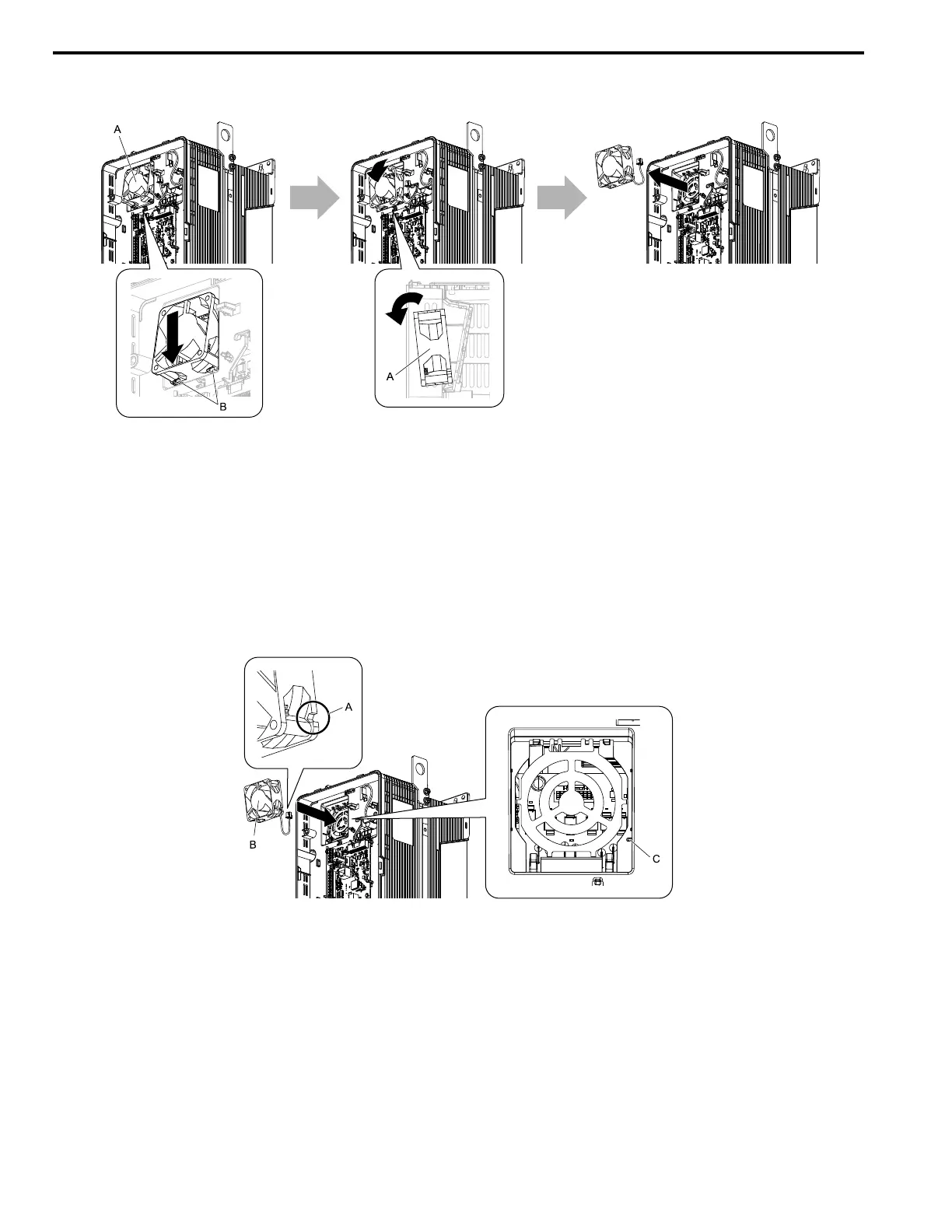

3. Push the fan toward the bottom of the drive to push on the tabs at the bottom of the fan, then pull the fan
forward to remove it from the drive.
A - Circulation fan B - Tabs
Figure 8.22 Remove the Circulation Fan
■ Install a Circulation Fan
Note:
Use this procedure only when you use one of these drive models:
• 2046CVx, 2059CVx
• 4065CFx, 4040CVx to 4065CVx
Reverse the removal procedure to install a circulation fan.
1. Align the notch on the fan with the pin on the drive and install the fan in the drive.
A - Notch on fan
B - Circulation fan
C - Alignment pin on drive
Figure 8.23 Install the Circulation Fan
