Sample application > Modification

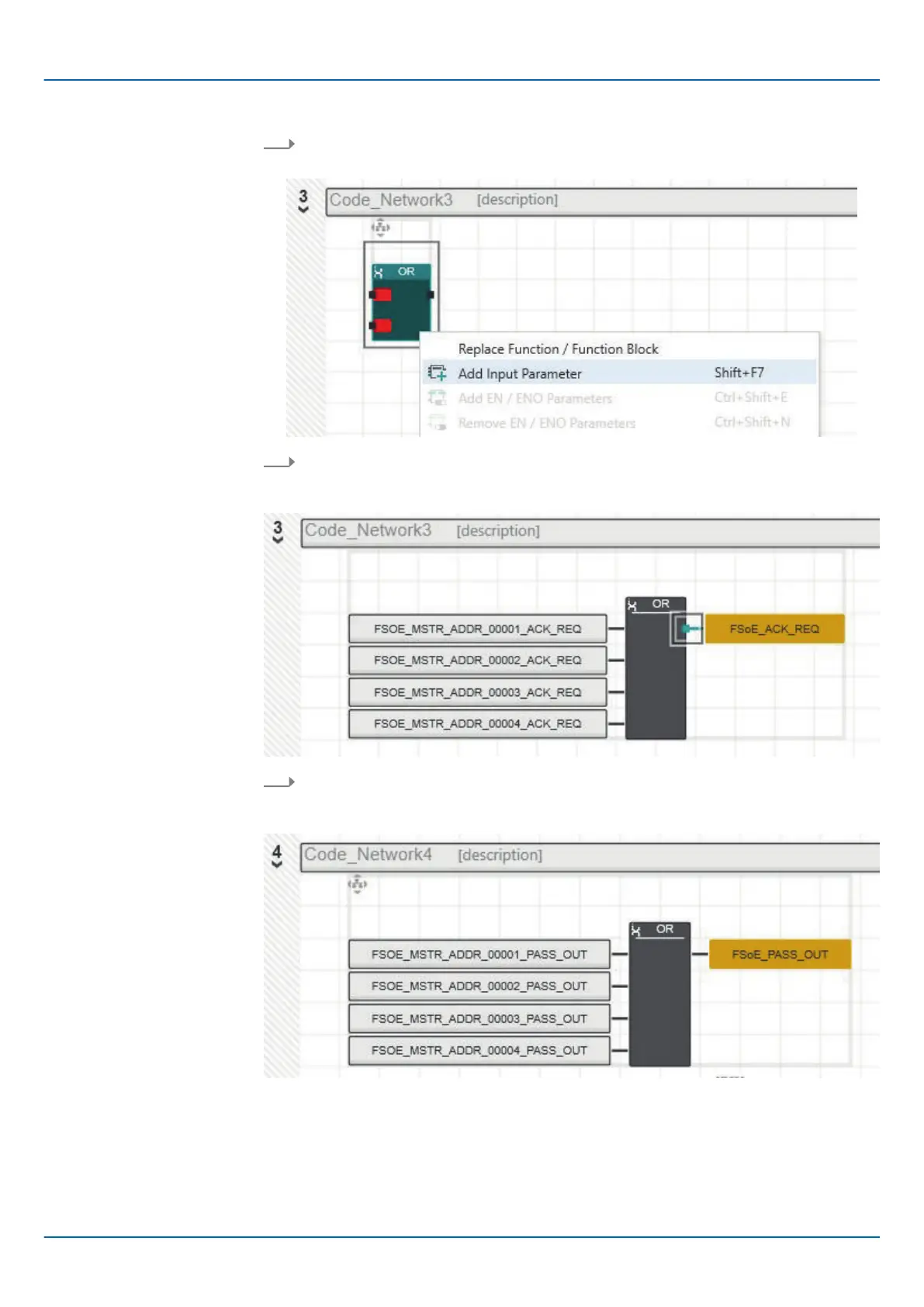

2. Open the ‘Code’ tab in ‘S_Main’, drag in an OR
and add two more input parameters.
🡆
3. Use ‘Add input parameter
’ to add the input parameters
FSOE_MSTR_ADDR_0000x_ACK_REQ and the output FSoE_ACK_REQ.
🡆
4. Add another OR and proceed in the same way with
FSOE_MSTR_ADDR_0000x_P
ASS_OUT and FSoE_PASS_OUT.
🡆
