Basics and mounting
iC9200 Series
Mounting > Mounting periphery modules

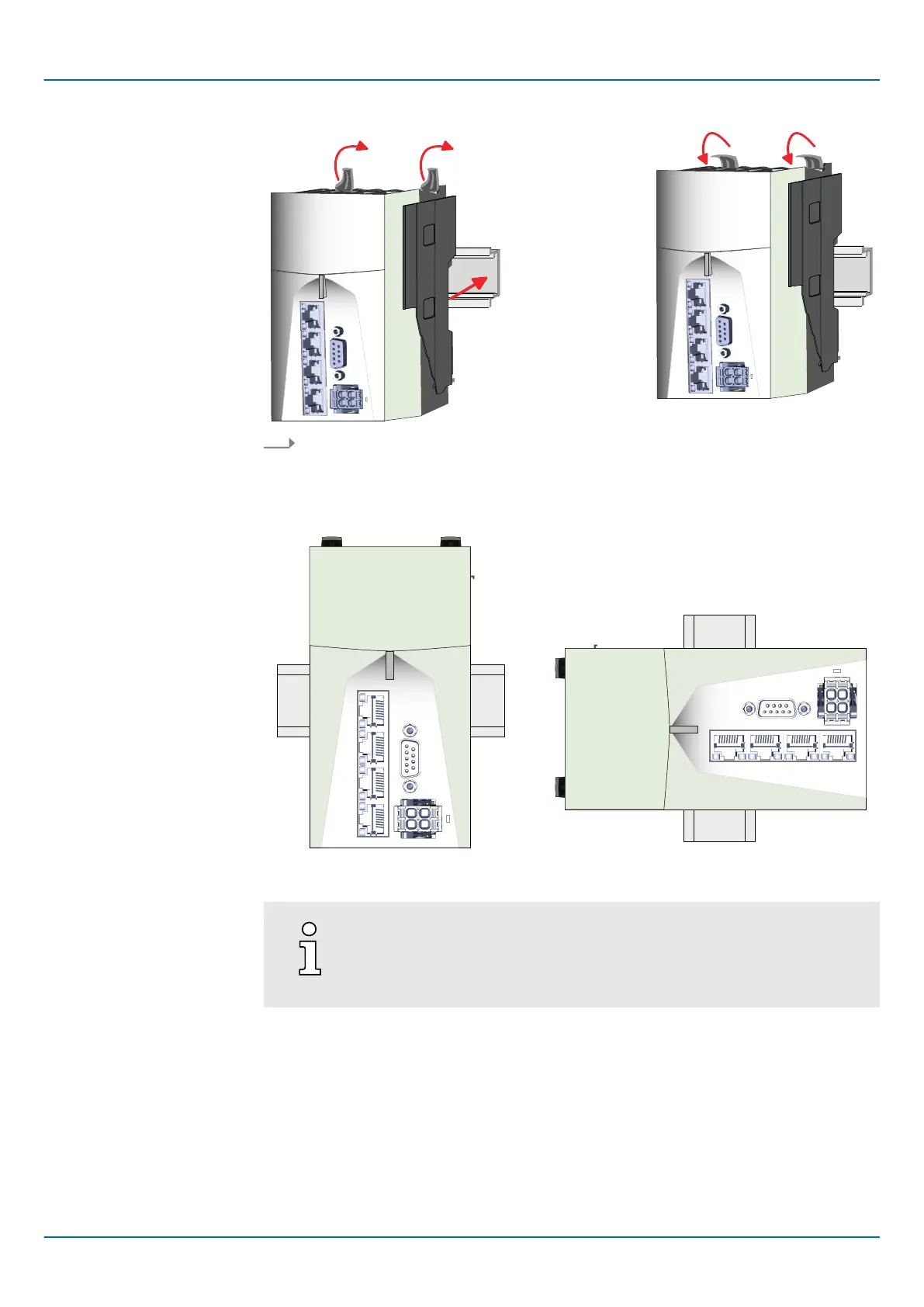

Assembly possibilities
2. Turn the locking lever upwards, place the CPU at the mounting rail and turn the
lever downward.
🡆 If you want to use the CPU without periphery modules, you can wire it now.
Horizontal hanging or vertical hanging:
2.4.2 Mounting periphery modules
When using System SLIO modules, you must always mount the power
module 007-1AB00 - DC 24V 10A, because the CPU does not provide a
power section supply due to the system.
