HB700 | CPU | PMC921xEx | en | 24-04 31
Functional principle
Proceeding

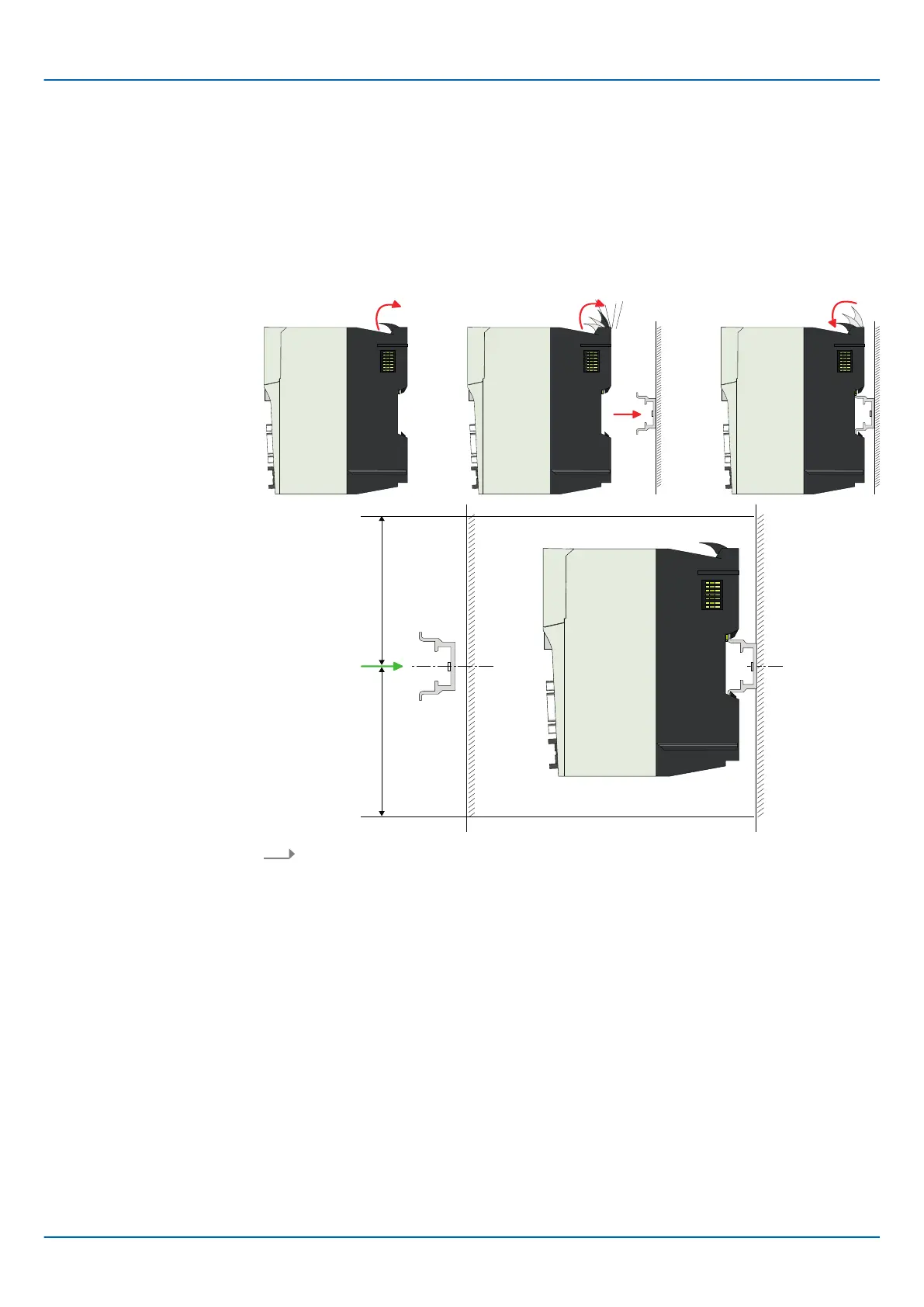

2.4.1 Mounting CPU
There are locking lever at the top side of the CPU. For mounting and demounting
these locking lever are to be turned upwards until these engage. Place the CPU at the
mounting rail. The CPU is fixed to the mounting rail by pushing downward the locking
levers. The CPU is directly mounted at a mounting rail. Up to 64 System SLIO modules
may be mounted. The electronic power supply for the modules is connected via the
connection to the backplane bus. The power module 007-1AB00 must always be installed
for the power section supply of the modules.
1. Mount the mounting rail! Please consider that a clearance from the middle of the
mounting rail of at least 105mm above and below exists.
