HB700 | CPU | PMC921xEx | en | 24-04 47
iC9200 Series
Basics and mounting

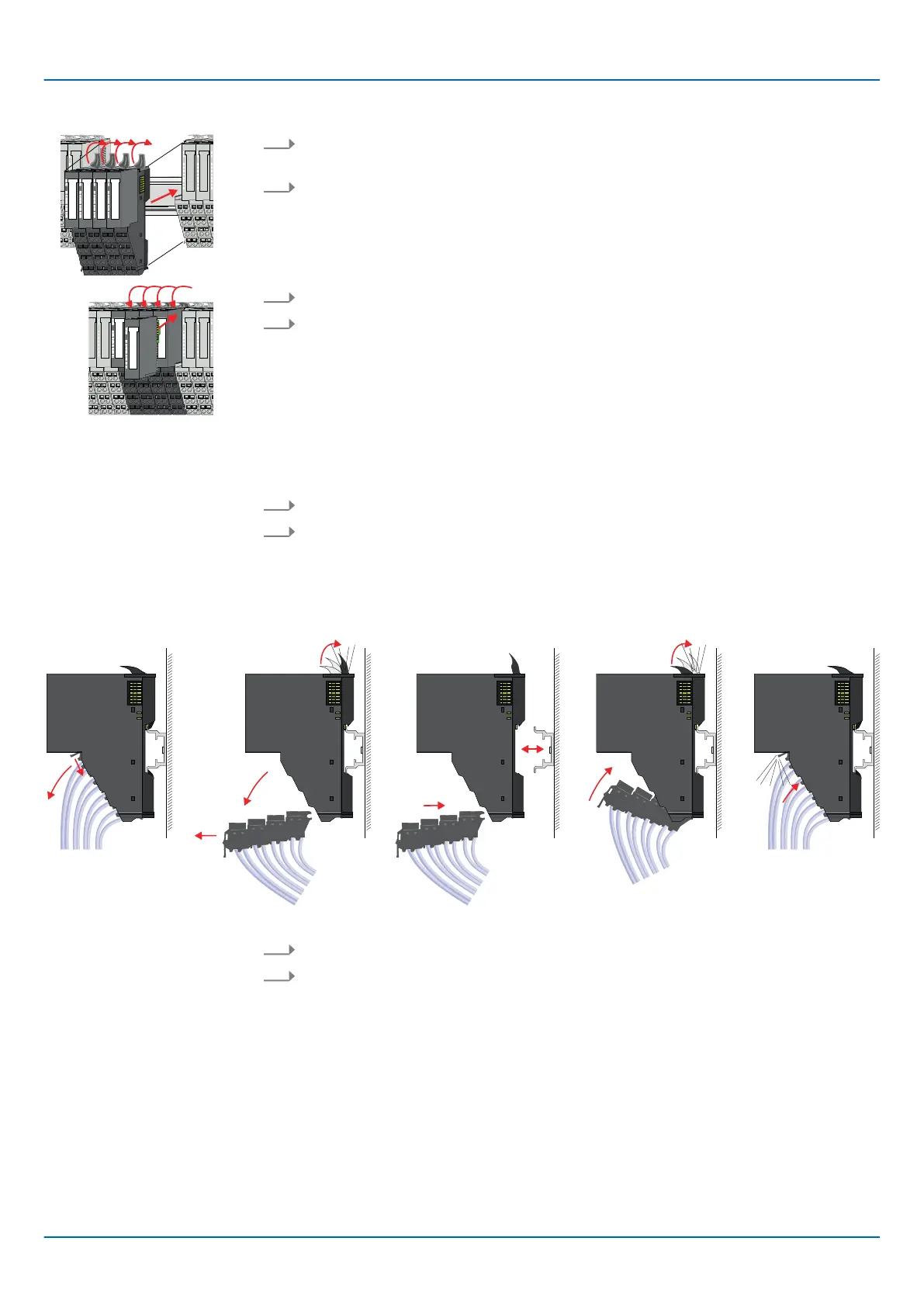

Demounting > Demounting 16x periphery modules
Proceeding
Exchange of an electronic
unit
Exchange of a 16x periphery
module
7. To mount the module group put it to the gap between the both modules and push it,
guided by the stripes at both sides, to the mounting rail.
8. Turn all the locking lever downward, again.
9. Plug again the electronic module, which you have removed before.
10. Wire your module group.
🡆 Now you can bring your system back into operation.
2.6.3 Demounting 16x periphery modules
1. Power-off your system.
2. To replace an electronic unit, you can push down and pull off the terminal block after
releasing the lock.
T
o mount the terminal block, place it horizontally on the lower side of the electronic
unit and push it towards the electronic unit until it clicks into place.
🡆 Now you can bring your system back into operation.
Clack
1
2
Clack
Clack
1. Power-off your system.
2. Remove if exists the wiring of the module respectively the wired terminal block.
