HB700 | CPU | PMC921xEx | en | 24-04 45
iC9200 Series
Basics and mounting
Demounting > Demounting 8x periphery modules
Proceeding
Exchange of an electronic
module
Exchange of a periphery
module
11. Reconnect the connector of the power supply.
12. Now you can bring your system back into operation.
2.6.2 Demounting 8x periphery modules
1. Power-off your system.

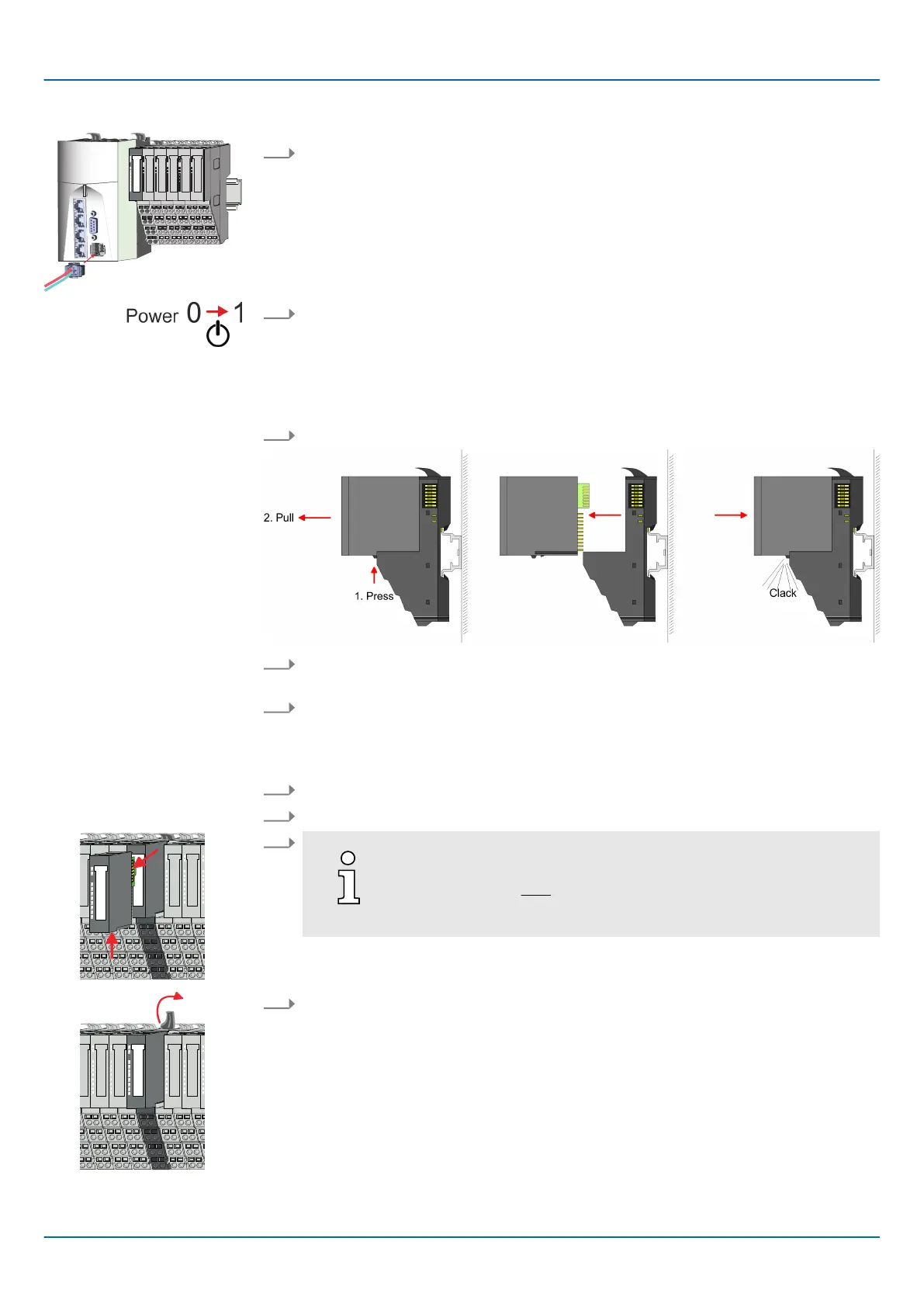

2. For the exchange of a electronic module, the electronic module may be pulled
forward after pressing the unlocking lever at the lower side of the module.
3. For installation plug the new electronic module guided by the strips at the lower side
until this engages to the terminal module.
🡆 Now you can bring your system back into operation.
1. Power-off your system.
2. Remove if exists the wiring of the module.
3.
For demounting and exchange of a (head) module or a group of
modules, due to mounting reasons you always have to remove the
electronic module right beside. After mounting it may be plugged
again.
Press the unlocking lever at the lower side of the just mounted right module and pull
it forward.
4. Turn the locking lever of the module to be exchanged upwards.
