9 Bit 9 is set when a high-priority maintenance demand is pending.
■ The PROFINET device has transmitted a high-priority maintenance request (maintenance alarm).
– Please check the diagnosis of the PROFINET device and, if necessary, contact the vendor of the
PROFINET device.
10 Bit 10 is set if a vendor- or channel-specific diagnosis is pending.
■ The PROFINET device has transmitted a vendor- or channel-specific diagnosis.
– Please check the diagnosis of the PROFINET device and, if necessary, contact the vendor of the
PROFINET device.
6.3.6 SliceBus
Here you will find information on the backplane bus and the connected modules.
SliceBus
Diagnostics
Information
Configuration
Security
Administration
iC92...
PMC92...
Diagnostics
Axis Grid
EtherCAT
Motion Alarms
Notifications
Profinet
SliceBus
SliceBus Modules

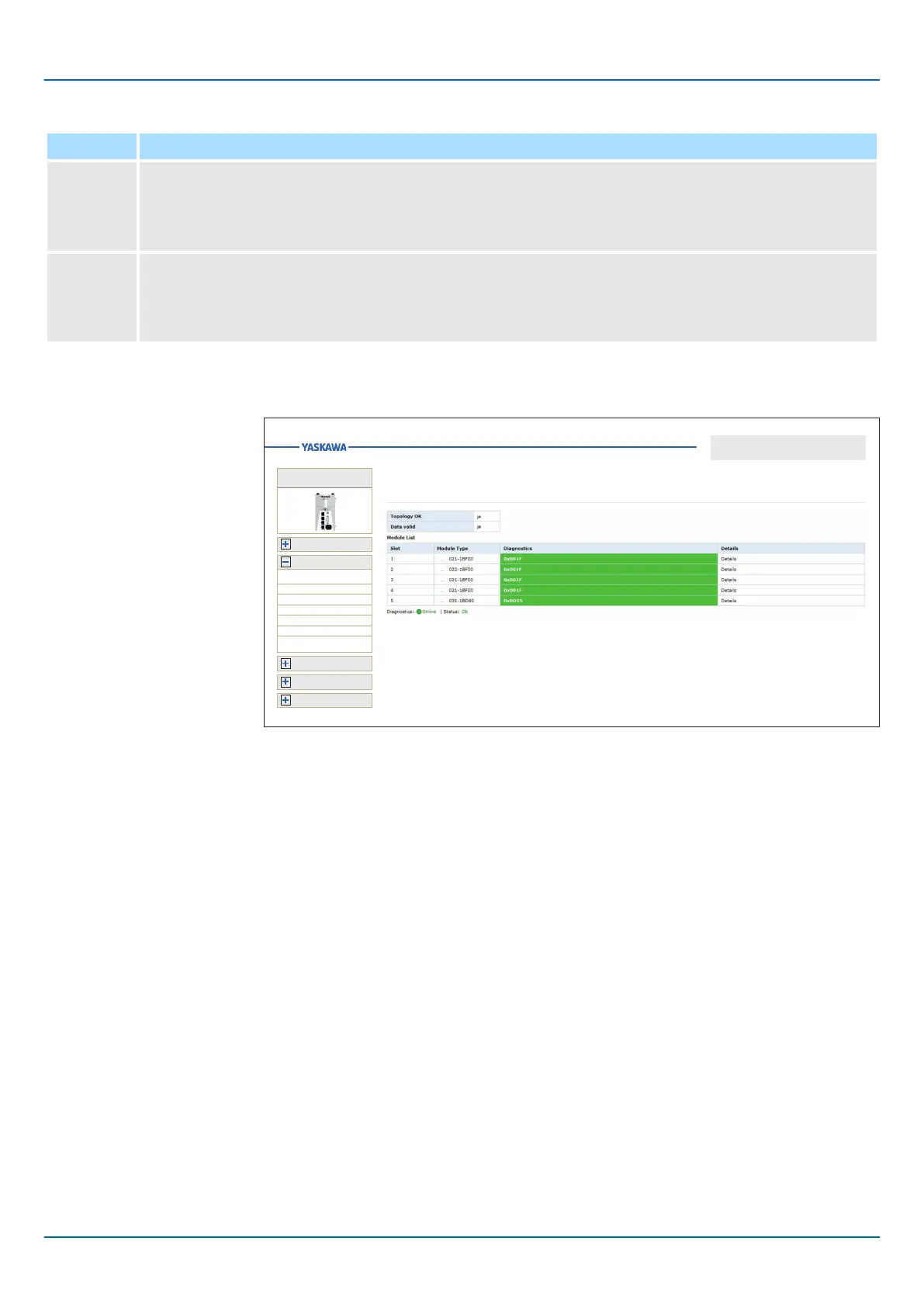

■ Topology OK
– The topology is correct if the configured and existing modules are identical.
■ Data valid
– If the data from the backplane bus were transmitted without errors, these are valid.
■ Module List
– The connected modules and the first 2 bytes of the diagnostic data are listed here.
Y
ou can find more detailed diagnostic information at ‘Details’.
6.3.7 SliceBus Modules
Here you will find detailed information on the diagnoses of the connected modules. The
content is dynamically structured and depends on the number of modules on the CPU.
