Mounting > Mounting periphery modules
Mounting power module
007-1AB00
Mounting periphery modules

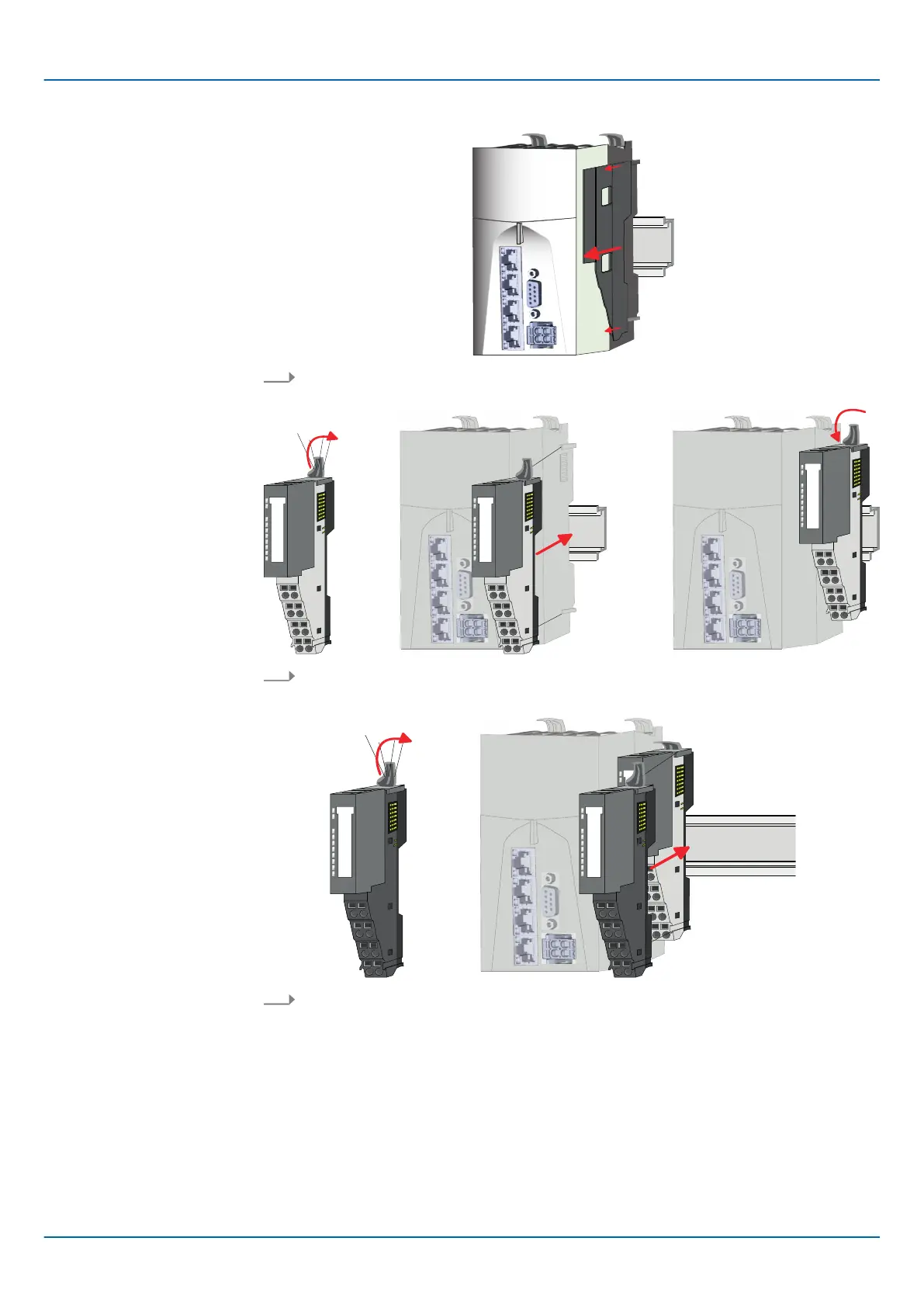

1. Before mounting the periphery modules you have to remove the bus cover at the
right side of the CPU by pulling it forward. Keep the cover for later mounting.
Clack
2. Mount the periphery modules you want.
The procedure is identical for 8x and 16x periphery modules.
Clack
1. Mount the periphery modules you want.
