36 HB700 | CPU | PMC921xEx | en | 24-04
Wiring > Wiring System SLIO periphery
Terminal module terminals
Data
Wiring proceeding
2.5.2.1 Wiring power module
With the power module, terminals with spring clamp technology are used for wiring.
The spring clamp technology allows quick and easy connection of your supply lines. In
contrast to screw terminal connections this type of connection is vibration proof.
U
max
30V DC
I
max
10A
Cross section 0.08 ... 1.5mm
2
(A
WG 28 ... 16)

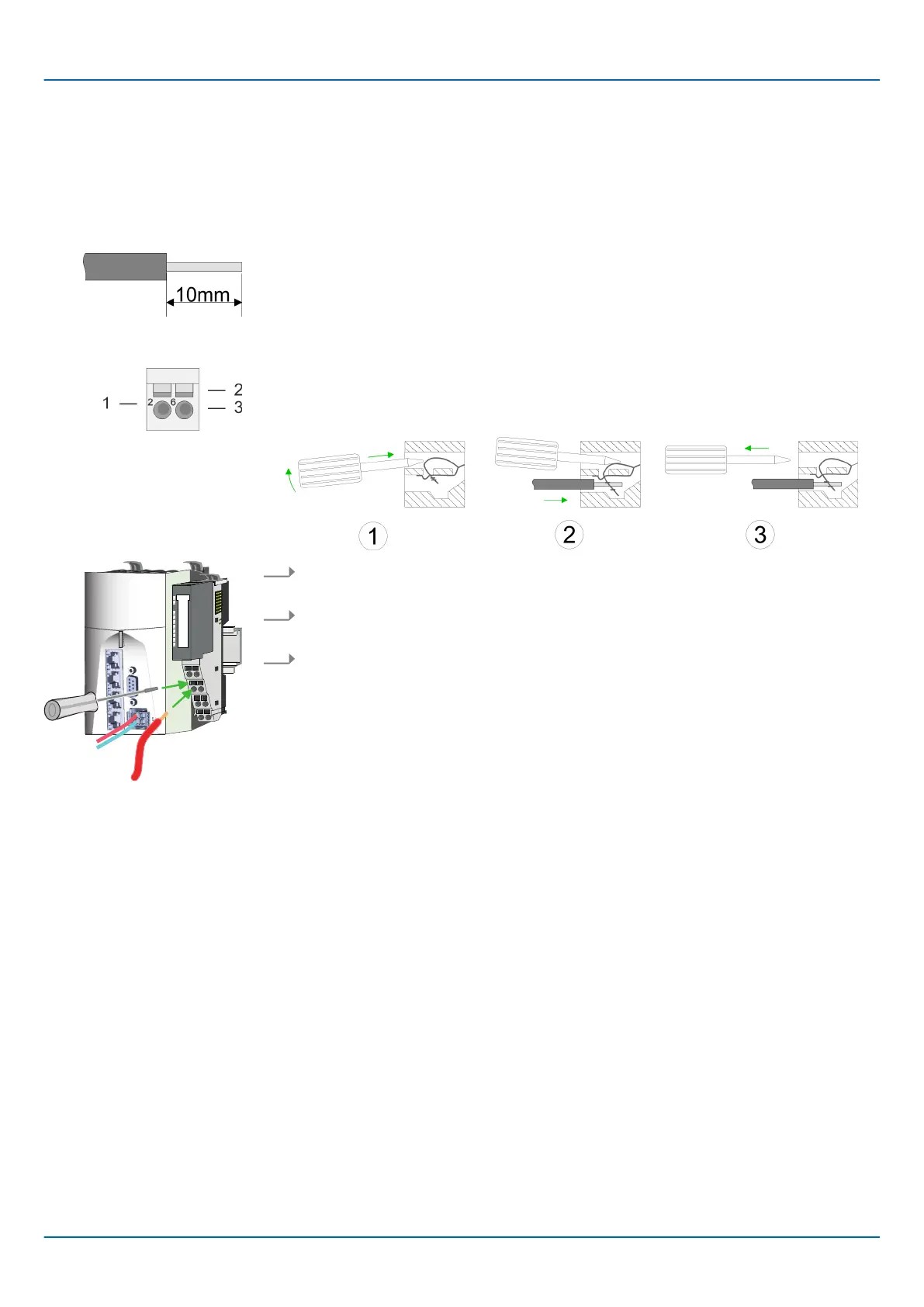

Stripping length 10mm
1 Pin no. at the connector
2 Opening for screwdriver
3 Connection hole for wire
1. Insert a suited screwdriver at an angel into the square opening as shown. Press and
hold the screwdriver in the opposite direction to open the contact spring.
2. Insert the stripped end of wire into the round opening. You can use wires with a
cross section of 0.08mm
2
up to 1.5mm
2
.
3. By removing the screwdriver, the wire is securely fixed via the spring contact to the
terminal.
