Wiring > Wiring System SLIO periphery
Power module 007-1AB00
Power module 007-1AB10
DC 24V
SysDC5V
...
...
DC 24V
0V
DC24V
0V
DC24V
2 2
0V
DC24V
0V
DC24V
1
2

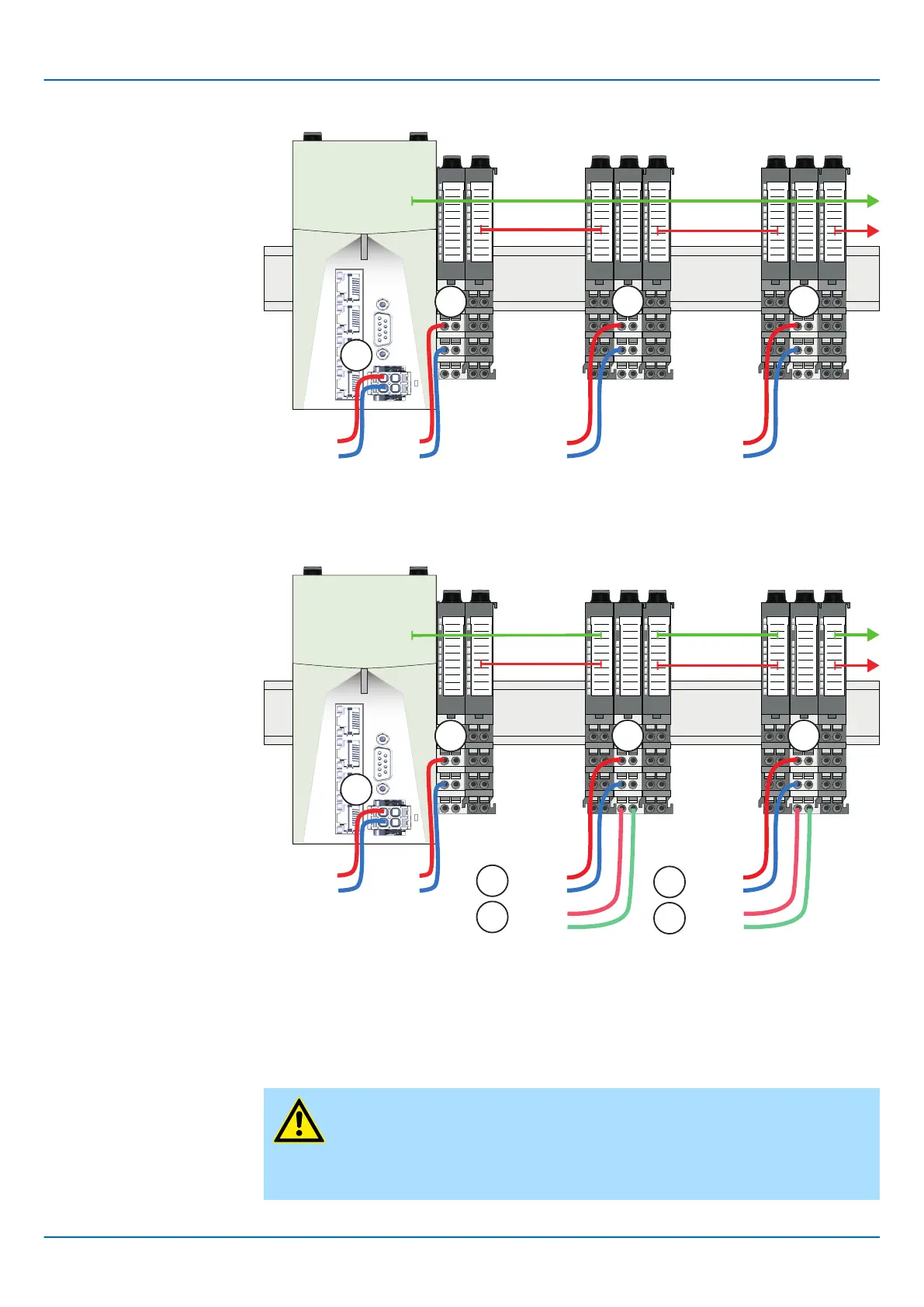

(1) DC 24V supply CPU:
DC 5V electronic section supply I/O area (max. 2A)
(2) Power module 007-1AB00:
DC 24V power section supply (max. 10A)
DC 24V
SysDC5V
SysDC5V
... ...
DC 24V
0V
DC24V
0V
DC24V
0V
DC24V
0V
DC24V
3
4
5
4
5
3
0V
DC24V
0V
DC24V
1
2
(1) DC 24V supply CPU:
DC 5V electronic section supply I/O area (max. 2A)
(2) Power module 007-1AB00:
DC 24V power section supply (max. 10A)
(3) Additional power module 007-1AB10:
(4) DC 24V power section supply (max. 4A)
(5) DC 5V electronic section supply I/O area (max. 2A)
CAUTION
Since the power section supply is not internally protected, it is to be exter-
nally protected with a fuse, which corresponds to the maximum current. This
means max. 10A is to be protected by a 10A fuse (fast) respectively by a line
circuit breaker 10A characteristics Z!
