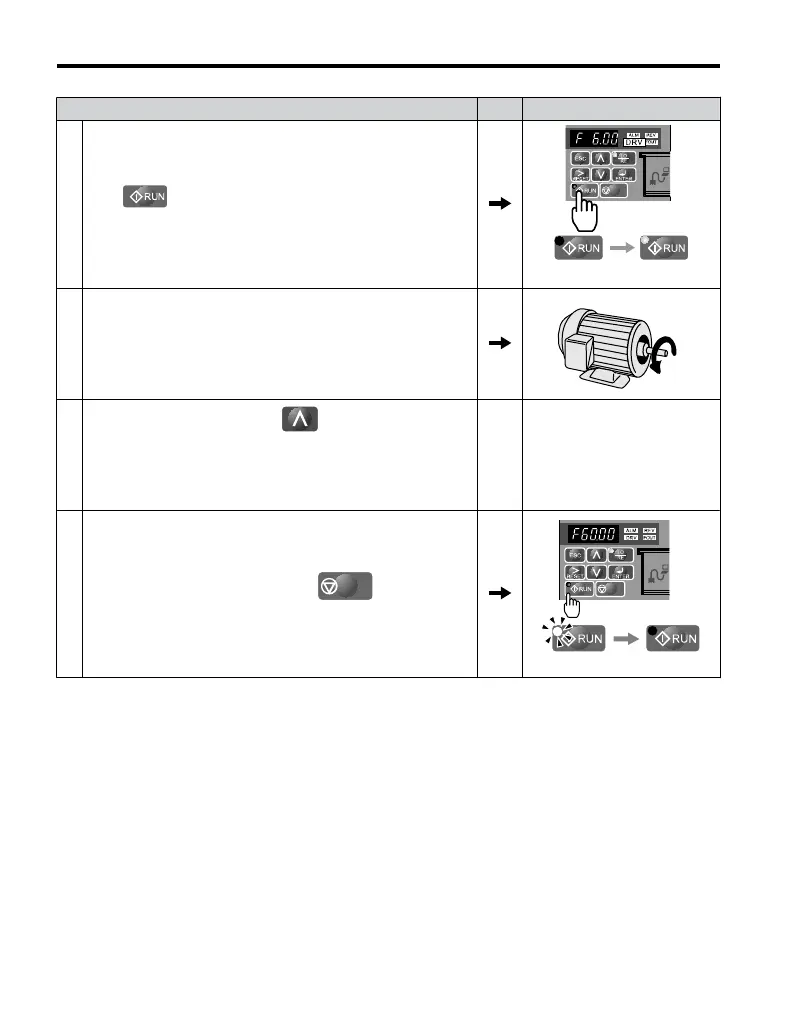

Step Display/Result
3.
Press to give the drive a Run command. RUN will light and
the motor will rotate at 6 Hz.
STOP
Off On
4.
Ensure the motor is rotating in the correct direction and no faults or
alarms occur.
Motor
Forward
5.
If there is no error in step 4, press to increase the frequency
reference. Increase the frequency in 10 Hz increments verifying
smooth operation results at all speeds. For each frequency, monitor
the drive output current (U1-03) through the LED operator to confirm
the current is well below the motor rated current. Example: 6 Hz →
60 Hz.
6.
The drive should operate normally. Press
STOP
to stop the motor.
RUN flashes until the motor comes to a complete stop.
STOP
Flashing Off
4.8 No-Load Operation Test Run
124
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
