Single-Phase AC200 V CIMR-VoBA0006B ~ 0018B
Three-Phase AC200 V CIMR-Vo2A0010B ~ 0020B
Three-Phase AC400 V CIMR-Vo4A0001B ~ 0011B
A
B
C
D
E
F
G
H
I
J
M
K
L
A –
Fan cover
<1>
B – Mounting hole
C – Heatsink
D – Optional 24 V DC power
supply connector cover
E – Comm port
F – Terminal board Refer to
Control Circuit Terminal
Block Functions on page
66
G – Front cover screw
H – Front cover
I – Terminal cover
J – Bottom cover
K – LED operator Refer to
Using the Digital LED
Operator on page 82
L – Case
M –
Cooling fan
<1>

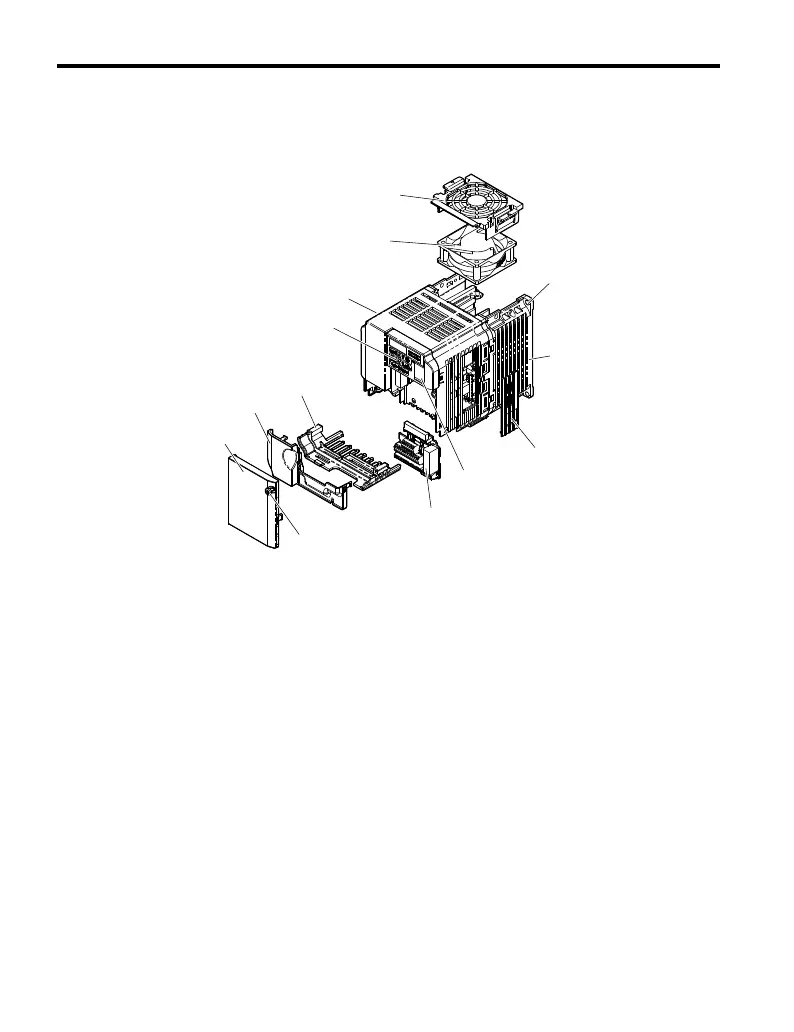

Figure 1.3 Exploded view of IP20/Open-Chassis Type Components
Three-Phase AC200 V CIMR-Vo2A0012B
<1> The drives CIMR-VoBA0006B and CIMR-Vo4A0001B ~ 0004B do not have a cooling fan
or a cooling fan cover. The drive CIMR-VoBA0018B has two cooling fans.
1.2 Component Names
32
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
