A
B
A – Conduit bracket B – Terminal cover

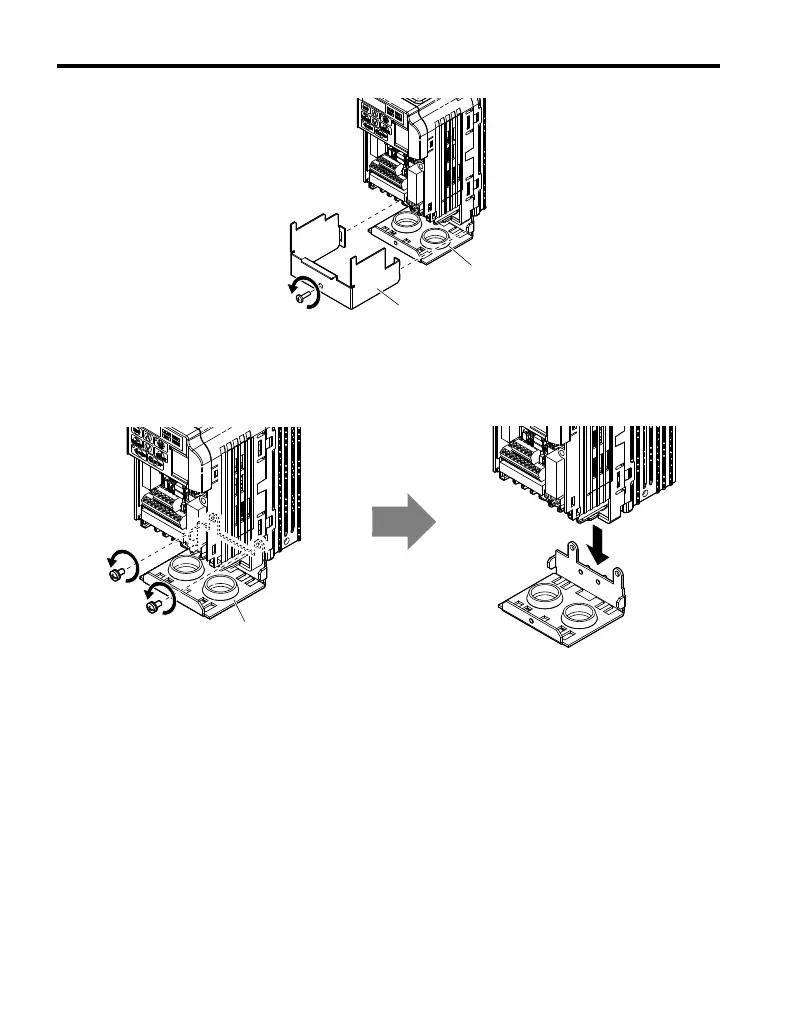

Figure 3.8 Remove the Terminal Cover on an IP20/NEMA Type 1 Drive
3.
Loosen two screws attaching the conduit bracket to remove.
A
A – Conduit bracket
Figure 3.9 Remove the Conduit Bracket on an IP20/NEMA Type 1 Drive
3.3 Protective Covers
56
