Preparing wire
terminal ends
E
A
B
D
C
A – Control terminal block
B – Avoid fraying wire
strands when stripping
insulation from wire.
Strip length 5.5 mm.
C – Single wire or stranded
wire
D – Loosen screw to insert
wire.
E – Blade depth of 0.4 mm or
less
Blade width of 2.5 mm or
less

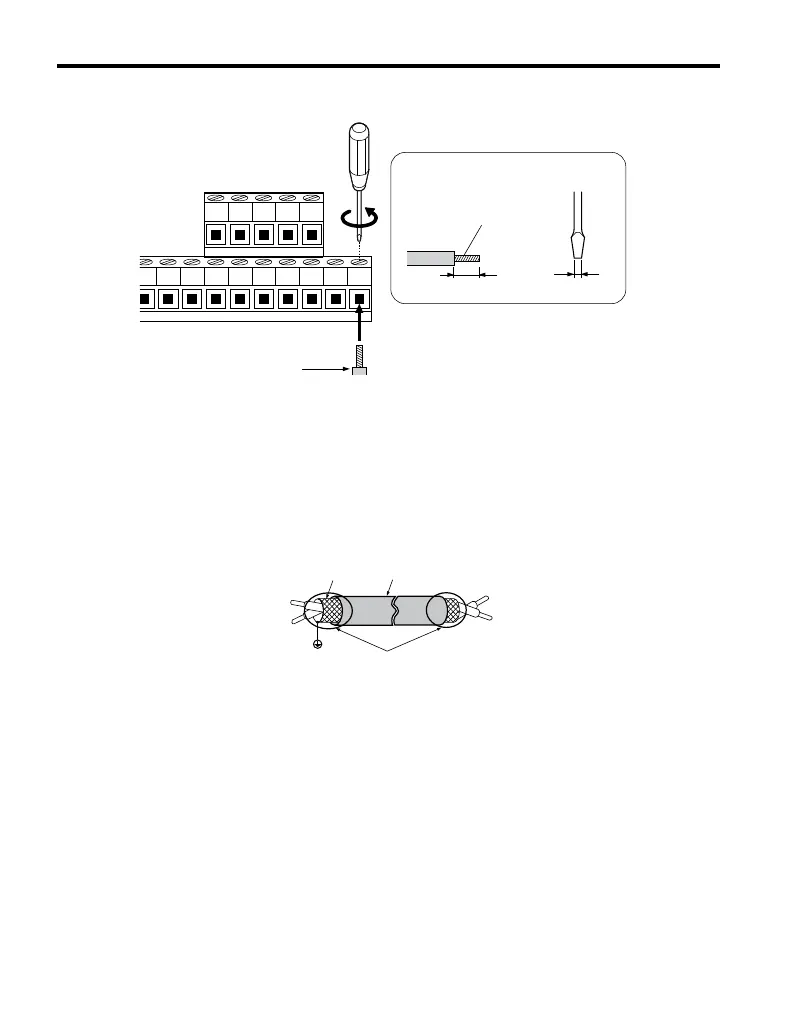

Figure 3.17 Terminal Board Wiring Guide
A
F
C
D
E
B
A – Drive side
B – Connect shield to ground
terminal of drive.
C – Insulation
D – Control device side
E – Shield sheath (Insulate
with tape)
F – Shield
Figure 3.18 Preparing the Ends of Shielded Cables
3.5 Control Circuit Wiring
72
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
