YOKOGAWA FLXA402T User Manual

<2. Screens>
2-1
IM 12A01G01-03EN 1st Edition : Mar. 25, 2021-00
2. Screens
n Screens
l Home screen
Home screen displays the multiple sensor measurement status on a single page. See section
2.1.

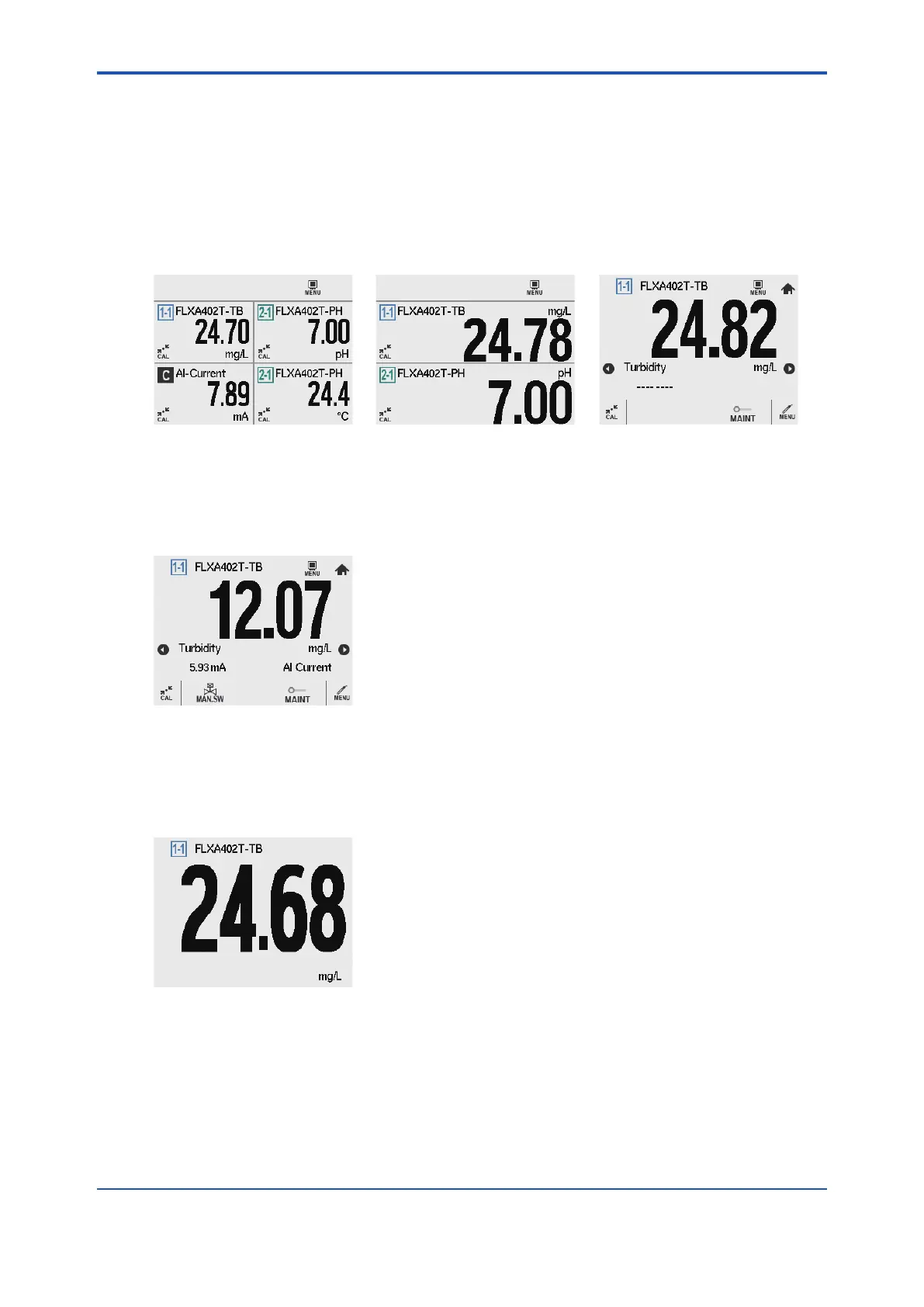

Figure 2.1 Sample image of Home screen
l Main screen
Main screen displays a process status of one sensor connection on a single page. See section
2.2.
Figure 2.2 Sample image of Main screen
l Monitor screen
Monitor screen zooms in a process status of one sensor connection, showing one item of
measurement value. See section 2.3.
Figure 2.3 Sample image of Monitor screen
