<2. Screens>
2-2
IM 12A01G01-03EN 1st Edition : Mar. 25, 2021-00
l Detail
“Detail” provides graphic displays of multiple output status. See 3.1
See each corresponding manual for information on sensor detail screen.

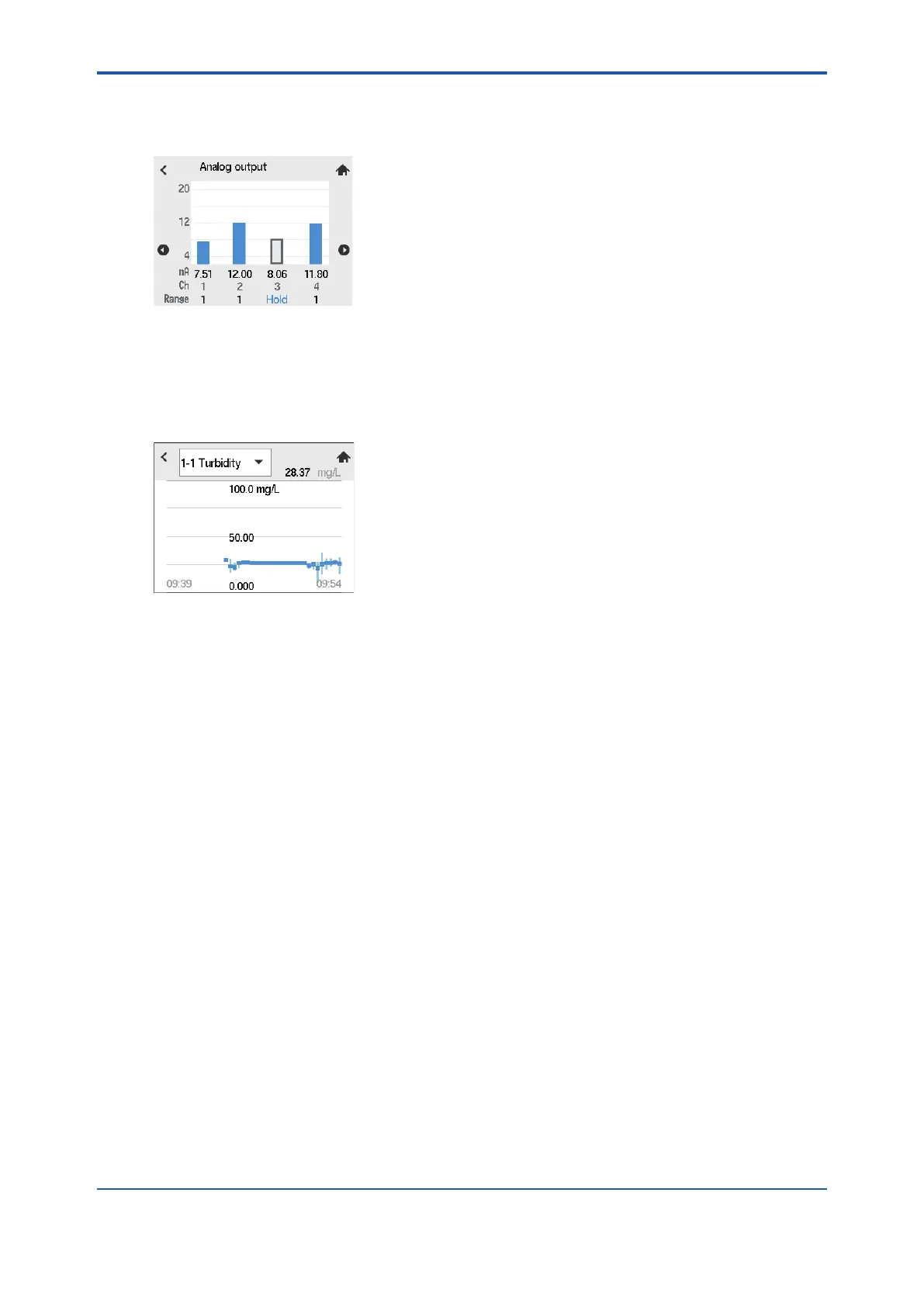

Figure 2.4 Sample image of Detail
l Trend
“Trend” displays a trend chart that shows the progress of some value over a certain period of
time.
Figure 2.5 Sample image of Trend
