4-11
IM DL850E-01EN

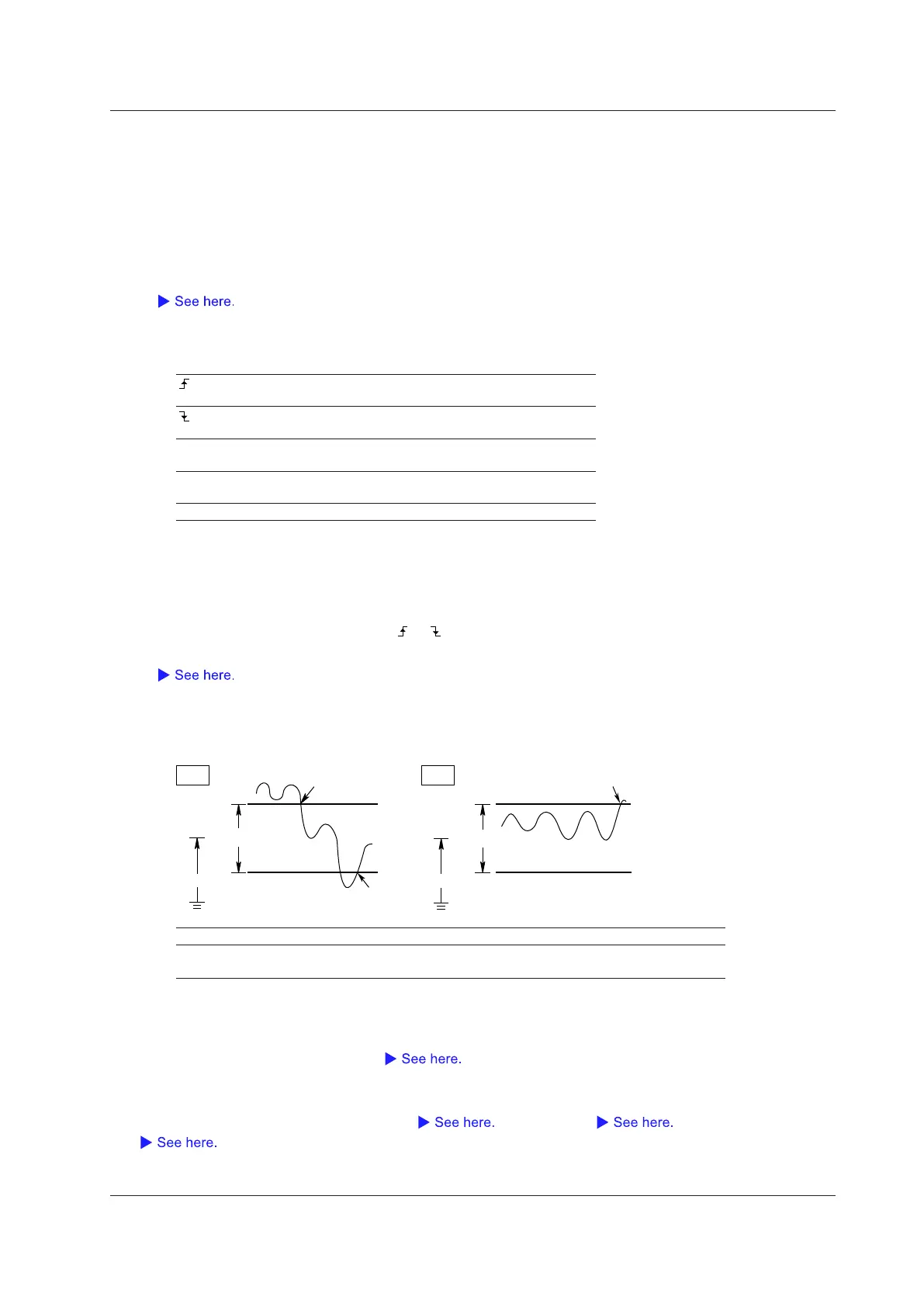

OR Trigger (Enhanced)
The DL850E/DL850EV triggers on the OR of multiple trigger source edges.
Trigger Source
You can use CH1 to CH16, Ext
*
, and Bit 1 to Bit 8 as the trigger sources. Bit 1 to Bit 8 appear as options when
a logic input module is installed in a slot. Select External to use the signal that is received through the left-panel
TRIG IN input terminal as the trigger source.
*
The signal that is received through the left-panel TRIG IN input terminal as the trigger source.
Edge Detection Condition (Edge)
Set the conditions for detecting each trigger source edge.
An edge is detected when the trigger source changes from a level
below the trigger level to a level above the trigger level (rising).
An edge is detected when the trigger source changes from a level
above the trigger level to a level below the trigger level (falling).
IN An edge is detected when the trigger source enters the specified
level range.
OUT An edge is detected when the trigger source leaves the specified
level range.
The signal is not used as a trigger condition.
* IN and OUT are selectable only when the trigger source is an analog signal (CH1 to CH16).
Trigger Level (Level)
Set these items for each trigger source.
When the Edge Detection Condition Is
or
Set the level used to detect the trigger source’s rising or falling edge.
When the Edge Detection Condition Is IN or OUT
An edge is detected when the trigger source enters (IN) or leaves (OUT) the specified level range. You can
specify the level range settings for each analog signal trigger source.
Width (Width)
Edge detection
OUT
Edge detection
IN
Edge detection
Level
Width (Width)
Level
Setting Selectable Range Resolution
Level (center value)
Same as the trigger level
Width (Width)
Trigger Hysteresis (Hys)
Set this item for each trigger source.
This item is the same as the hysteresis
of the simple trigger.
Trigger Hold-Off (Hold Off), Trigger Position (Position), Trigger Delay (Delay)
These items are the same as trigger hold-off , trigger position , and trigger delay
of the simple trigger.
4 Triggering
