Bandwidth (Bandwidth)
You can specify a bandwidth limit for each module. You can use bandwidth limits to observe input signal
waveforms with their noise components removed.
Normal Bandwidth Limits
You can remove high-frequency components from the input signal. The bandwidth limits vary as shown below
depending on the input module.
Input Module Bandwidth Limit
701250 (HS10M12)
701255 (NONISO_10M12)
500 Hz, 5 kHz, 50 kHz, 500 kHz, Full
701251 (HS1M16) 400 Hz, 4 kHz, 40 kHz, Full
701267 (HV (with RMS)) 100 Hz, 1 kHz, 10 kHz, Full
720210 (HS100M12) 10 kHz, 20 kHz, 40 kHz, 80 kHz, 160 kHz,
320 kHz, 640 kHz, 1.28 MHz, 2 MHz, Full
720220 (16CH VOLT) 500 Hz, Full
701261 (UNIVERSAL)
1
701262 (UNIVERSAL (AAF))
1
701265 (TEMP/HPV)
2 Hz, 8 Hz, 30 Hz, Full
701270 (STRAIN_NDIS)
701271 (STRAIN_DSUB)
10 Hz, 100 Hz, 1 kHz, Full
701261 (UNIVERSAL)
2
701262 (UNIVERSAL (AAF))
701275 (ACCL/VOLT)
40 Hz, 400 Hz, 4 kHz, Auto, Full
701280 (FREQ)
3
100 Hz, 1 kHz, 10 kHz, 100 kHz, Full
1 When measuring temperature.
2 When measuring voltage. Auto cannot be selected on the 701261.
3 Full cannot be selected when Preset is set to AC100V or AC200V.

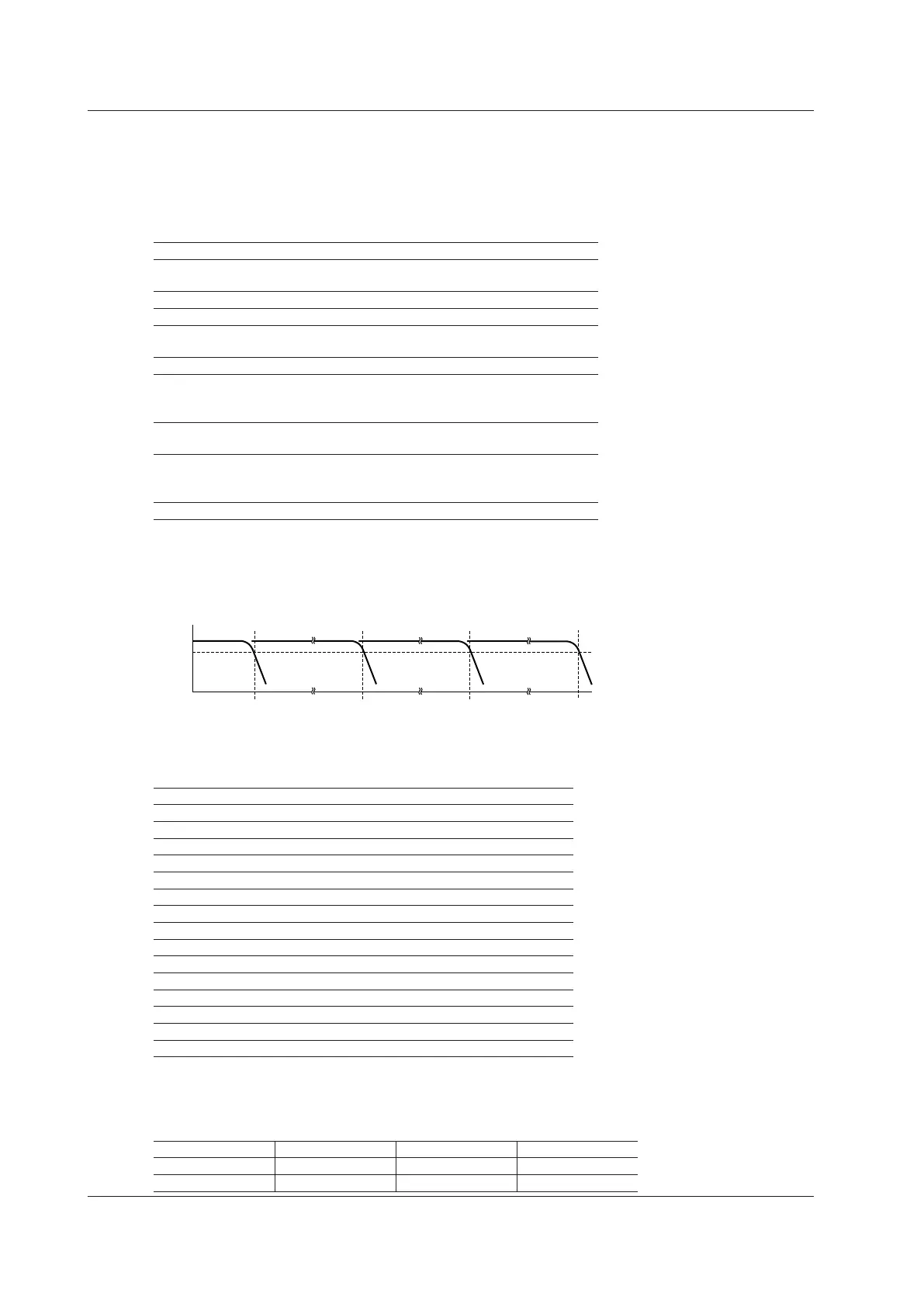

For example, on the 701251 (HS1M16), you can set the bandwidth limit to 400 Hz, 4 kHz, or 40 kHz. The
frequency characteristics for the different bandwidth limits are shown below. If you select Full, the module’s
maximum bandwidth is used.
–3 dB
Approx. 400 Hz Approx. 40 kHzApprox. 4 kHz FULL
Bandwidth Limitation on the 701262 (UNIVERSAL (AAF)) and the 701275 (ACCL/VOLT)
When you are measuring voltage using the 701262 (UNIVERSAL (AAF)) or when you are using the 701275
(ACCL/VOLT) and the bandwidth is set to Auto, the anti-aliasing and low-pass filter settings vary as shown below
depending on the sample rate.
Sample Rate Anti-Aliasing Filter Low-Pass Filter
200 kS/s or greater 40 kHz OFF
100 kS/s 40 kHz OFF
50 kS/s 20 kHz OFF
20 kS/s 8 kHz OFF
10 kS/s 4 kHz 4 kHz
5 kS/s 2 kHz 4 kHz
2 kS/s 800 Hz 4 kHz
1 kS/s 400 Hz 400 Hz
500 S/s 200 Hz 400 Hz
200 S/s 80 Hz 400 Hz
100 S/s 40 Hz 40 Hz
50 S/s 20 Hz 40 Hz
5 S/s to 20 S/s 20 Hz 40 Hz
2 S/s or less 20 Hz 40 Hz
Ext sample 40 kHz OFF
For example, when the sample rate is between 100 kS/s and 50 kS/s, the cutoff frequency of the anti-aliasing
filter is 40% of the sample rate.
Bandwidth Limit on the 720221 (16CH TEMP/VOLT)
The bandwidth limits vary depending on the set data update period.
Data Update Period Bandwidth Limit Data Update Period Bandwidth Limit
100 ms 600 Hz 1 s 50 Hz
300 ms 200 Hz 3 s 10 Hz
