15 Searching Waveforms
You can search the displayed waveforms for locations that match the specified conditions. You can zoom-in on
the detected locations. You can search the waveforms within the specified search range over up to 2 Gpoint.

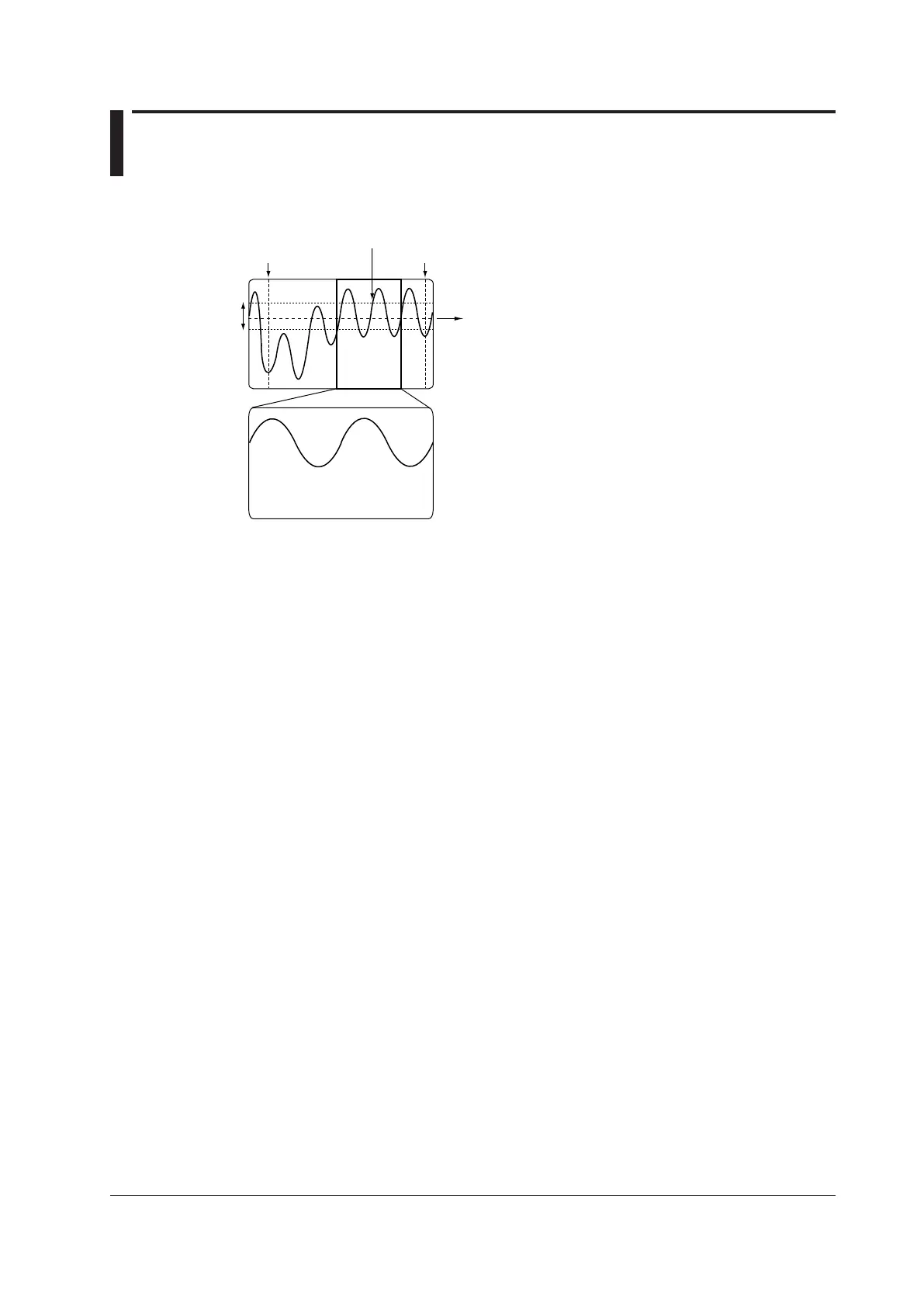

Specified level
Detected section is displayed
expanded in the zoom window.
Search start point
Point of detection
Search condition: Two rising edges
Hysteresis
Search end point
Search Type (Type)
Set the search type to one of the options below.
• Edge: The DL850E/DL850EV searches for edges.
• Event: The DL850E/DL850EV searches for an event.
• Logic Pattern:
The DL850E/DL850EV searches for logic patterns. This setting is valid only for logic signals.
• Time
: The DL850E/DL850EV searches for a time.
