6-1
IM DL850E-01EN
6 Display
Window Types (DISPLAY)
The DL850E/DL850EV has the following types of windows.
T-Y (Time axis) Waveform Display Window
• Main window
Displays normal waveforms, which are not magnified
• Zoom window (Zoom1 and Zoom2)
Displays zoomed waveforms according to the settings specifie
d using the ZOOM key
X-Y Window (Window 1 and Window 2)
Displays X-Y waveforms according to the settings specified using the X-Y key
FFT Window (FFT1 window and FFT 2 window)
Displays FFT waveforms according to the settings specified using the FFT key
Dual Capture Window
Appears when the dual capture feature is used
Extra Window
This window displays cursor-measurement values, automated measurement values of waveform parameters,
and so on. It can be used when values overlap with waveforms and are difficult to see.
Switching the Menu Area Display
You can switch between the full-screen waveform display, the channel information display, and the waveform
numeric-monitor display.

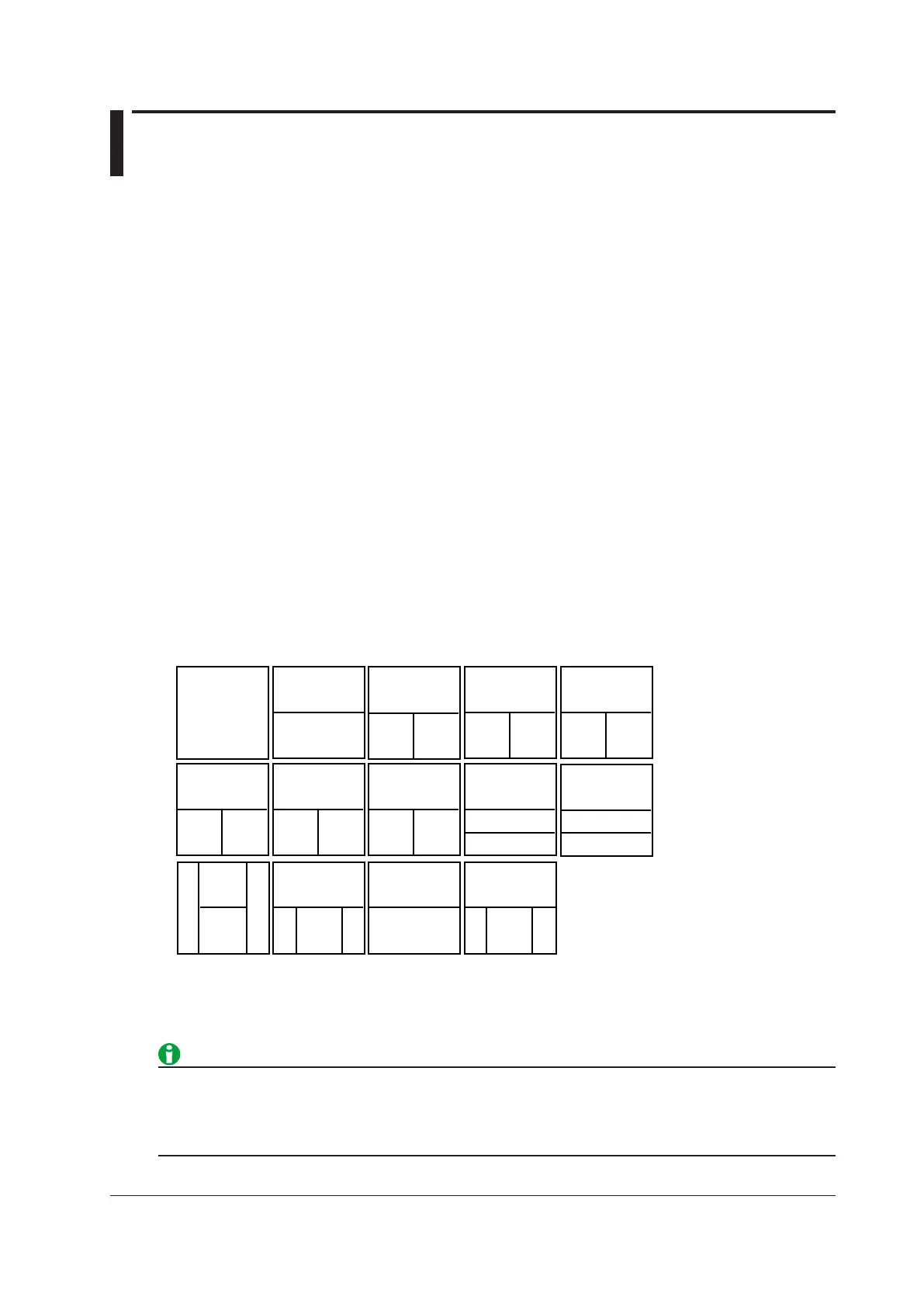

Display Pattern Examples
The main display patterns are shown in the figure below.
<Main>
<Z2><Z1>
<Main>,
<Z1>, <Z2>,
<W1>, <W2>,
<FFT 1>, or
<FFT 2>
<Z1>, <Z2>, <W1>,
<W2>, <FFT 1>,
or
<FFT 2>
<Main>
<Main>
<Z2>
<Z1>
<Main>
<Z1> or <Z2>
<FFT 1> or <FFT 2>
<Z1>
or
<Z2>
<FFT 1>
or
<FFT 2>
<FFT 1>
or
<FFT 2>
<Z1>
or
<Z2>
<Main>
<
W
1>
or
<
W
2>
<
W
1>
or
<
W
2>
<Main>
<W1> <W2> <FFT 1> <FFT 2>
<
W
1>
or
<
W
2>
<FFT 1>
or
<FFT 2>
<Main>
<Z1>
or
<Z2>
<FFT 1>
or
<FFT 2>
<Z1>
or
<Z2>
<Main>
<
W
1>
or
<
W
2>
<Main>
<
W
2>
<
W
1>
• Zoom1 and Zoom2 are abbreviated to Z1 and Z2.
• You can create patterns in which the main window is not displayed.
• The dual capture window is also displayed as shown in the patterns above.
Under the following conditions, a total of 64 waveforms can be displayed on the main, Zoom1, and Zoom2
windows.
Trigger mode: Auto
TIME/DIV: 100 ms/div or 200 ms/div
To Next Page
